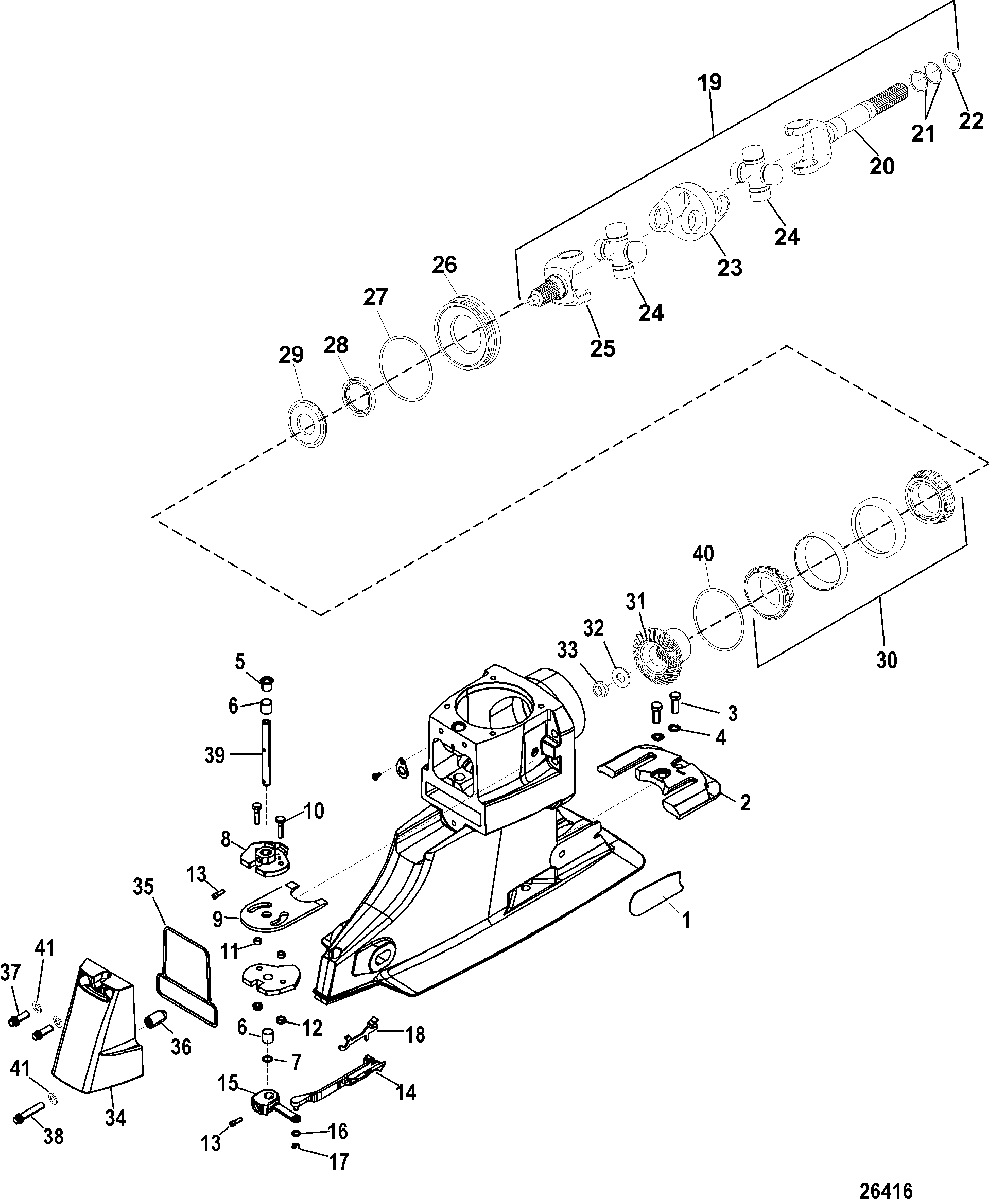

Universal Joint and Shift Components для Mercruiser - BRAVO X TWO 0W250000 & Up
-
№АртикулНазвание
-
NS1589-865440H66 HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 and 1.81:1 Ratio)(Bravo-III 1.36:1 and 1.81:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 and 1.81:1 Ratio)(Bravo-III 1.36:1 and 1.81:1 Ratio) -
NS1500-866459J01 HOUSING ASSEMBLY, Driveshaft - Complete
(SEACORE)(Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 and 1.81:1 Ratio)(Bravo-III 1.36:1 and 1.81:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(SEACORE)(Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 and 1.81:1 Ratio)(Bravo-III 1.36:1 and 1.81:1 Ratio) -
NS1589-865440H67 HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 and 2.0:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 and 2.0:1 Ratio) -
NS1500-866459J02 HOUSING ASSEMBLY, Driveshaft - Complete
(SEACORE)(Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 and 2.0:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(SEACORE)(Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 and 2.0:1 Ratio) -
NS1589-865440H68 HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 and 2.43:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 and 2.43:1 Ratio) -
NS1500-866459J03 HOUSING ASSEMBLY, Driveshaft - Complete
(SEACORE)(Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 and 2.43:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(SEACORE)(Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 and 2.43:1 Ratio) -
-1589-865440H70 HOUSING, Driveshaft - Basic, BasicHOUSING, Driveshaft - Basic, Basic
-
-1500-866459J00 HOUSING, Driveshaft - BasicHOUSING, Driveshaft - Basic
-
1805261A1 WEAR PAD KITWEAR PAD KIT
-
297-821630Q1 ANODE ASSEMBLYANODE ASSEMBLY
-
310-65210 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
413-35479 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
519-865866 PLUG, Shift Shaft Oil SealPLUG, Shift Shaft Oil Seal
-
623-861209A1 BUSHING KITBUSHING KIT
-
726-127091 SEALSEAL
-
8806552A1 YOKE AND CAM ASSEMBLYYOKE AND CAM ASSEMBLY
-
9806552 YOKE, ShifterYOKE, Shifter
-
1010-805733 SCREW, (.250-28 x 1.00)SCREW, (.250-28 x 1.00)
-
1123-12706 SPACER, (.194 x .375)SPACER, (.194 x .375)
-
1211-8267139 NUT, (.250-28)NUT, (.250-28)
-
1310-865900 SCREW, (.250-28 x .930)SCREW, (.250-28 x .930)
-
14861175A2 SHIFT LINKAGE ASSEMBLY, High Bump Shift LeverSHIFT LINKAGE ASSEMBLY, High Bump Shift Lever
-
15NSS NOT SOLD SEPARATE, Shift LeverNOT SOLD SEPARATE, Shift Lever
-
1612-20583 WASHERWASHER
-
1718-26953 COTTER PINCOTTER PIN
-
1886776 LATCHLATCH
-
19865425A03 UNIVERSAL JOINT ASSEMBLYUNIVERSAL JOINT ASSEMBLY
-
20866133A01 YOKE, Splined, Coupler EndYOKE, Splined, Coupler End
-
2125-29845 O-RING, (.924 x .103)O-RING, (.924 x .103)
-
2225-35027 O-RING, (1.046)O-RING, (1.046)
-
23866137T SOCKET, Center, CenterSOCKET, Center, Center
-
24866136A01 CROSS AND BEARINGCROSS AND BEARING
-
25866134T YOKE, Gear EndYOKE, Gear End
-
2611-862118A2 RETAINER/SEAL KITRETAINER/SEAL KIT
-
2725-861844 O-RINGO-RING
-
2826-807006 SEAL, OilSEAL, Oil
-
2912-862134 WASHERWASHER
-
3031-8M0104358 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
3143-887906A1 GEAR SET, (29/27)GEAR SET, (29/27)
-
3143-887903A1 GEAR SET, (32/27)GEAR SET, (32/27)
-
3143-887909A1 GEAR SET, (30/23)GEAR SET, (30/23)
-
3212-44539 WASHERWASHER
-
3311-22339 NUT, (.625-18)NUT, (.625-18)
-
34865441A04 COVER ASSEMBLY, BackCOVER ASSEMBLY, Back
-
34866463A02 COVER ASSEMBLY
(SEACORE)COVER ASSEMBLY
(SEACORE) -
3512708 SEALSEAL
-
36865711A02 DETENT ASSEMBLYDETENT ASSEMBLY
-
3710-8M0113180 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
3810-87158 SCREW, (.375-16 x 1.875)SCREW, (.375-16 x 1.875)
-
3912711 SHAFTSHAFT
-
4015-888927028 SHIM, (.028)SHIM, (.028)
-
4015-888927029 SHIM, (.029)SHIM, (.029)
-
4015-888927030 SHIM, (.030)SHIM, (.030)
-
4015-888927031 SHIM, (.031)SHIM, (.031)
-
4015-888927032 SHIM, (.032)SHIM, (.032)
-
4015-888927033 SHIM, (.033)SHIM, (.033)
-
4015-888927034 SHIM, (.034)SHIM, (.034)
-
4015-888927035 SHIM, (.035)SHIM, (.035)
-
4015-888927036 SHIM, (.036)SHIM, (.036)
-
4015-888927037 SHIM, (.037)SHIM, (.037)
-
4015-888927038 SHIM, (.038)SHIM, (.038)
-
4015-888927039 SHIM, (.039)SHIM, (.039)
-
4015-888927040 SHIM, (.040)SHIM, (.040)
-
4112-37828 WASHER, (.390 x .625 x .062) Stainless SteelWASHER, (.390 x .625 x .062) Stainless Steel
-
-26-16709A2 SEAL KIT, Driveshaft HousingSEAL KIT, Driveshaft Housing
