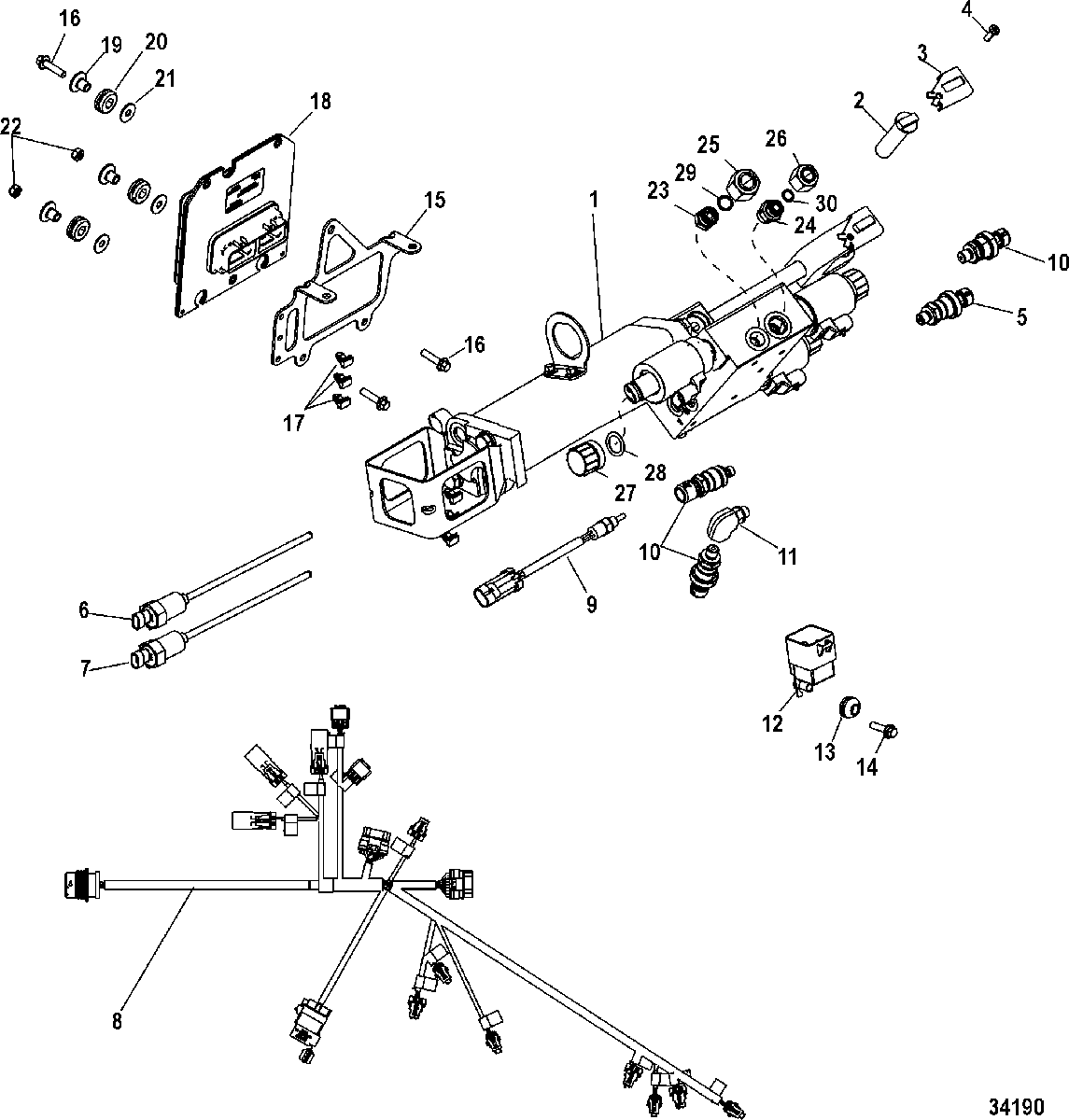

Steering Actuator, Axius (Gen I), Sensors Screw In для Mercruiser - BRAVO X TWO 0W250000 & Up

  • №
    Артикул
    Название
  • 1
    8M0057416 STEERING ACTUATOR ASSEMBLY, Starboard
    (Gas) (Refer to Service Bulletin SMC-09-06)
    STEERING ACTUATOR ASSEMBLY, Starboard
    (Gas) (Refer to Service Bulletin SMC-09-06)
  • 1
    8M0057416 STEERING ACTUATOR ASSEMBLY, Port
    (Gas) (Refer to Service Bulletin SMC-09-06)
    STEERING ACTUATOR ASSEMBLY, Port
    (Gas) (Refer to Service Bulletin SMC-09-06)
  • 1
    8M0057413 STEERING ACTUATOR ASSEMBLY, Starboard
    (Diesel)
    STEERING ACTUATOR ASSEMBLY, Starboard
    (Diesel)
  • 1
    8M0057413 STEERING ACTUATOR ASSEMBLY, Port
    (Diesel)
    STEERING ACTUATOR ASSEMBLY, Port
    (Diesel)
  • 2
    NSS NOT SOLD SEPARATE, CLEVIS PIN
    NOT SOLD SEPARATE, CLEVIS PIN
  • 3
    8M2010043 RETAINER
    RETAINER
  • 4
    10-4000328 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 5
    8M0007568 TRANSDUCER, 500 PSI
    TRANSDUCER, 500 PSI
  • 6
    897345T14 SENSOR, Position, Secondary-Decreasing
    SENSOR, Position, Secondary-Decreasing
  • 7
    897345T15 SENSOR, Position, Primary-Increasing
    SENSOR, Position, Primary-Increasing
  • 8
    84-897345T13 HARNESS
    HARNESS
  • 9
    8M0142542 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 10
    8M6001284 TRANSDUCER
    TRANSDUCER
  • 11
    NSS NOT SOLD SEPARATE, ELBOW
    NOT SOLD SEPARATE, ELBOW
  • 12
    NSS NOT SOLD SEPARATE, RELAY
    NOT SOLD SEPARATE, RELAY
  • 13
    NSS NOT SOLD SEPARATE, GROMMET
    NOT SOLD SEPARATE, GROMMET
  • 14
    NSS NOT SOLD SEPARATE, SCREW
    NOT SOLD SEPARATE, SCREW
  • 15
    NSS NOT SOLD SEPARATE, BRACKET
    NOT SOLD SEPARATE, BRACKET
  • 16
    NSS NOT SOLD SEPARATE, SCREW
    NOT SOLD SEPARATE, SCREW
  • 17
    54-804352 CLIP
    CLIP
  • 18
    NSS NOT SOLD SEPARATE, THRUST VECTOR MODULE
    NOT SOLD SEPARATE, THRUST VECTOR MODULE
  • 19
    23-856954 BUSHING
    BUSHING
  • 20
    25-834985 GROMMET
    GROMMET
  • 21
    12-65567 WASHER, (.265 x .750 x .048) Stainless Steel
    WASHER, (.265 x .750 x .048) Stainless Steel
  • 22
    NSS NOT SOLD SEPARATE, NUT
    NOT SOLD SEPARATE, NUT
  • 23
    22-8M2007090 FITTING, (-6) ORF TO ( -8) ORB, Straight
    (Gas)
    FITTING, (-6) ORF TO ( -8) ORB, Straight
    (Gas)
  • 23
    22-8M2008375 FITTING, Adapter (-6ORF TO -8ORB), 90 Degree
    (Diesel)
    FITTING, Adapter (-6ORF TO -8ORB), 90 Degree
    (Diesel)
  • 24
    22-8M2015982 FITTING, Adapter (-6ORF TO -8ORB)
    FITTING, Adapter (-6ORF TO -8ORB)
  • 25
    19-8M2013299 CAP
    CAP
  • 26
    19-8M2013298 CAP
    CAP
  • 27
    11-8M2013313 NUT
    NUT
  • 28
    25-8M2013312 O-RING
    O-RING
  • 29
    25-8M2001117 O-RING, (.489 X .070)
    O-RING, (.489 X .070)
  • 30
    25-8M2004603 O-RING
    O-RING
  • -
    879172A19 DUST CAP KIT
    (Refer to Service Bulletin SMC-09-06)
    DUST CAP KIT
    (Refer to Service Bulletin SMC-09-06)
