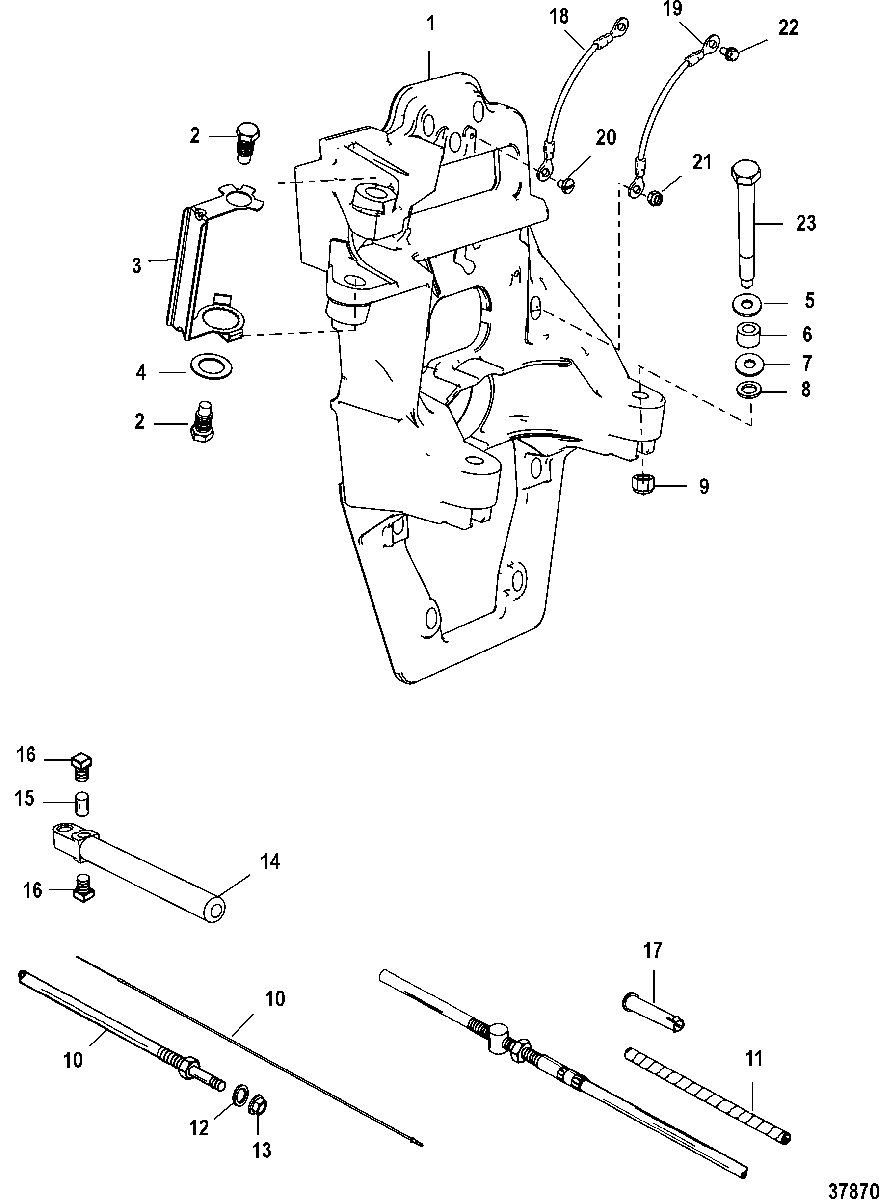

Transom Plate and Shift Cable для Mercruiser - BRAVO X TWO 0W250000 & Up
-
№АртикулНазвание
-
18M0138839 PLATE ASSEMBLY, TransomPLATE ASSEMBLY, Transom
-
210-8M0113173 BOLT, PivotBOLT, Pivot
-
314-879150A34 WASHER ASSEMBLY, PivotWASHER ASSEMBLY, Pivot
-
412-8M2010068 WASHER, (.78 x 1.25 x .05) Stainless Steel, Pivot (Bottom)WASHER, (.78 x 1.25 x .05) Stainless Steel, Pivot (Bottom)
-
512-35777 WASHER, (.5156 x 1.375 x .125) AluminumWASHER, (.5156 x 1.375 x .125) Aluminum
-
623-99299 SPACER, (.520 x .870 x .630)SPACER, (.520 x .870 x .630)
-
712-32834 WASHER, (.9375 x 1.750 x .172)WASHER, (.9375 x 1.750 x .172)
-
812-54012 WASHER, (.530 x .870 x .105) Stainless SteelWASHER, (.530 x .870 x .105) Stainless Steel
-
911-863332 NUT, (.500-20) AluminumNUT, (.500-20) Aluminum
-
10865437A02 CABLE KIT, ShiftCABLE KIT, Shift
-
1190412 WRAPPING, (1.16 Feet Bulk)
(Cut As Required)WRAPPING, (1.16 Feet Bulk)
(Cut As Required) -
1212-815472 WASHER, SealingWASHER, Sealing
-
1311-49910 NUT, (.375-24)NUT, (.375-24)
-
-43433A01 GUIDE KITGUIDE KIT
-
1443433 GUIDEGUIDE
-
1543436 ANCHORANCHOR
-
1610-20518 SET SCREW, (#8-32)SET SCREW, (#8-32)
-
17861632T INSERTINSERT
-
18NSS NOT SOLD SEPARATE, CABLE ASSEMBLY-GroundingNOT SOLD SEPARATE, CABLE ASSEMBLY-Grounding
-
19NSS NOT SOLD SEPARATE, CABLE ASSEMBLY-GroundingNOT SOLD SEPARATE, CABLE ASSEMBLY-Grounding
-
2010-24231 SCREW, (#10-32 x .250)SCREW, (#10-32 x .250)
-
2111-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
2210-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
2310-97934 SCREW, (.500-20 x 5.370) SpecialSCREW, (.500-20 x 5.370) Special
