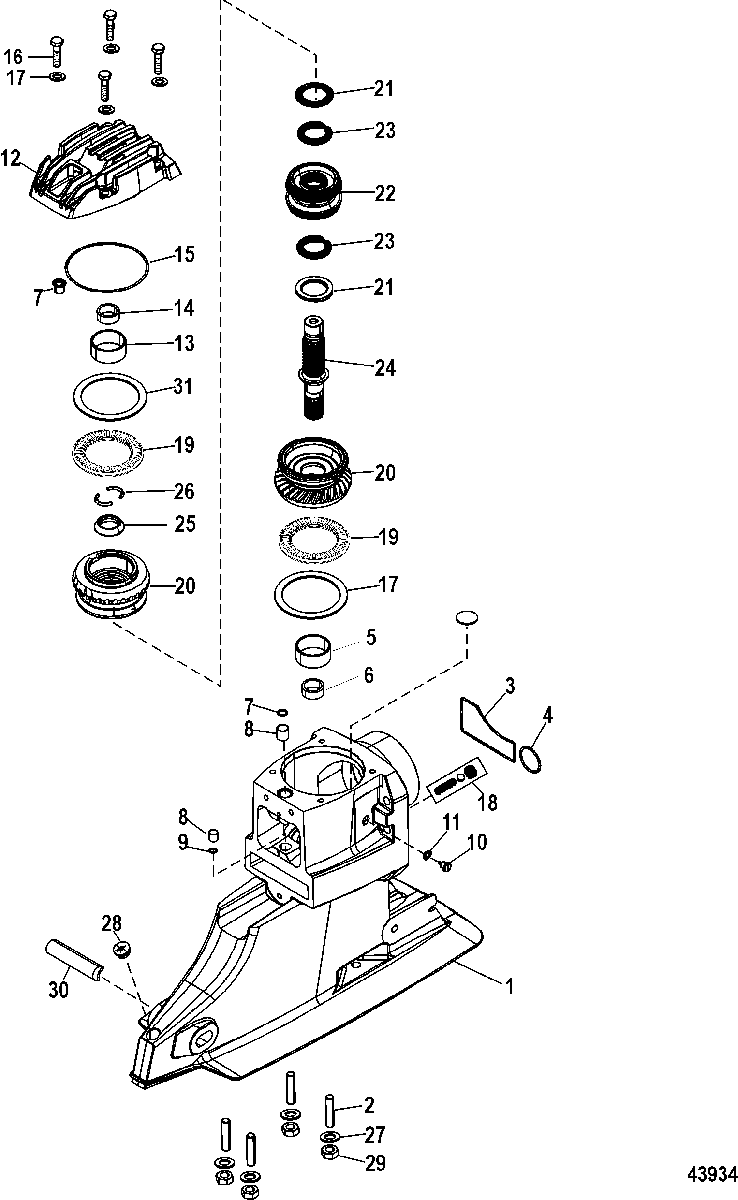

Driveshaft Housing and Drive Gears для Mercruiser - BRAVO X TWO 0W250000 & Up
-
№АртикулНазвание
-
-1589-865440H66 HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 and 1.81:1 Ratio)(Bravo-III 1.36:1 and 1.81:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 and 1.81:1 Ratio)(Bravo-III 1.36:1 and 1.81:1 Ratio) -
-1500-866459J01 HOUSING ASSEMBLY, Driveshaft - Complete
(SEACORE)(Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 and 1.81:1 Ratio)(Bravo-III 1.36:1 and 1.81:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(SEACORE)(Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 and 1.81:1 Ratio)(Bravo-III 1.36:1 and 1.81:1 Ratio) -
-1589-865440H67 HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 and 2.00:1 Ratio)(Bravo-III 1.50:1, 1.65:1 and 2.00:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 and 2.00:1 Ratio)(Bravo-III 1.50:1, 1.65:1 and 2.00:1 Ratio) -
-1500-866459J02 HOUSING ASSEMBLY, Driveshaft - Complete
(SEACORE)(Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 and 2.00:1 Ratio)(Bravo-III 1.50:1, 1.65:1 and 2.00:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(SEACORE)(Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 and 2.00:1 Ratio)(Bravo-III 1.50:1, 1.65:1 and 2.00:1 Ratio) -
-1589-865440H68 HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 and 2.43:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 and 2.43:1 Ratio) -
-1500-866459J03 HOUSING ASSEMBLY, Driveshaft - Complete
(SEACORE)(Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 and 2.43:1 Ratio)HOUSING ASSEMBLY, Driveshaft - Complete
(SEACORE)(Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 and 2.43:1 Ratio) -
11589-865440H70 HOUSING, Driveshaft - Basic, BasicHOUSING, Driveshaft - Basic, Basic
-
11500-866459J00 HOUSING, Driveshaft - Basic
(SEACORE)HOUSING, Driveshaft - Basic
(SEACORE) -
216-8M0133358 STUD, (.437-14/.437-20 x 2.060)STUD, (.437-14/.437-20 x 2.060)
-
316755Q1 SEALSEAL
-
425-457101 O-RING, (1.424 x .103)O-RING, (1.424 x .103)
-
531-861791 RACERACE
-
631-843240 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
719-865866 PLUG, Shift Shaft Oil SealPLUG, Shift Shaft Oil Seal
-
823-861209A1 BUSHING KITBUSHING KIT
-
926-127091 SEALSEAL
-
1022-8M0058389 PLUG KIT, Drain - MagneticPLUG KIT, Drain - Magnetic
-
1126-830749 SEALSEAL
-
12865507A04 COVER ASSEMBLY, TopCOVER ASSEMBLY, Top
-
12866462A02 COVER ASSEMBLY, Top
(SEACORE)COVER ASSEMBLY, Top
(SEACORE) -
1331-861791 RACERACE
-
1431-843240 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1525-97387 O-RINGO-RING
-
1610-58642 SCREW, (.375-16 x 1.50) Stainless SteelSCREW, (.375-16 x 1.50) Stainless Steel
-
1712-37828 WASHER, (.390 x .625 x .062) Stainless SteelWASHER, (.390 x .625 x .062) Stainless Steel
-
1824-17997A1 SPRING KITSPRING KIT
-
1931-861787 BEARING ASSEMBLY, ThrustBEARING ASSEMBLY, Thrust
-
2043-887906A1 GEAR SET, (29/27)
(Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 and 1.81:1 Ratio)(Bravo-III 1.36:1 and 1.81:1 Ratio)GEAR SET, (29/27)
(Bravo-I 1.36:1 Ratio)(Bravo-II 1.50:1 and 1.81:1 Ratio)(Bravo-III 1.36:1 and 1.81:1 Ratio) -
2043-887903A1 GEAR SET, (32/27)
(Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 and 2.00:1 Ratio)(Bravo-III 1.50:1, 1.65:1 and 2.00:1 Ratio)GEAR SET, (32/27)
(Bravo-I 1.50:1 Ratio)(Bravo-II 1.65:1 and 2.00:1 Ratio)(Bravo-III 1.50:1, 1.65:1 and 2.00:1 Ratio) -
2043-887909A1 GEAR SET, (30/23)
(Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 and 2.43:1 Ratio)GEAR SET, (30/23)
(Bravo-I 1.65:1 Ratio)(Bravo-II 2.20:1 Ratio)(Bravo-III 2.20:1 and 2.43:1 Ratio) -
2131-861792 BEARING ASSEMBLY, ThrustBEARING ASSEMBLY, Thrust
-
2252-865344A01 CLUTCH ASSEMBLYCLUTCH ASSEMBLY
-
2324-93505 SPRINGSPRING
-
2445-812773T DRIVESHAFT, UpperDRIVESHAFT, Upper
-
2523-86770 COLLAR, ThrustCOLLAR, Thrust
-
2697351 KEEPERKEEPER
-
2712-861854 WASHER, (.453 x .750 x .032) Stainless SteelWASHER, (.453 x .750 x .032) Stainless Steel
-
2819-824928001 PLUG, RubberPLUG, Rubber
-
2911-35053 NUT, (.437-20)NUT, (.437-20)
-
30808006 INSERT, Trim AdjustmentINSERT, Trim Adjustment
-
3123-864596058 SHIM/RACE, (.0575/.0584 Thick) Brown, Thrust BearingSHIM/RACE, (.0575/.0584 Thick) Brown, Thrust Bearing
-
3123-864596059 SHIM/RACE, (.0585/.0594 Thick) White, Thrust BearingSHIM/RACE, (.0585/.0594 Thick) White, Thrust Bearing
-
3123-864596060 SHIM/RACE, (.0595/.0604 Thick) Orange, Thrust BearingSHIM/RACE, (.0595/.0604 Thick) Orange, Thrust Bearing
-
3123-864596061 SHIM/RACE, (.0605/.0614 Thick) Green, Thrust BearingSHIM/RACE, (.0605/.0614 Thick) Green, Thrust Bearing
-
3123-864596062 SHIM/RACE, (.0615/.0624 Thick) Yellow, Thrust BearingSHIM/RACE, (.0615/.0624 Thick) Yellow, Thrust Bearing
-
3123-864596063 SHIM/RACE, (.0625/.0634 Thick) Red, Thrust BearingSHIM/RACE, (.0625/.0634 Thick) Red, Thrust Bearing
-
3123-864596064 SHIM/RACE, (.0635/.0644 Thick) Light Blue, Thrust BearingSHIM/RACE, (.0635/.0644 Thick) Light Blue, Thrust Bearing
-
3123-864596065 SHIM/RACE, (.0645/.0654 Thick) Black, Thrust BearingSHIM/RACE, (.0645/.0654 Thick) Black, Thrust Bearing
-
3123-864596066 SHIM/RACE, (.0655/.0664 Thick) Pink, Thrust BearingSHIM/RACE, (.0655/.0664 Thick) Pink, Thrust Bearing
-
-26-16709A2 SEAL KIT, Driveshaft HousingSEAL KIT, Driveshaft Housing
