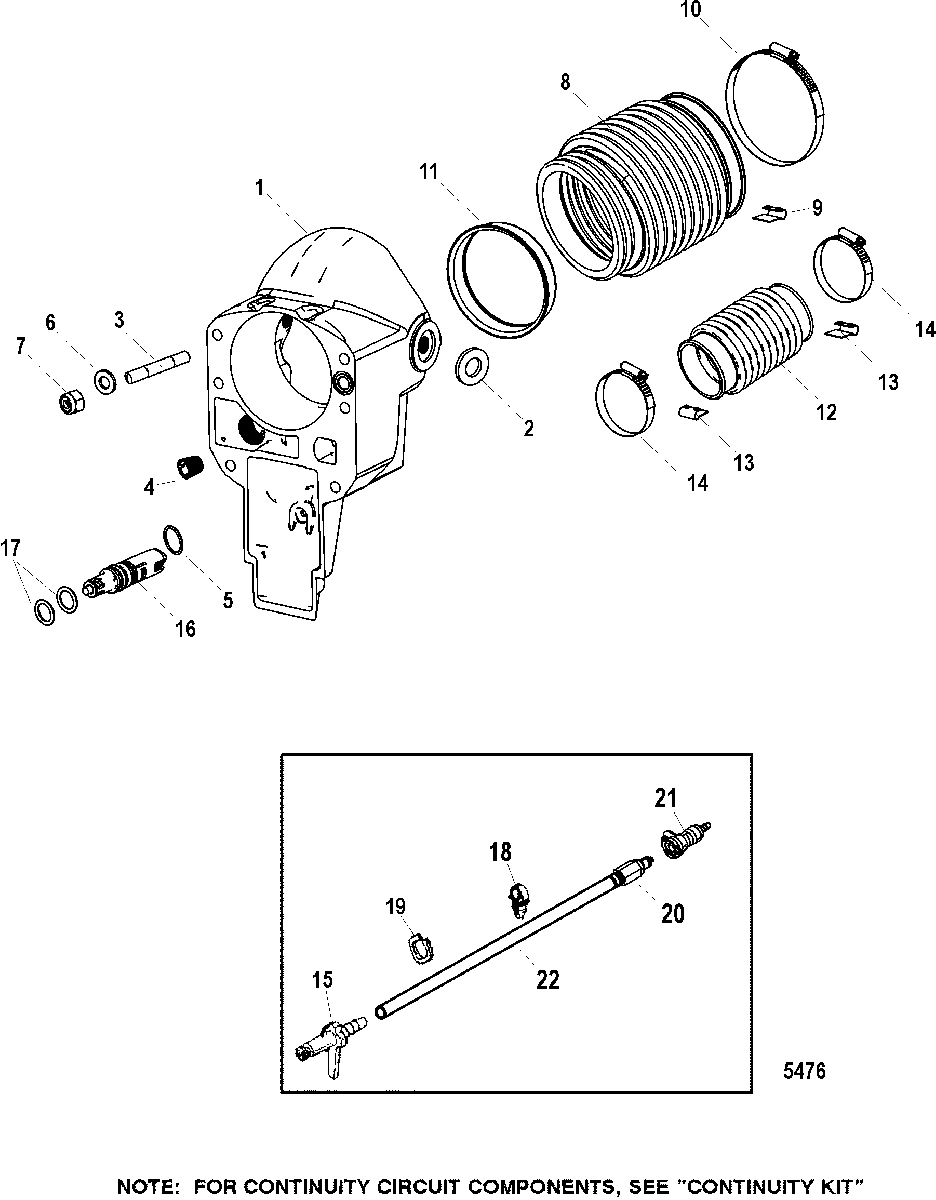

Bell Housing для Mercruiser - BRAVO X TWO 0W250000 & Up

  • №
    Артикул
    Название
  • 1
    41646A9 BELL HOUSING ASSEMBLY
    BELL HOUSING ASSEMBLY
  • 1
    866457A01 BELL HOUSING ASSEMBLY
    (SEACORE)
    BELL HOUSING ASSEMBLY
    (SEACORE)
  • 2
    12-806241 WASHER
    WASHER
  • 3
    16-59579 STUD, (.437-14/.437-20 x 2.812)
    STUD, (.437-14/.437-20 x 2.812)
  • 4
    41674T INSERT
    INSERT
  • 5
    25-62705 O-RING
    O-RING
  • 6
    12-35935 WASHER, (.435 x .875 x .105) Stainless Steel
    WASHER, (.435 x .875 x .105) Stainless Steel
  • 7
    11-859116 NUT, (.437-20)
    NUT, (.437-20)
  • 7
    11-34933 NUT, (.437-20) Stainless Steel
    NUT, (.437-20) Stainless Steel
  • 8
    8M0062406 BELLOWS ASSEMBLY, Universal Joint
    BELLOWS ASSEMBLY, Universal Joint
  • 9
    54-8M0126505 CLIP, Grounding
    CLIP, Grounding
  • 10
    54-815504372 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 11
    862209 SLEEVE
    SLEEVE
  • 12
    18654A1 BELLOWS ASSEMBLY, Exhaust
    BELLOWS ASSEMBLY, Exhaust
  • 13
    54-8M0126505 CLIP, Grounding
    CLIP, Grounding
  • 14
    54-815504348 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 15
    815303T ADAPTOR
    ADAPTOR
  • 16
    18920A1 VALVE ASSEMBLY
    (Use With Oil Reservoir)
    VALVE ASSEMBLY
    (Use With Oil Reservoir)
  • 17
    25-48171 O-RING, (.364. x .070)
    (Use With Oil Reservoir)
    O-RING, (.364. x .070)
    (Use With Oil Reservoir)
  • 18
    54-12994 CLIP
    CLIP
  • 19
    54-818557 CLAMP
    CLAMP
  • 20
    865391 FITTING ASSEMBLY, Speedometer, Male Quick Connect
    FITTING ASSEMBLY, Speedometer, Male Quick Connect
  • 21
    22-865417 FITTING, Female Quick Connect
    FITTING, Female Quick Connect
  • 22
    32-5495025 TUBING, (25.00 Feet Bulk)
    TUBING, (25.00 Feet Bulk)
