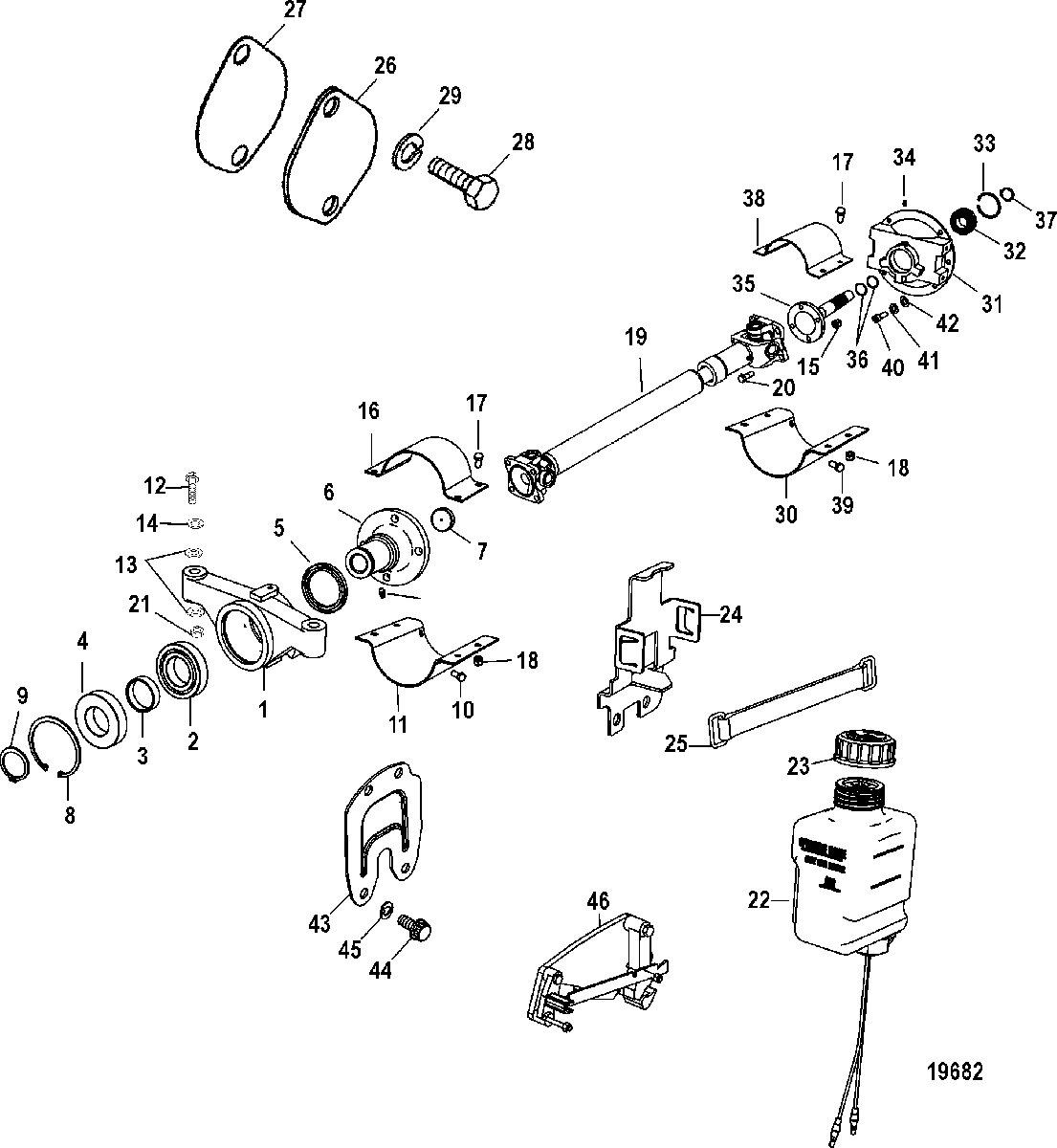

Driveshaft Extension Kit, QSB 5.9L для Mercruiser - BRAVO X TWO 0W250000 & Up

  • №
    Артикул
    Название
  • -
    866274A01 EXTENSION KIT, Driveshaft
    EXTENSION KIT, Driveshaft
  • 1
    817416A4 HOUSING ASSEMBLY
    HOUSING ASSEMBLY
  • 2
    30-93944A2 BEARING SET, Ball (Includes Item 4)
    BEARING SET, Ball (Includes Item 4)
  • 3
    23-817417 SPACER
    SPACER
  • 4
    30-93944A2 BEARING SET, Ball (Includes Item 2)
    BEARING SET, Ball (Includes Item 2)
  • 5
    26-93924 SEAL
    SEAL
  • 6
    817415T SHAFT
    SHAFT
  • 7
    19-93921 EXPANSION PLUG
    EXPANSION PLUG
  • 8
    53-93914 RING, Retaining
    RING, Retaining
  • 9
    53-93915 RING, Retaining
    RING, Retaining
  • 10
    10-76926 SCREW, (.375-16 x .875)
    SCREW, (.375-16 x .875)
  • 11
    93918A1 SHIELD, Lower
    SHIELD, Lower
  • 12
    10-57053 SCREW, (.500-20 x 4.500)
    SCREW, (.500-20 x 4.500)
  • 13
    12-42307 WASHER
    WASHER
  • 14
    12-35777 WASHER, (.5156 x 1.375 x .125) Aluminum
    WASHER, (.5156 x 1.375 x .125) Aluminum
  • 15
    11-82670815 NUT, (.437-20)
    NUT, (.437-20)
  • 16
    862873T SHIELD
    SHIELD
  • 17
    10-76926 SCREW, (.375-16 x .875)
    SCREW, (.375-16 x .875)
  • 18
    11-82670912 NUT, (.375-16)
    NUT, (.375-16)
  • 19
    45-864286A1 DRIVESHAFT ASSEMBLY, (63.00 Inches)
    DRIVESHAFT ASSEMBLY, (63.00 Inches)
  • 19
    8M2000586 DRIVESHAFT, (9.69 inch)
    DRIVESHAFT, (9.69 inch)
  • 20
    10-805159 SCREW, (.437-20 x 1.500)
    SCREW, (.437-20 x 1.500)
  • 21
    11-863332 NUT, (.500-20) Aluminum
    NUT, (.500-20) Aluminum
  • 22
    8M0075708 MONITOR ASSEMBLY, Drive Lube
    MONITOR ASSEMBLY, Drive Lube
  • 23
    36-8067271 CAP, Drive Lube Monitor
    CAP, Drive Lube Monitor
  • 24
    860065A1 BRACKET KIT
    BRACKET KIT
  • 25
    808023T STRAP
    STRAP
  • -
    8M0095447 BLOCK OFF KIT
    BLOCK OFF KIT
  • 26
    8M0095447 COVER
    COVER
  • 27
    27-818305 GASKET
    GASKET
  • 28
    10-28636 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 29
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • -
    93911A15 TAILSTOCK KIT
    TAILSTOCK KIT
  • 30
    93918A1 SHIELD, Lower
    SHIELD, Lower
  • -
    NSS NOT SOLD SEPARATE, Housing Assembly
    NOT SOLD SEPARATE, Housing Assembly
  • 31
    NSS NOT SOLD SEPARATE, Housing
    NOT SOLD SEPARATE, Housing
  • 32
    30-879194A03 BEARING, Ball
    BEARING, Ball
  • 33
    53-94104 RING, Retaining
    RING, Retaining
  • 34
    22-74036 FITTING, Grease
    (Use with greased bearing)
    FITTING, Grease
    (Use with greased bearing)
  • 34
    10-8M2015913 PLUG, (.250-28 x .320)
    (Use with non-greased bearing)
    PLUG, (.250-28 x .320)
    (Use with non-greased bearing)
  • 35
    NSS NOT SOLD SEPARATE, Shaft
    NOT SOLD SEPARATE, Shaft
  • 36
    25-29845 O-RING, (.924 x .103)
    O-RING, (.924 x .103)
  • 37
    53-8M0141818 RING, Retaining
    RING, Retaining
  • 38
    93919A1 SHIELD, Upper
    SHIELD, Upper
  • 39
    10-96995 SCREW, (.375-16 x .880)
    SCREW, (.375-16 x .880)
  • 40
    10-29081 SCREW, (.437-14 x 1.250)
    SCREW, (.437-14 x 1.250)
  • 41
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 42
    12-878072 WASHER, (.469 x 1.125 x .063)
    WASHER, (.469 x 1.125 x .063)
  • 43
    861776A2 PLATE KIT
    PLATE KIT
  • 44
    10-8M0113180 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 45
    13-41471 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 46
    99237A27 BRACKET ASSEMBLY, Shift
    BRACKET ASSEMBLY, Shift
