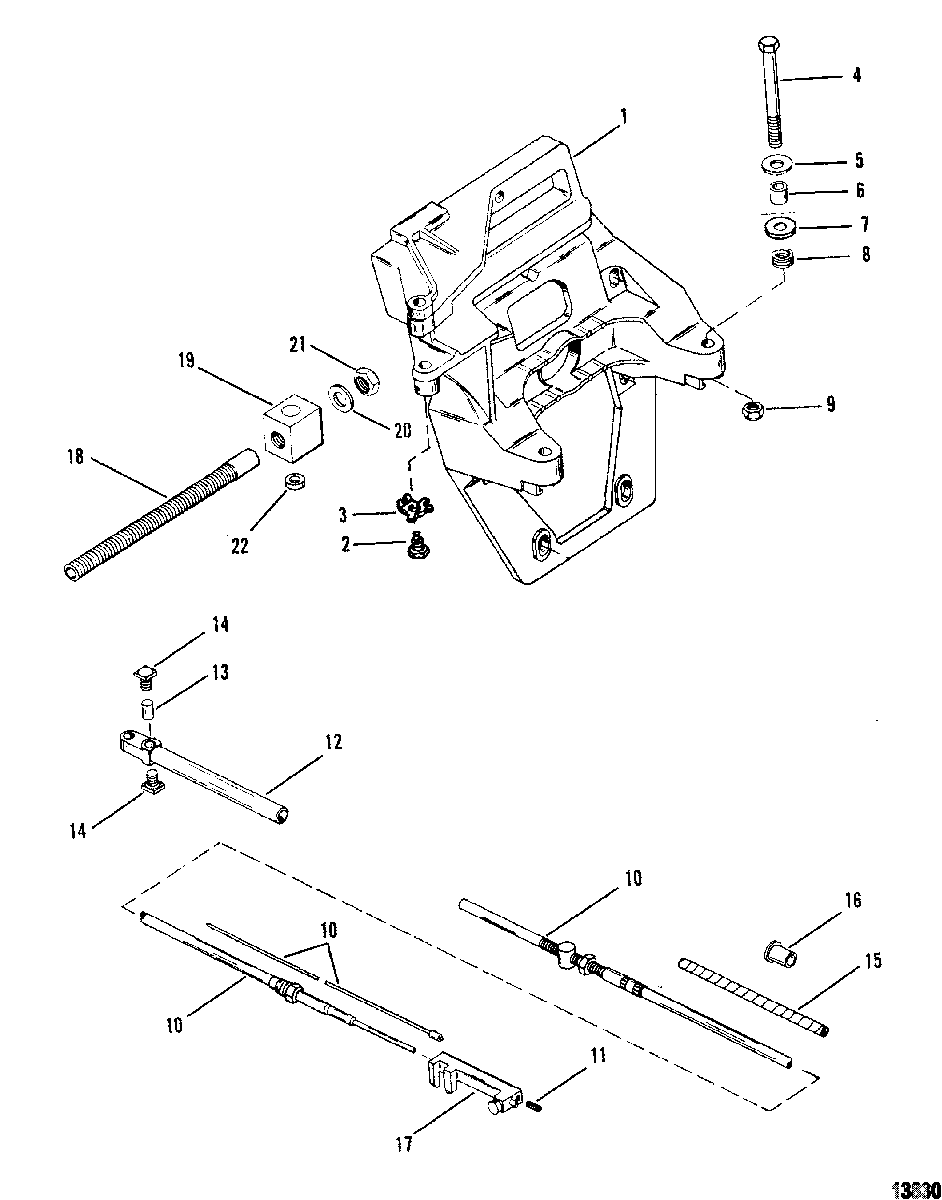

Transom Plate And Shift Cable для Mercruiser - ALPHA ONE (GEN.II) 1991-1995 0D469859 THRU 0F679999

  • №
    Артикул
    Название
  • 1
    8M0138839 PLATE ASSEMBLY, Transom
    PLATE ASSEMBLY, Transom
  • 2
    10-8M0113173 BOLT
    BOLT
  • 3
    14-42254 WASHER
    WASHER
  • 4
    10-97934 SCREW, (.500-20 x 5.370) Special
    SCREW, (.500-20 x 5.370) Special
  • 5
    12-35777 WASHER, (.5156 x 1.375 x .125) Aluminum
    WASHER, (.5156 x 1.375 x .125) Aluminum
  • 6
    23-99299 SPACER, (.520 x .870 x .630)
    SPACER, (.520 x .870 x .630)
  • 7
    12-32834 WASHER, (.9375 x 1.750 x .172)
    WASHER, (.9375 x 1.750 x .172)
  • 8
    13-33734 LOCKWASHER, (.500)
    LOCKWASHER, (.500)
  • 9
    11-863332 NUT, (.500-20)
    NUT, (.500-20)
  • 10
    865436A02 CABLE ASSEMBLY, Shift
    CABLE ASSEMBLY, Shift
  • 11
    10-31700 SCREW, (.250-28 x .750)
    SCREW, (.250-28 x .750)
  • -
    43433A01 GUIDE KIT
    GUIDE KIT
  • 12
    43433 GUIDE
    GUIDE
  • 13
    43436 ANCHOR
    ANCHOR
  • 14
    10-20518 SET SCREW, (#8-32)
    SET SCREW, (#8-32)
  • 15
    38473 WRAPPING, Spiral
    WRAPPING, Spiral
  • 16
    14705 INSERT
    INSERT
  • 17
    865436A02 SLIDE
    SLIDE
  • 18
    96400 TUBE, Steering
    (Non Power Steering)
    TUBE, Steering
    (Non Power Steering)
  • 19
    95846 SWIVEL BLOCK
    (Non Power Steering)
    SWIVEL BLOCK
    (Non Power Steering)
  • 20
    12-37985 WASHER
    (Non Power Steering)
    WASHER
    (Non Power Steering)
  • 21
    11-8M0041651 NUT, (.875-14)
    (Non Power Steering)
    NUT, (.875-14)
    (Non Power Steering)
  • 22
    23-95803 BUSHING
    (Non Power Steering)
    BUSHING
    (Non Power Steering)
