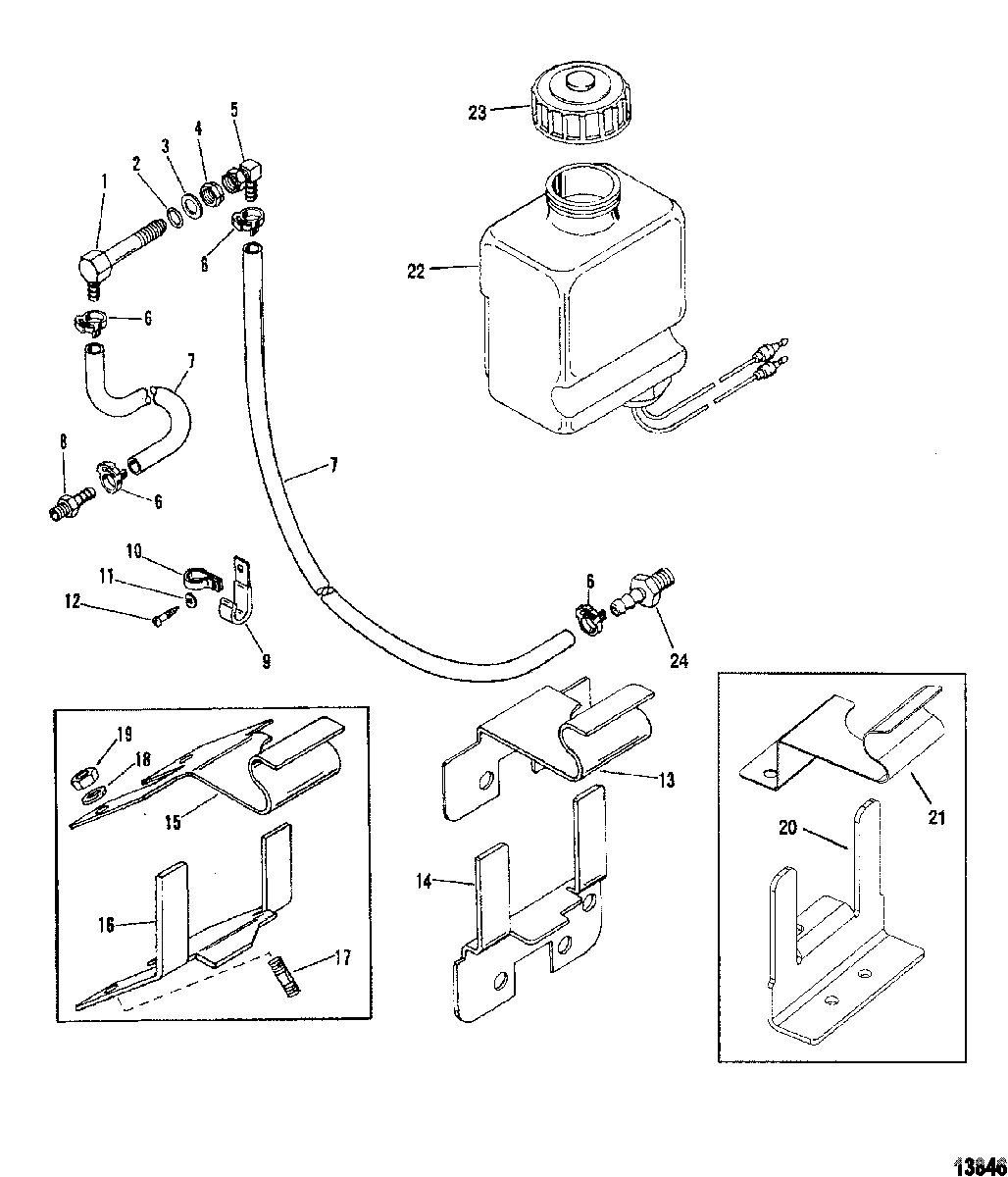

Oil Reservoir Components(Square Oil Bottle) для Mercruiser - ALPHA ONE (GEN.II) 1991-1995 0D469859 THRU 0F679999

  • №
    Артикул
    Название
  • 1
    22-18922 CONNECTOR
    CONNECTOR
  • 2
    25-201951 O-RING
    O-RING
  • 3
    12-861854 WASHER
    WASHER
  • 4
    11-35053 NUT, (.437-20)
    NUT, (.437-20)
  • 5
    22-18923 FITTING
    FITTING
  • 6
    54-415825 CLAMP, Nylon
    CLAMP, Nylon
  • 7
    32-8M0040618 HOSE, (54.00 Inches Bulk)
    HOSE, (54.00 Inches Bulk)
  • 8
    22-16739 CONNECTOR
    CONNECTOR
  • 9
    54-642351 J CLIP
    J CLIP
  • 10
    54-23567 CLIP
    CLIP
  • 11
    10-60605 SCREW, (#10-16 x .750)
    SCREW, (#10-16 x .750)
  • 12
    8M0084613 C WASHER
    C WASHER
  • 13
    860065A1 BRACKET, Clip
    (3.0L/3.0LX)
    BRACKET, Clip
    (3.0L/3.0LX)
  • 14
    860065A1 BRACKET
    (3.0L/3.0LX)
    BRACKET
    (3.0L/3.0LX)
  • 15
    806292T1 BRACKET
    (4.3L/4.3LX, 5.0L/5.0LX, 5.7L/350 Magnum)
    BRACKET
    (4.3L/4.3LX, 5.0L/5.0LX, 5.7L/350 Magnum)
  • 16
    807025T BRACKET
    (4.3L/4.3LX, 5.0L/5.0LX, 5.7L/350 Magnum)
    BRACKET
    (4.3L/4.3LX, 5.0L/5.0LX, 5.7L/350 Magnum)
  • 17
    16-8M2004610 STUD, (.375-16 x 2.130)
    (4.3L/4.3LX, 5.0L/5.0LX, 5.7L/350 Magnum)
    STUD, (.375-16 x 2.130)
    (4.3L/4.3LX, 5.0L/5.0LX, 5.7L/350 Magnum)
  • 18
    12-20553 WASHER, (.406 x .734 x .063)
    (4.3L/4.3LX, 5.0L/5.0LX, 5.7L/350 Magnum)
    WASHER, (.406 x .734 x .063)
    (4.3L/4.3LX, 5.0L/5.0LX, 5.7L/350 Magnum)
  • 19
    11-32219 NUT, (.375-16)
    (4.3L/4.3LX, 5.0L/5.0LX, 5.7L/350 Magnum)
    NUT, (.375-16)
    (4.3L/4.3LX, 5.0L/5.0LX, 5.7L/350 Magnum)
  • 20
    806649T BRACKET
    (262 Magnum (TBI) (GEN+) And (5.7L/LX (TBI) And 350 Magnum (TBI) (GEN+))
    BRACKET
    (262 Magnum (TBI) (GEN+) And (5.7L/LX (TBI) And 350 Magnum (TBI) (GEN+))
  • 21
    806650T BRACKET
    (262 Magnum (TBI) (GEN+) And (5.7L/LX (TBI) And 350 Magnum (TBI) (GEN+))
    BRACKET
    (262 Magnum (TBI) (GEN+) And (5.7L/LX (TBI) And 350 Magnum (TBI) (GEN+))
  • 22
    8M0075708 RESERVOIR ASSEMBLY, Oil
    RESERVOIR ASSEMBLY, Oil
  • 23
    36-8067271 CAP, Drive Lube Monitor, Oil Bottle
    CAP, Drive Lube Monitor, Oil Bottle
  • 24
    22-808624 CONNECTOR
    CONNECTOR
