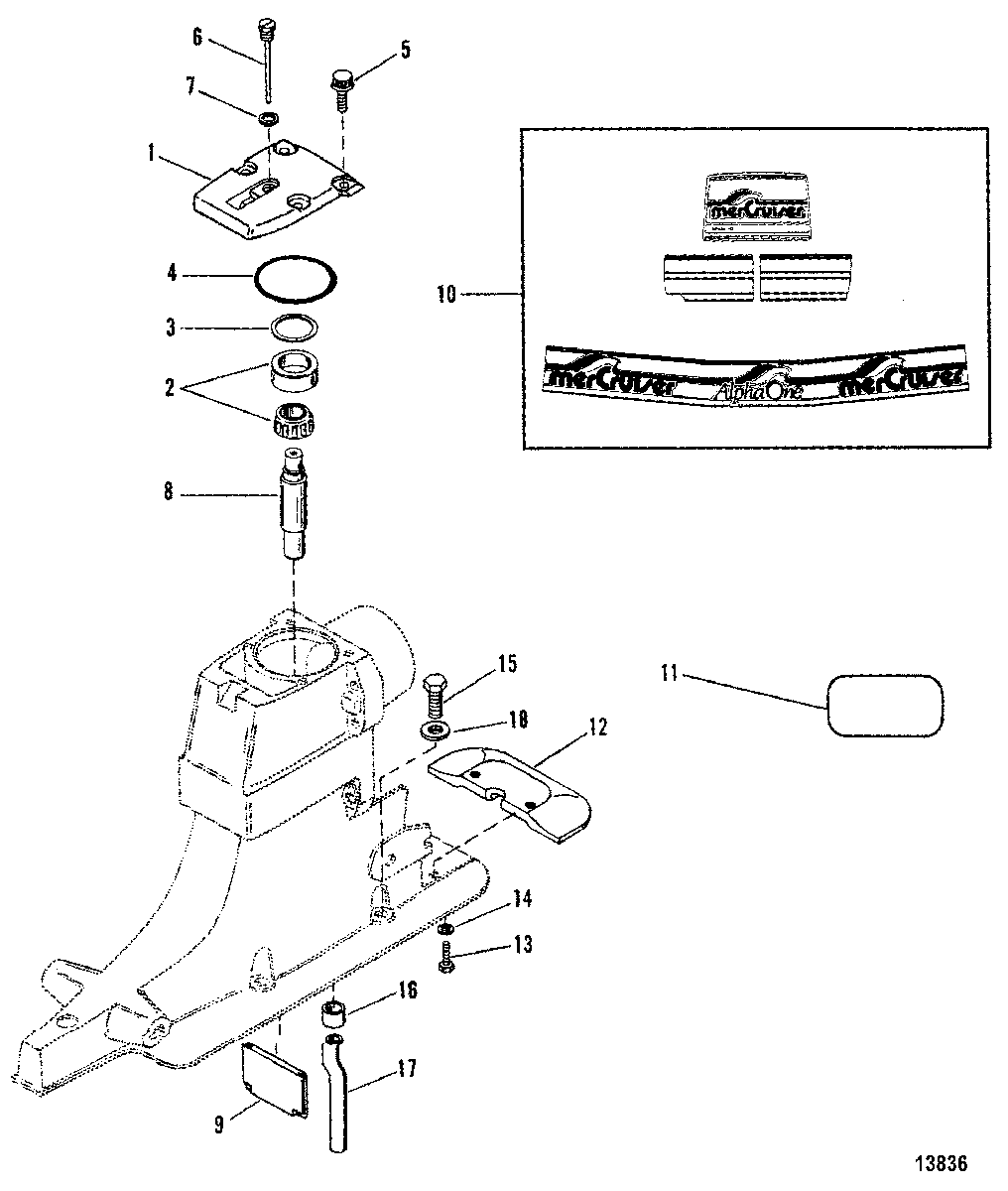

Drive Shaft Housing And Drive Shaft для Mercruiser - ALPHA ONE (GEN.II) 1991-1995 0D469859 THRU 0F679999

  • №
    Артикул
    Название
  • 1
    828692A1 TOP COVER, With Dipstick Hole
    TOP COVER, With Dipstick Hole
  • 1
    828692A1 TOP COVER, With Out Dipstick Hole
    TOP COVER, With Out Dipstick Hole
  • 2
    31-61100A1 BEARING ASSEMBLY
    BEARING ASSEMBLY
  • 3
    15-45691A1 SHIM
    SHIM
  • 4
    25-32546 O-RING
    O-RING
  • 5
    10-8M0113180 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 6
    10-79953Q04 DIPSTICK ASSEMBLY
    (Old Design)
    DIPSTICK ASSEMBLY
    (Old Design)
  • 7
    12-191833 WASHER, Fiber
    (Old Design)
    WASHER, Fiber
    (Old Design)
  • 8
    45-557961 DRIVESHAFT, Upper
    DRIVESHAFT, Upper
  • 9
    815932 FILLER WALL
    FILLER WALL
  • 10
    37-817387A91 DECAL SET
    DECAL SET
  • 11
    37-13722A11 DECAL SET, Engine Model
    (2.5L/3.0L)
    DECAL SET, Engine Model
    (2.5L/3.0L)
  • 11
    37-13722A13 DECAL SET, Engine Model
    (4.3L/4.3L-LX/5.0L/5.0L-LX/5.7L)
    DECAL SET, Engine Model
    (4.3L/4.3L-LX/5.0L/5.0L-LX/5.7L)
  • 12
    97-821629Q1 ANODE ASSEMBLY
    ANODE ASSEMBLY
  • 13
    10-28668 SCREW, (.250-20 x .875) Stainless Steel
    SCREW, (.250-20 x .875) Stainless Steel
  • 14
    13-78968 LOCKWASHER, Internal (.250)
    LOCKWASHER, Internal (.250)
  • 15
    10-816601 SCREW, (.437-20 x 1.500)
    SCREW, (.437-20 x 1.500)
  • 16
    26-88397 SEAL
    SEAL
  • 17
    32-860220 TUBE, Water
    TUBE, Water
  • 18
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    WASHER, (.453 x .812 x .105) Stainless Steel
  • 19
    26-88397A1 SEAL KIT, Driveshaft Housing
    SEAL KIT, Driveshaft Housing
