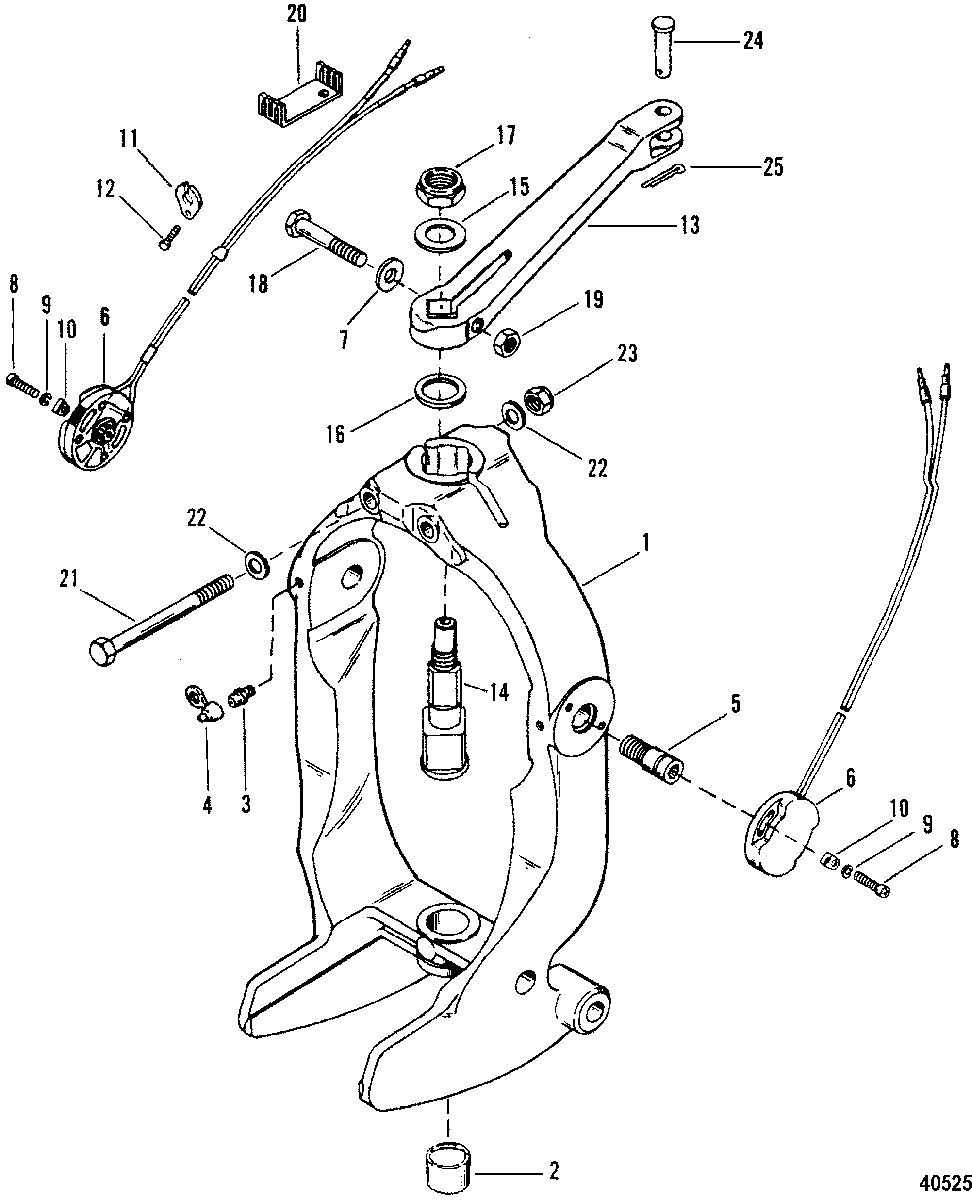

Gimbal Ring And Steering Lever для Mercruiser - ALPHA ONE (GEN.II) 1991-1995 0D469859 THRU 0F679999

  • №
    Артикул
    Название
  • `X21
    865328A01 GIMBAL RING ASSEMBLY
    GIMBAL RING ASSEMBLY
  • 2
    23-99352 BEARING
    BEARING
  • 3
    22-74036 FITTING, Grease (.250-28)
    FITTING, Grease (.250-28)
  • 4
    19-77633Q LUBRICAP
    LUBRICAP
  • 5
    77123 PIN, Hinge
    PIN, Hinge
  • 6
    805320A03 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 7
    12-861854 WASHER
    WASHER
  • 8
    10-37978 SCREW, (#10-32 x .750) Stainless Steel
    SCREW, (#10-32 x .750) Stainless Steel
  • 9
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 10
    57008 RETAINER
    RETAINER
  • 11
    54-12078 CLAMP
    CLAMP
  • 12
    10-28635 SCREW, (.250-20 x .620) Stainless Steel
    SCREW, (.250-20 x .620) Stainless Steel
  • 13
    866322A01 LEVER ASSEMBLY
    LEVER ASSEMBLY
  • 14
    98230A1 SHAFT ASSEMBLY
    SHAFT ASSEMBLY
  • 15
    12-85344 WASHER, (.750 Inside Diameter)
    WASHER, (.750 Inside Diameter)
  • 16
    12-98548 WASHER, (1.125 )
    WASHER, (1.125 )
  • 17
    11-8M2014641 NUT, (.750-16)
    NUT, (.750-16)
  • 18
    10-807204 SCREW, (.437-20 x 2.00)
    SCREW, (.437-20 x 2.00)
  • 19
    11-8M2008293 NUT, (.437-20)
    NUT, (.437-20)
  • 20
    79146 RETAINER
    RETAINER
  • 21
    10-90126 SCREW, (.375-24 x 3.750)
    SCREW, (.375-24 x 3.750)
  • 22
    12-34931 WASHER, (.406 x .734 x .063) Stainless Steel
    WASHER, (.406 x .734 x .063) Stainless Steel
  • 23
    11-862903 NUT, (.375-24)
    NUT, (.375-24)
  • 24
    17-52798 PIN, Clevis
    (Non Power Steering)
    PIN, Clevis
    (Non Power Steering)
  • 25
    18-46950 COTTER PIN
    (Non Power Steering)
    COTTER PIN
    (Non Power Steering)
