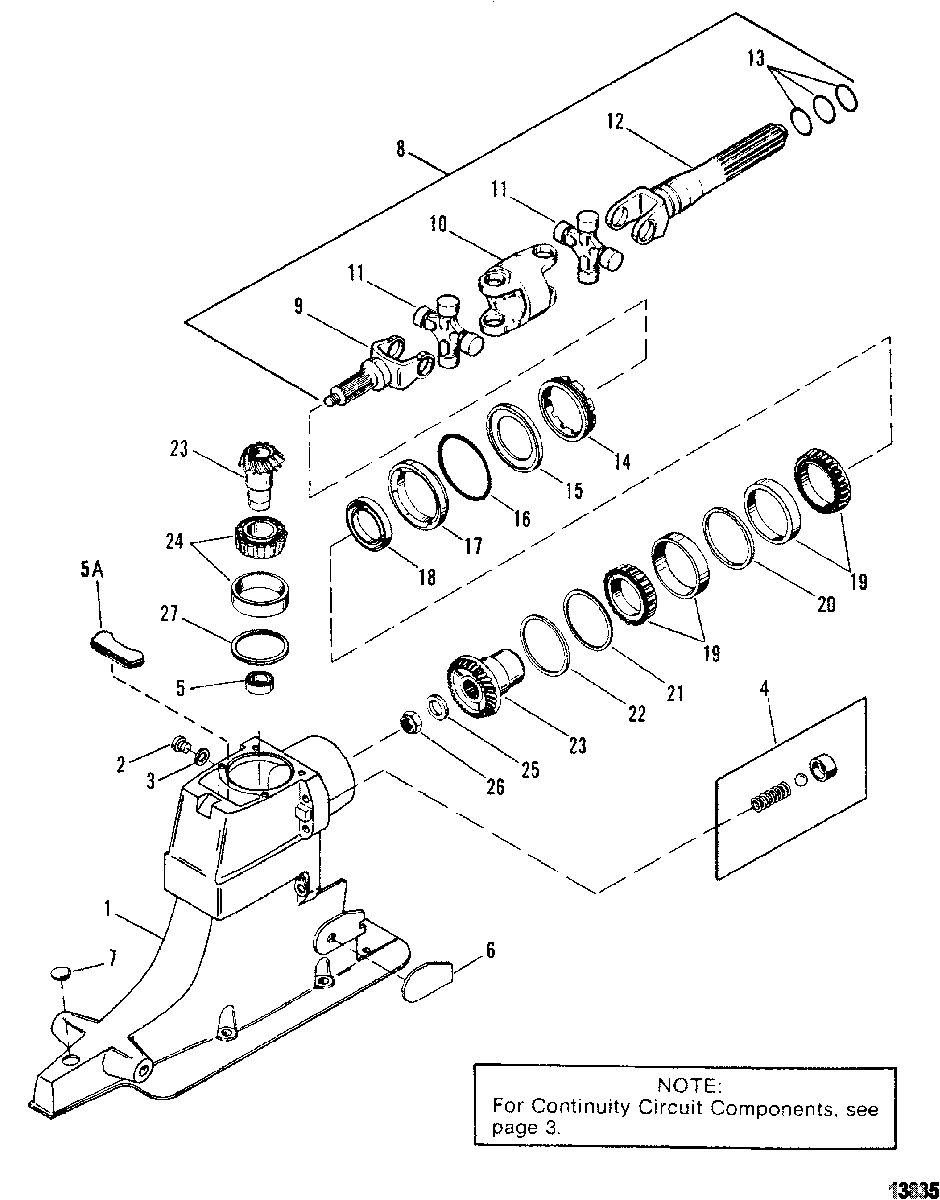

Drive Shaft Housing And Drive Gears для Mercruiser - ALPHA ONE (GEN.II) 1991-1995 0D469859 THRU 0F679999

  • №
    Артикул
    Название
  • 1
    1547-815930A20 HOUSING ASSEMBLY, Driveshaft
    HOUSING ASSEMBLY, Driveshaft
  • 2
    10-79953Q04 SCREW, (.375-16 x .250)
    SCREW, (.375-16 x .250)
  • 3
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 3
    25-805726 O-RING, Rubber
    O-RING, Rubber
  • 4
    24-17997A1 SPRING KIT, Rubber
    SPRING KIT, Rubber
  • 5
    26-66302 SEAL, Oil
    SN# 0M400411 & Below
    SEAL, Oil
    SN# 0M400411 & Below
  • 5
    26-864319 SEAL, Oil
    SN# 0M400412 & Up
    SEAL, Oil
    SN# 0M400412 & Up
  • 5A
    861738 PLUG
    PLUG
  • 6
    8M2015937 WEAR PAD, Port
    WEAR PAD, Port
  • 6
    879346T30 WEAR PAD, Starboard
    WEAR PAD, Starboard
  • 7
    19-824928001 PLUG
    PLUG
  • 8
    814819A2 UNIVERSAL JOINT
    (Coupling Yoke Has Two O-Rings) SN# D869999 & Below
    UNIVERSAL JOINT
    (Coupling Yoke Has Two O-Rings) SN# D869999 & Below
  • 9
    46020T02 YOKE, Gear End
    (Coupling Yoke Has Two O-Rings) SN# D869999 & Below
    YOKE, Gear End
    (Coupling Yoke Has Two O-Rings) SN# D869999 & Below
  • 10
    393831 SOCKET, Center
    (Coupling Yoke Has Two O-Rings) SN# D869999 & Below
    SOCKET, Center
    (Coupling Yoke Has Two O-Rings) SN# D869999 & Below
  • 11
    75832T1 CROSS AND BEARING
    (Coupling Yoke Has Two O-Rings) SN# D869999 & Below
    CROSS AND BEARING
    (Coupling Yoke Has Two O-Rings) SN# D869999 & Below
  • 12
    59830A7 YOKE ASSEMBLY, Coupling End
    (Coupling Yoke Has Two O-Rings) SN# D869999 & Below
    YOKE ASSEMBLY, Coupling End
    (Coupling Yoke Has Two O-Rings) SN# D869999 & Below
  • 13
    25-25439 O-RING, (.862 x .103)
    (Coupling Yoke Has Two O-Rings) SN# D869999 & Below
    O-RING, (.862 x .103)
    (Coupling Yoke Has Two O-Rings) SN# D869999 & Below
  • 8
    814819A2 UNIVERSAL JOINT
    (Coupling Yoke Has Three O-Rings) SN# D870000 & Up
    UNIVERSAL JOINT
    (Coupling Yoke Has Three O-Rings) SN# D870000 & Up
  • 9
    46020T02 YOKE, Gear End
    (Coupling Yoke Has Three O-Rings) SN# D870000 & Up
    YOKE, Gear End
    (Coupling Yoke Has Three O-Rings) SN# D870000 & Up
  • 10
    393831 SOCKET, Center
    (Coupling Yoke Has Three O-Rings) SN# D870000 & Up
    SOCKET, Center
    (Coupling Yoke Has Three O-Rings) SN# D870000 & Up
  • 11
    805536A2 CROSS AND BEARING
    (Coupling Yoke Has Three O-Rings) SN# D870000 & Up
    CROSS AND BEARING
    (Coupling Yoke Has Three O-Rings) SN# D870000 & Up
  • 12
    814819A3 YOKE, Coupler End
    (Coupling Yoke Has Three O-Rings) SN# D870000 & Up
    YOKE, Coupler End
    (Coupling Yoke Has Three O-Rings) SN# D870000 & Up
  • 13
    25-25439 O-RING, (.862 x .103)
    (Coupling Yoke Has Three O-Rings) SN# D870000 & Up
    O-RING, (.862 x .103)
    (Coupling Yoke Has Three O-Rings) SN# D870000 & Up
  • 13
    25-35027 O-RING, (1.046)
    O-RING, (1.046)
  • 14
    8168112 RETAINER
    RETAINER
  • 15
    35983 RING
    RING
  • 16
    25-70937 O-RING
    O-RING
  • 17
    66081A2 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 18
    26-823894 SEAL, Oil
    SEAL, Oil
  • 19
    31-35988A12 BEARING KIT, Roller
    BEARING KIT, Roller
  • 20
    23-35985 SPACER
    SPACER
  • 21
    15-35980A1 SHIM SET
    SHIM SET
  • 22
    23-8M0124132 SHIM, Spacer
    SHIM, Spacer
  • 23
    43-55778A3 GEAR KIT (2.40 Ratio)
    (20-24 Gear Ratio)
    GEAR KIT (2.40 Ratio)
    (20-24 Gear Ratio)
  • 23
    43-55778A3 GEAR KIT (1.98 Ratio)
    (20-24 Gear Ratio)
    GEAR KIT (1.98 Ratio)
    (20-24 Gear Ratio)
  • 23
    43-45814A5 GEAR KIT (1.65 Ratio)
    (24-24 Gear Ratio)
    GEAR KIT (1.65 Ratio)
    (24-24 Gear Ratio)
  • 23
    43-75325A3 GEAR KIT (1.84 Ratio)
    (17-19 Gear Ratio)
    GEAR KIT (1.84 Ratio)
    (17-19 Gear Ratio)
  • 23
    43-18411A2 GEAR KIT (1.50 Ratio)
    (20-22 Gear Ratio)
    GEAR KIT (1.50 Ratio)
    (20-22 Gear Ratio)
  • 24
    31-35990A1 BEARING ASSEMBLY, Roller
    BEARING ASSEMBLY, Roller
  • 24
    31-32573A1 BEARING ASSEMBLY, Roller (1.50 Ratio Only)
    BEARING ASSEMBLY, Roller (1.50 Ratio Only)
  • 25
    12-45810 WASHER
    WASHER
  • 26
    11-22339 NUT, (.625-18)
    NUT, (.625-18)
  • 27
    15-36178A02 SHIM SET
    SHIM SET
  • 28
    26-88397A1 SEAL KIT, Driveshaft Housing
    SEAL KIT, Driveshaft Housing
