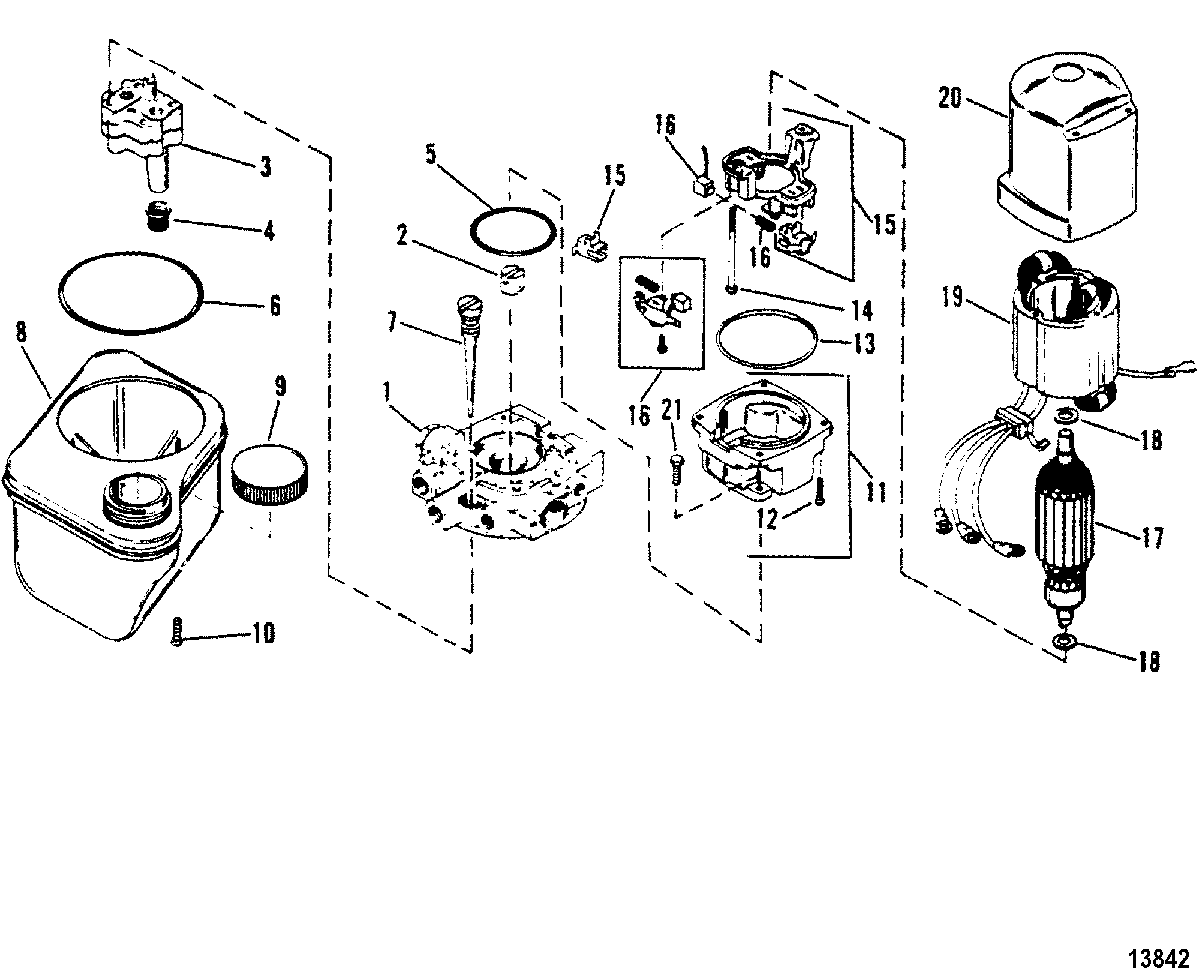

Hydraulic Pump для Mercruiser - ALPHA ONE (GEN.II) 1991-1995 0D469859 THRU 0F679999

  • №
    Артикул
    Название
  • -
    865380A13 PUMP/MOTOR ASSEMBLY
    PUMP/MOTOR ASSEMBLY
  • 1
    808728T ADAPTOR, With Out Screen Connectors
    ADAPTOR, With Out Screen Connectors
  • 1
    808728T ADAPTOR, With Screen Connectors
    ADAPTOR, With Screen Connectors
  • 2
    803852 COUPLING
    COUPLING
  • 3
    18529 PUMP ASSEMBLY, Included Screws
    PUMP ASSEMBLY, Included Screws
  • 4
    35-89496 FILTER
    FILTER
  • 5
    25-89498 O-RING, Motor End
    O-RING, Motor End
  • 6
    25-17645 O-RING, Reservoir End
    O-RING, Reservoir End
  • 7
    41218 DIPSTICK
    DIPSTICK
  • 8
    18525A1 RESERVOIR
    RESERVOIR
  • 9
    36-865448A01 CAP, Oil Reservoir, With Vent Holes
    CAP, Oil Reservoir, With Vent Holes
  • 10
    10-18527 SCREW, Includes O-Rings
    SCREW, Includes O-Rings
  • -
    891736T MOTOR
    MOTOR
  • 11
    891736T END CAP ASSEMBLY
    END CAP ASSEMBLY
  • 12
    891736T SCREW
    SCREW
  • 13
    891736T O-RING
    O-RING
  • 14
    891736T SCREW
    SCREW
  • 15
    891736T HOLDER KIT
    HOLDER KIT
  • 16
    891736T BRUSH KIT
    BRUSH KIT
  • 17
    891736T ARMATURE
    ARMATURE
  • 18
    891736T WASHER
    WASHER
  • 19
    891736T FIELD AND FRAME ASSEMBLY
    FIELD AND FRAME ASSEMBLY
  • 20
    891736T COVER ASSEMBLY
    COVER ASSEMBLY
  • 21
    10-823444 SCREW
    SCREW
  • -
    812498A1 VALVE KIT, Relief
    (Repair Kit)
    VALVE KIT, Relief
    (Repair Kit)
  • -
    812499A1 VALVE KIT, Relief
    (Repair Kit)
    VALVE KIT, Relief
    (Repair Kit)
  • -
    95353A1 VALVE KIT, Relief
    (Repair Kit)
    VALVE KIT, Relief
    (Repair Kit)
  • -
    18545A1 REPAIR KIT
    (Repair Kit)
    REPAIR KIT
    (Repair Kit)
