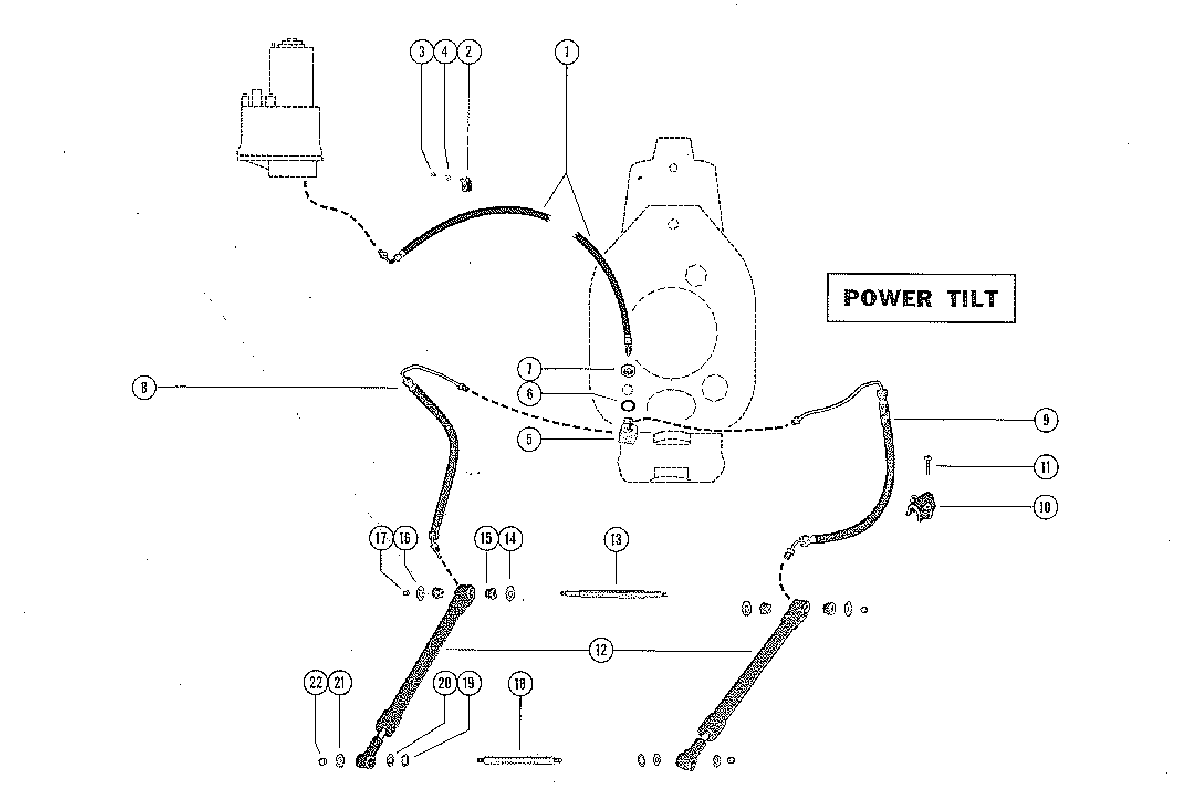

MERCRUISER 120 AND 160 WITH POWER TILT PARTS LIST для Mercruiser - 120/140 1967-1969 2062141 THRU 2791956

  • №
    Артикул
    Название
  • 1
    32-45669 HOSE, LIFT - HYDRAULIC PUMP TO GIMBAL HOUSING (19")
    HOSE, LIFT - HYDRAULIC PUMP TO GIMBAL HOUSING (19")
    7 970 ₽
  • 2
    54-22740 CLIP, LIFT HOSE TO TRANSOM PLATE
    CLIP, LIFT HOSE TO TRANSOM PLATE
    320 ₽
  • 3
    10-35519 SCREW, LIFT HOSE CLIP TO TRANSOM PLATE (1/2")
    SCREW, LIFT HOSE CLIP TO TRANSOM PLATE (1/2")
    0 ₽
  • 4
    8M0084613 "D" WASHER, LIFT HOSE CLIP SCREW
    "D" WASHER, LIFT HOSE CLIP SCREW
    100 ₽
  • 5
    22-36033 CONNECTOR, GIMBAL HOUSING
    CONNECTOR, GIMBAL HOUSING
    11 920 ₽
  • 6
    27-36043 GASKET, GIMBAL HOUSING CONNECTOR
    GASKET, GIMBAL HOUSING CONNECTOR
    230 ₽
  • 7
    11-22339 NUT, GIMBAL HOUSING CONNECTOR
    NUT, GIMBAL HOUSING CONNECTOR
    570 ₽
  • 8
    32-45974 HOSE, HYDRAULIC - GIMBAL HOUSING TO TILT CYLINDER (PORT)
    HOSE, HYDRAULIC - GIMBAL HOUSING TO TILT CYLINDER (PORT)
    6 030 ₽
  • 9
    32-45973 HOSE, HUYDRAULIC - GIMBAL HOUSING TO TILT CYLINDR (STARBOARD)
    HOSE, HUYDRAULIC - GIMBAL HOUSING TO TILT CYLINDR (STARBOARD)
    6 020 ₽
  • 10
    36011 COVER, HYDRAULIC - HOSE TO GIMBAL HOUSING
    COVER, HYDRAULIC - HOSE TO GIMBAL HOUSING
    1 560 ₽
  • 11
    10-36070 SCREW, COVER TO GIMBAL HOUSING (1 1/4")
    SCREW, COVER TO GIMBAL HOUSING (1 1/4")
    580 ₽
  • 12
    45595A1 TILT CYLINDER ASSEMBLY, B-38599A1 REPAIR KIT
    ALSO USED ON THE STANDARD MERCRUISER 120 AND 160 STERN DRIVES.
    TILT CYLINDER ASSEMBLY, B-38599A1 REPAIR KIT
    ALSO USED ON THE STANDARD MERCRUISER 120 AND 160 STERN DRIVES.
    0 ₽
  • 13
    17-45598 PIN, FRONT - CYLINDER TO GIM. RING (10 11/32")
    ALSO USED ON THE STANDARD MERCRUISER 120 AND 160 STERN DRIVES.
    PIN, FRONT - CYLINDER TO GIM. RING (10 11/32")
    ALSO USED ON THE STANDARD MERCRUISER 120 AND 160 STERN DRIVES.
    0 ₽
  • 14
    12-36041 WASHER, FRONT ANCHOR PIN (33/64"I.D.)
    ALSO USED ON THE STANDARD MERCRUISER 120 AND 160 STERN DRIVES.
    WASHER, FRONT ANCHOR PIN (33/64"I.D.)
    ALSO USED ON THE STANDARD MERCRUISER 120 AND 160 STERN DRIVES.
    0 ₽
  • 15
    23-35278 BUSHING, RUBBER - FRONT ANCHOR PIN
    ALSO USED ON THE STANDARD MERCRUISER 120 AND 160 STERN DRIVES.
    BUSHING, RUBBER - FRONT ANCHOR PIN
    ALSO USED ON THE STANDARD MERCRUISER 120 AND 160 STERN DRIVES.
    0 ₽
  • 16
    12-36042 WASHER, FRONT ANCHOR PIN (11/32" I.D.)
    ALSO USED ON THE STANDARD MERCRUISER 120 AND 160 STERN DRIVES.
    WASHER, FRONT ANCHOR PIN (11/32" I.D.)
    ALSO USED ON THE STANDARD MERCRUISER 120 AND 160 STERN DRIVES.
    220 ₽
  • 17
    11-82670911 NUT, FRONT ANCHOR PIN
    ALSO USED ON THE STANDARD MERCRUISER 120 AND 160 STERN DRIVES.
    NUT, FRONT ANCHOR PIN
    ALSO USED ON THE STANDARD MERCRUISER 120 AND 160 STERN DRIVES.
    370 ₽
  • 18
    17-39641 PIN, REAR - CYLINDER TO DRIVE SHAFT HSG. (7 5/32")
    ALSO USED ON THE STANDARD MERCRUISER 120 AND 160 STERN DRIVES.
    PIN, REAR - CYLINDER TO DRIVE SHAFT HSG. (7 5/32")
    ALSO USED ON THE STANDARD MERCRUISER 120 AND 160 STERN DRIVES.
    0 ₽
  • 19
    13-37642 WASHER, WAVE - REAR ANCHOR PIN
    ALSO USED ON THE STANDARD MERCRUISER 120 AND 160 STERN DRIVES.
    WASHER, WAVE - REAR ANCHOR PIN
    ALSO USED ON THE STANDARD MERCRUISER 120 AND 160 STERN DRIVES.
    210 ₽
  • 20
    12-39782 WASHER, RUBBER - REAR ANCHOR PIN
    ALSO USED ON THE STANDARD MERCRUISER 120 AND 160 STERN DRIVES.
    WASHER, RUBBER - REAR ANCHOR PIN
    ALSO USED ON THE STANDARD MERCRUISER 120 AND 160 STERN DRIVES.
    0 ₽
  • 21
    12-8M0042641 WASHER, REAR ANCHOR PIN
    ALSO USED ON THE STANDARD MERCRUISER 120 AND 160 STERN DRIVES.
    WASHER, REAR ANCHOR PIN
    ALSO USED ON THE STANDARD MERCRUISER 120 AND 160 STERN DRIVES.
    130 ₽
  • 22
    11-82671013 NUT, REAR ANCHOR PIN
    ALSO USED ON THE STANDARD MERCRUISER 120 AND 160 STERN DRIVES.
    NUT, REAR ANCHOR PIN
    ALSO USED ON THE STANDARD MERCRUISER 120 AND 160 STERN DRIVES.
    340 ₽
