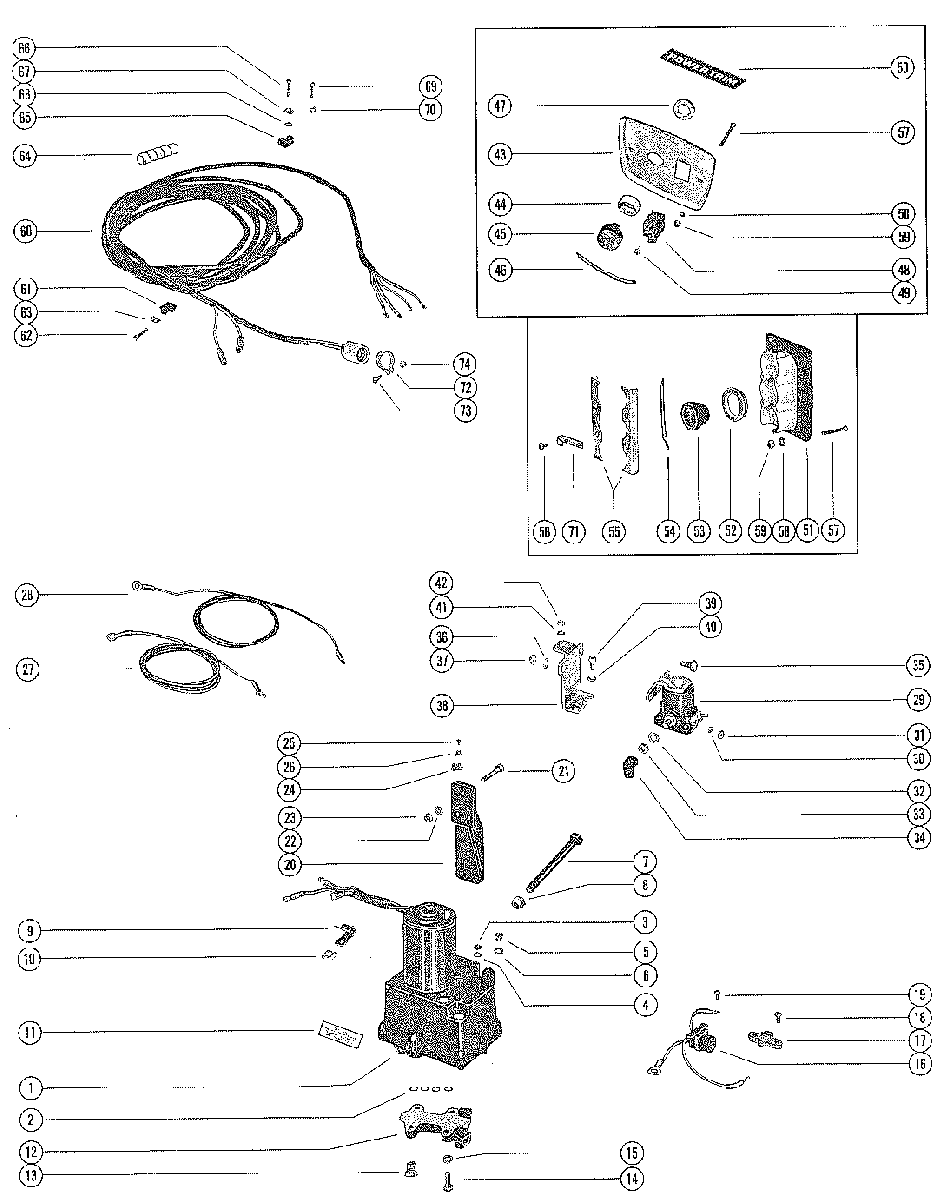

HYDRAULIC PUMP AND CONTROL PANEL (POWER TILT AND POWER TRIM) для Mercruiser - 120/140 1967-1969 2062141 THRU 2791956

№

Артикул

Название
1

45060A7 HYDRAULIC PUMP ASSEMBLY
SEE B4 FOR PARTS BREAKDOWN

HYDRAULIC PUMP ASSEMBLY
SEE B4 FOR PARTS BREAKDOWN
2

25-48171 "O" RING, HYDRAULIC PUMP TO CONTROL VALVE

"O" RING, HYDRAULIC PUMP TO CONTROL VALVE
3

10-22028 SCREW, VENT - HYDRAULIC PUMP

SCREW, VENT - HYDRAULIC PUMP
4

13-46917 LOCKWASHER, SEALING - VENT SCREW

LOCKWASHER, SEALING - VENT SCREW
5

10-79953Q04 SCREW, FILLER - HYDRAULIC PUMP

SCREW, FILLER - HYDRAULIC PUMP
6

12-191833 WASHER, SEALING - HYDRAULIC PUMP FILLER SCREW

WASHER, SEALING - HYDRAULIC PUMP FILLER SCREW
7

10-29877 SCREW, HYDRALULIC PUMP TO TRANSOM PLATE (3 1/4")

SCREW, HYDRALULIC PUMP TO TRANSOM PLATE (3 1/4")
7

10-45765 SCREW, HYDRAULIC PUMP TO TRANSOM PLATE (4 1/4")

SCREW, HYDRAULIC PUMP TO TRANSOM PLATE (4 1/4")
8

11-82670911 NUT, HYDRAULIC PUMP SCREW

NUT, HYDRAULIC PUMP SCREW
9

54-37282 CLAMP, HYDRAULIC PUMP HARNESS

CLAMP, HYDRAULIC PUMP HARNESS
10

37281 "D" WASHER, HYDRAULIC PUMP HARNESS CLAMP

"D" WASHER, HYDRAULIC PUMP HARNESS CLAMP
11

38-55823 DECAL, INSTRUCTIONS - HYDRAULIC PUMP

DECAL, INSTRUCTIONS - HYDRAULIC PUMP
12

45382A1 CONTROL VALVE ASSEMBLY

CONTROL VALVE ASSEMBLY
12

45764A2 CONTROL VALVE ASSEMBLY

CONTROL VALVE ASSEMBLY
12

48077T3 CONTROL VALVE ASSEMBLY

CONTROL VALVE ASSEMBLY
--

25-48171 "O" RING, HYDRAULIC PUMP TO CONTROL VALVE
SEE REFERENCE #2

"O" RING, HYDRAULIC PUMP TO CONTROL VALVE
SEE REFERENCE #2
13

22-38609 PLUG, CONTROL VALVE (3/8-24")

PLUG, CONTROL VALVE (3/8-24")
13

22-38609 PLUG, CONTROL VALVE (3/8-24")

PLUG, CONTROL VALVE (3/8-24")
14

10-21091 SCREW, CONTROL VALVE TO HYDRAULIC PUMP (1 1/8")

SCREW, CONTROL VALVE TO HYDRAULIC PUMP (1 1/8")
15

13-26992 LOCKWASHER, CONTROL VALVE SCREW

LOCKWASHER, CONTROL VALVE SCREW
16

45325A1 CONNECTOR AND HARNESS

CONNECTOR AND HARNESS
17

45559 TERMINAL BLOCK, HYDRAULIC PUMP

TERMINAL BLOCK, HYDRAULIC PUMP
18

10-72169 SCREW, TERMINAL BLOCK TO HYDRAULIC PUMP (1/2")

SCREW, TERMINAL BLOCK TO HYDRAULIC PUMP (1/2")
19

10-62568 SCREW, HARNESS LEADS TO TERMINAL BLOCK (3/8")

SCREW, HARNESS LEADS TO TERMINAL BLOCK (3/8")
20

94225A1 BRACKET ASSEMBLY, PUMP MOUNTING

BRACKET ASSEMBLY, PUMP MOUNTING
21

10-26066 SCREW, PUMP MOUNTING BRACKET

SCREW, PUMP MOUNTING BRACKET
22

12-20546 WASHER, PUMP MOUNTING BRACKET SCREW

WASHER, PUMP MOUNTING BRACKET SCREW
23

11-82670911 NUT, PUMP MOUNTING BRACKET SCREW

NUT, PUMP MOUNTING BRACKET SCREW
24

54-22740 CLAMP, PUMP MOUNTING BRACKET

CLAMP, PUMP MOUNTING BRACKET
25

10-35519 SCREW, CLAMP TO MOUNTING BRACKET

SCREW, CLAMP TO MOUNTING BRACKET
26

8M0084613 "D" WASHER, CLAMP ATTACHING SCREW

"D" WASHER, CLAMP ATTACHING SCREW
27

45552 BATTERY LEAD (POSITIVE)

BATTERY LEAD (POSITIVE)
28

45551 BATTERY LEAD ( NEGATIVE)

BATTERY LEAD ( NEGATIVE)
29

25661T1 STARTER SOLENOID

STARTER SOLENOID
30

90634 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)

LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
31

11-68219 NUT, STARTER SOLENOID TERMINAL (#10)

NUT, STARTER SOLENOID TERMINAL (#10)
32

13-26993 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")

LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
33

11-22053 NUT, STARTER SOLENOID TERMINAL (5/16")

NUT, STARTER SOLENOID TERMINAL (5/16")
34

46265 BOOT, RUBBER - STARTER SOLENOID TERMINAL

BOOT, RUBBER - STARTER SOLENOID TERMINAL
35

10-34290 SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")

SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")
36

13-26992 LOCKWASHER, STARTER SOLENOID SCREW

LOCKWASHER, STARTER SOLENOID SCREW
37

11-21825 NUT, STARTER SOLENOID SCREW

NUT, STARTER SOLENOID SCREW
38

74407T BRACKET, MOUNTING - STARTER SOLENOID

BRACKET, MOUNTING - STARTER SOLENOID
39

10-21140 SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")

SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")
40

13-26992 LOCKWASHER, MOUNTING BRACKET SCREW

LOCKWASHER, MOUNTING BRACKET SCREW
41

13-27660 LOCKWASHER, HYDRAULIC PUMP THRU BOLT

LOCKWASHER, HYDRAULIC PUMP THRU BOLT
42

11-68219 NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT

NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT
--

45448A7 CONTROL PANEL ASSEMBLY, COMPLETE

CONTROL PANEL ASSEMBLY, COMPLETE
--

45341A6 CONTROL PANEL ASSEMBLY, COMPLETE

CONTROL PANEL ASSEMBLY, COMPLETE
--

48413A5 CONTROL PANEL ASSEMBLY, COMPLETE
GREEN, WHITE AND YELLOW PUSH BUTTONS

CONTROL PANEL ASSEMBLY, COMPLETE
GREEN, WHITE AND YELLOW PUSH BUTTONS
--

48413A5 CONTROL PANEL ASSEMBLY, COMPLETE
RED/GREEN, WHITE AND RED PUSH BUTTONS

CONTROL PANEL ASSEMBLY, COMPLETE
RED/GREEN, WHITE AND RED PUSH BUTTONS
43

35978 PANEL, CONTROL

PANEL, CONTROL
44

23-45773 SPACER, IGNITION SWITCH

SPACER, IGNITION SWITCH
45

54211T SWITCH, IGNITION (WITH KEY #30431)
WHEN ORDERING REPLACEMENT KEY ALSO LIST NUMBER STAMED ON KEY

SWITCH, IGNITION (WITH KEY #30431)
WHEN ORDERING REPLACEMENT KEY ALSO LIST NUMBER STAMED ON KEY
45

54212A9 SWITCH, IGNITION (WITH KEY #30431)
WHEN ORDERING REPLACEMENT KEY ALSO LIST NUMBER STAMED ON KEY

SWITCH, IGNITION (WITH KEY #30431)
WHEN ORDERING REPLACEMENT KEY ALSO LIST NUMBER STAMED ON KEY
46

45340 JUMPER WIRE, IGNITION SWITCH TO ROCKER SWITCH (RED - 4")

JUMPER WIRE, IGNITION SWITCH TO ROCKER SWITCH (RED - 4")
47

37275 BEZEL, IGNITION SWITCH TO CONTROL PANEL

BEZEL, IGNITION SWITCH TO CONTROL PANEL
48

34959 SWITCH, ROCKER - C0NTROL PANEL

SWITCH, ROCKER - C0NTROL PANEL
49

10-32989 SCREW, ROCKER SWITCH TO CONTROL PANEL (5/16")

SCREW, ROCKER SWITCH TO CONTROL PANEL (5/16")
50

37-45889 DECAL, CONTROL PANEL (POWER TILT)

DECAL, CONTROL PANEL (POWER TILT)
50

37-45891 DECAL, CONTROL PANEL (POWER TRIM)

DECAL, CONTROL PANEL (POWER TRIM)
51

48413 PANEL, CONTROL

PANEL, CONTROL
52

48055 PUSH BUTTON, CONTROL PANEL (OUT - GREEN)

PUSH BUTTON, CONTROL PANEL (OUT - GREEN)
52

48056 PUSH BUTTON, CONTROL PANEL (DOWN/IN - WHITE)

PUSH BUTTON, CONTROL PANEL (DOWN/IN - WHITE)
52

48057 PUSH BUTTON, CONTROL PANEL (UP - YELLOW)

PUSH BUTTON, CONTROL PANEL (UP - YELLOW)
52

53108 PUSH BUTTON, CONTROL PANEL (UP/OUT - RED/ GREEN)

PUSH BUTTON, CONTROL PANEL (UP/OUT - RED/ GREEN)
52

53109 PUSH BUTTON, CONTROL PANEL (IN - WHITE)

PUSH BUTTON, CONTROL PANEL (IN - WHITE)
52

53110 PUSH BUTTON, CONTROL PANEL (UP - RED)

PUSH BUTTON, CONTROL PANEL (UP - RED)
53

29759 SWITCH, PUSH BUTTON

SWITCH, PUSH BUTTON
54

48078 JUMPER WIRE, PUSH BUTTON SWITCH

JUMPER WIRE, PUSH BUTTON SWITCH
54

53107 JUMPER WIRE, PUSH BUTTON SWITCH

JUMPER WIRE, PUSH BUTTON SWITCH
55

48438 RETAINER, SWITCH TO CONTROL PANEL

RETAINER, SWITCH TO CONTROL PANEL
56

10-48409 SCREW, SWITCH RETAINER TO CONTROL PANEL

SCREW, SWITCH RETAINER TO CONTROL PANEL
57

10-32866 SCREW, CONTROL PANEL TO BOAT (2")

SCREW, CONTROL PANEL TO BOAT (2")
57

10-32866 SCREW, CONTROL PANEL TO BOAT (2")

SCREW, CONTROL PANEL TO BOAT (2")
58

12-33110 WASHER, FIBER - CONTROL PANEL SCREW

WASHER, FIBER - CONTROL PANEL SCREW
58

12-24676 WASHER, CONTROL PANEL SCREW

WASHER, CONTROL PANEL SCREW
59

11-8267086 NUT, CONTROL PANEL SCREW

NUT, CONTROL PANEL SCREW
59

11-8267086 NUT, CONTROL PANEL SCREW

NUT, CONTROL PANEL SCREW
60

45448 HARNESS, CONTROL PANEL

HARNESS, CONTROL PANEL
60

84-87394A20 HARNESS, CONTROL PANEL

HARNESS, CONTROL PANEL
61

54-22875 CLAMP, HARNESS TO BOAT

CLAMP, HARNESS TO BOAT
62

10-35401 SCREW, HARNESS CLAMP TO BOAT (1")

SCREW, HARNESS CLAMP TO BOAT (1")
63

8M0084613 "D" WASHER, HARNESS CLAMP ATTACHING SCREW

"D" WASHER, HARNESS CLAMP ATTACHING SCREW
63

8M0084613 "D" WASHER, HARNESS CLAMP ATTACHING SCREW

"D" WASHER, HARNESS CLAMP ATTACHING SCREW
64

33865 BINDER, NYLON - CONTROL PANEL HARNESS

BINDER, NYLON - CONTROL PANEL HARNESS
65

54-23567 CLAMP, HARNESS ATTACHING

CLAMP, HARNESS ATTACHING
66

10-35401 SCREW, HARNESS CLAMP TO BOAT (1")

SCREW, HARNESS CLAMP TO BOAT (1")
66

10-35401 SCREW, HARNESS CLAMP TO BOAT (1")

SCREW, HARNESS CLAMP TO BOAT (1")
67

8M0084613 "D" WASHER, HARNESS CLAMP ATTACHING SCREW

"D" WASHER, HARNESS CLAMP ATTACHING SCREW
67

8M0084613 "D" WASHER, HARNESS CLAMP ATTACHING SCREW

"D" WASHER, HARNESS CLAMP ATTACHING SCREW
68

12-20878 WASHER, HARNESS CLAMP ATTACHING SCREW

WASHER, HARNESS CLAMP ATTACHING SCREW
68

12-24676 WASHER, HARNESS CLAMP ATTACHING SCREW

WASHER, HARNESS CLAMP ATTACHING SCREW
69

10-20644 SCREW, HARNESS CLAMP TO BOAT (1")

SCREW, HARNESS CLAMP TO BOAT (1")
70

11-68219 NUT, HARNESS CLAMP ATTACHING SCREW

NUT, HARNESS CLAMP ATTACHING SCREW
71

53517 ANCHOR STRIP

ANCHOR STRIP
72

95814 CLAMP, HARNESS FASTENING

CLAMP, HARNESS FASTENING
73

10-29227 SCREW, HARNESS FASTENING CLAMP

SCREW, HARNESS FASTENING CLAMP
74

11-34388 NUT, HARNESS FASTENING SCREW

NUT, HARNESS FASTENING SCREW
