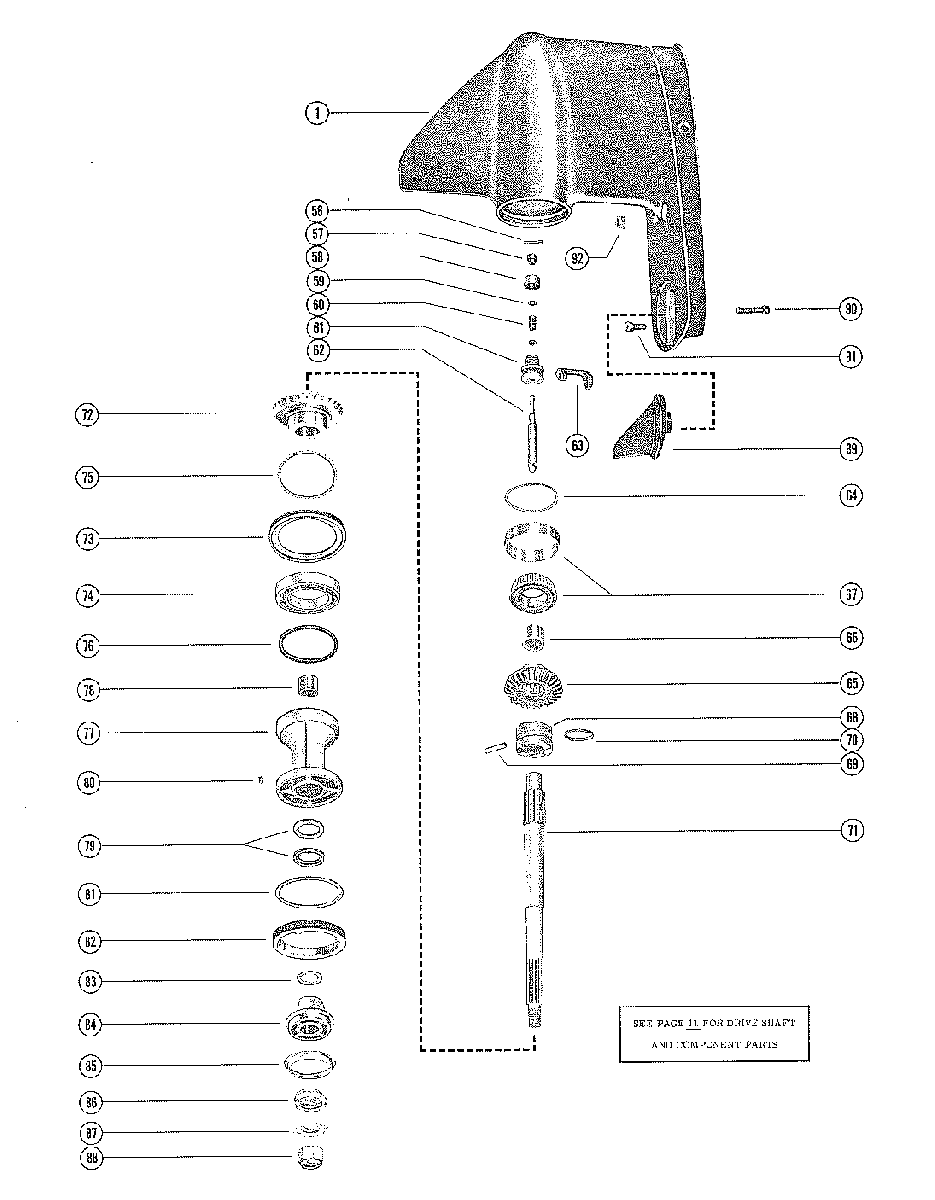

GEAR HOUSING ASSEMBLY для Mercruiser - 120/140 1967-1969 2062141 THRU 2791956

  • №
    Артикул
    Название
  • -
    1623-4110A5 GEAR HOUSING ASSEMBLY, COMPLETE
    GEAR HOUSING ASSEMBLY, COMPLETE
  • 1
    1623-2764A1 GEAR HOUSING ASSEMBLY (ALUMINUM)
    GEAR HOUSING ASSEMBLY (ALUMINUM)
  • 1
    1623-5364A4 GEAR HOUSING ASSEMBLY (PLASTIC)
    GEAR HOUSING ASSEMBLY (PLASTIC)
  • 56
    18-469501 COTTER PIN, CLUTCH ACTUATING SHAFT
    COTTER PIN, CLUTCH ACTUATING SHAFT
  • 57
    N.S.S. SLEEVE, ADJUSTING REPLACED BY 19755A4
    SLEEVE, ADJUSTING REPLACED BY 19755A4
  • 58
    N.S.S. RETAINER, SPRING REPLACED BY 19755A4
    RETAINER, SPRING REPLACED BY 19755A4
  • 59
    N.S.S. WASHER REPLACED BY 19755A4
    WASHER REPLACED BY 19755A4
  • 60
    N.S.S. SPRING REPLACED BY 19755A4
    SPRING REPLACED BY 19755A4
  • 61
    N.S.S. SPOOL REPLACED BY 19755A4
    SPOOL REPLACED BY 19755A4
  • 62
    N.S.S. SHAFT REPLACED BY 19755A4
    SHAFT REPLACED BY 19755A4
  • 63
    37966 SHIFT CRANK
    SHIFT CRANK
  • 64
    15-47397A1 SHIM
    SHIM
  • 65
    43-35930A2 FORWARD GEAR ASSEMBLY
    FORWARD GEAR ASSEMBLY
  • 66
    31-30895T ROLLER BEARING, FORWARD GEAR
    ROLLER BEARING, FORWARD GEAR
  • 67
    31-35928T1 ROLLER BEARING
    ROLLER BEARING
  • 68
    52-37963 CLUTCH
    CLUTCH
  • 69
    17-8M0100263 CROSS PIN
    CROSS PIN
  • 70
    24-30893 SPRING, RETAINER - CROSS PIN
    SPRING, RETAINER - CROSS PIN
  • 71
    44-45452 PROPELLER SHAFT
    PROPELLER SHAFT
  • 72
    43-37964 REVERSE GEAR
    REVERSE GEAR
  • 73
    35915 THRUST RING, BEARING CARRIER
    THRUST RING, BEARING CARRIER
  • 74
    30-88957T BALL BEARING, REVERSE GEAR
    BALL BEARING, REVERSE GEAR
  • 75
    15-31535A1 SHIM
    SHIM
  • 76
    25-31534 O-RING, BEARING CARRIER
    O-RING, BEARING CARRIER
  • 77
    52835A2 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 78
    31-30956T ROLLER BEARING
    ROLLER BEARING
  • 79
    26-76868 OIL SEAL
    OIL SEAL
  • 80
    28-30281 KEY
    KEY
  • 81
    12-31536 WASHER, GEAR HOUSING COVER (ALUMINUM)
    WASHER, GEAR HOUSING COVER (ALUMINUM)
  • 81
    14-79447 TAB, WASHER, GEAR HOUSING COVER (PLASTIC)
    TAB, WASHER, GEAR HOUSING COVER (PLASTIC)
  • 82
    8M2000347 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 83
    12-45450 THRUST WASHER, BEARING CARIER
    THRUST WASHER, BEARING CARIER
  • 84
    45451A1 THRUST HUB AND WASHER ASSEMBLY
    THRUST HUB AND WASHER ASSEMBLY
  • 85
    12-35965 WASHER, CUPPED
    WASHER, CUPPED
  • 86
    12-31211Q03 WASHER, SPLINED - PROPELLER SHAFT
    WASHER, SPLINED - PROPELLER SHAFT
  • 87
    14-816629Q TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 88
    11-29594 PROPELLER NUT
    PROPELLER NUT
  • 89
    97-31640Q4 TRIM TAB ASSEMBLY (120)
    TRIM TAB ASSEMBLY (120)
  • 89
    34127T2 TRIM TAB ASSEMBLY (140/160)
    TRIM TAB ASSEMBLY (140/160)
  • 90
    10-32470 SCREW, TRIM TAB (1-3/4")
    SCREW, TRIM TAB (1-3/4")
  • 91
    10-30206 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
    SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
  • 92
    11-34933 NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD
    NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD
