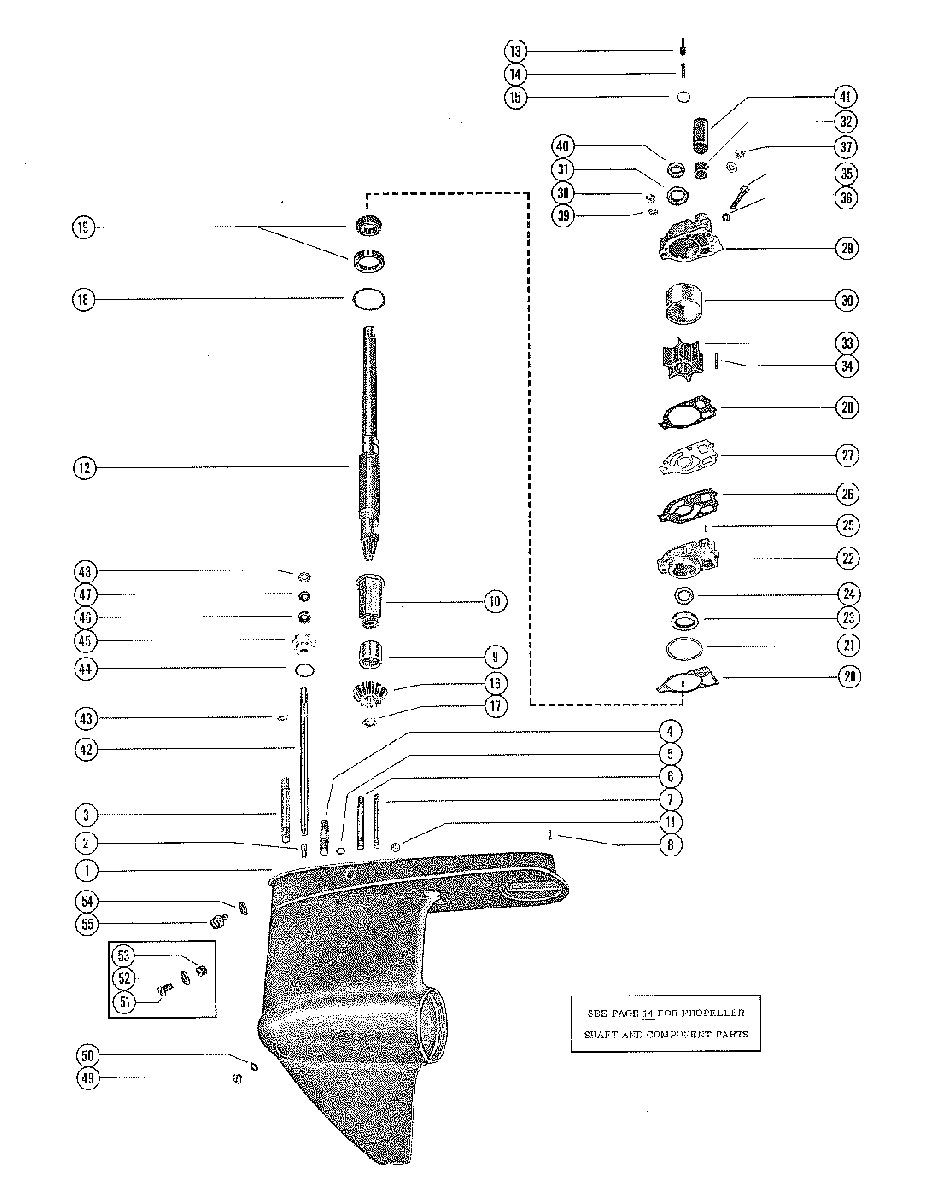

GEAR HOUSING ASSEMBLY, COMPLETE для Mercruiser - 120/140 1967-1969 2062141 THRU 2791956

  • №
    Артикул
    Название
  • -
    1623-4110A5 GEAR HOUSING ASSEMBLY, COMPLETE (ALUMINUM WATER PUMP )
    SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE (ALUMINUM WATER PUMP )
    SEE NOTE BELOW
  • -
    1623-4110A5 GEAR HOUSING ASSEMBLY, COMPLETE (PLASTIC WATER PUMP )
    SEE NOTE BELOW
    GEAR HOUSING ASSEMBLY, COMPLETE (PLASTIC WATER PUMP )
    SEE NOTE BELOW
  • 1
    1623-2764A1 GEAR HOUSING ASSEMBLY (ALUMINUM)
    GEAR HOUSING ASSEMBLY (ALUMINUM)
  • 1
    1623-5356A4 GEAR HOUSING ASSEMBLY (PLASTIC) - USES B-31-36387A1 BEARING
    SEE REF #19
    GEAR HOUSING ASSEMBLY (PLASTIC) - USES B-31-36387A1 BEARING
    SEE REF #19
  • 1
    1623-5356A4 GEAR HOUSING ASSEMBLY(PLASTIC) - USES B-31-53079A1 BEARING
    SEE REF #19
    GEAR HOUSING ASSEMBLY(PLASTIC) - USES B-31-53079A1 BEARING
    SEE REF #19
  • 2
    17-379721 PIN, SHIFT CRANK - GEAR HOUSING
    PIN, SHIFT CRANK - GEAR HOUSING
  • 3
    16-46911 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3 3/16 )
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3 3/16 )
  • 4
    16-56298 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 )
    STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2 )
  • 5
    26-455771 SEAL, GEAR HOUSING
    SEAL, GEAR HOUSING
  • 6
    16-8M0034463 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8 )
    STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8 )
  • 7
    16-306671 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8)
    STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8)
  • 8
    17-8M0084726 PIN, DOWEL - GEAR HOUSING TO DRIVE SHAFT HOUSING
    PIN, DOWEL - GEAR HOUSING TO DRIVE SHAFT HOUSING
  • 9
    31-35934A1 BEARING, ROLLER DRIVE SHAFT
    BEARING, ROLLER DRIVE SHAFT
  • 10
    23-98621 SLEEVE, THREADED - GEAR HOUSING
    EARLY MODELS ONLY
    SLEEVE, THREADED - GEAR HOUSING
    EARLY MODELS ONLY
  • 11
    19-38148 WELCH PLUG, GEAR HOUSING
    EARLY MODELS ONLY
    WELCH PLUG, GEAR HOUSING
    EARLY MODELS ONLY
  • 12
    45-36386A1 DRIVE SHAFT ASSEMBLY
    DRIVE SHAFT ASSEMBLY
  • 13
    17-30545 PIN, DRIVE SHAFT
    PIN, DRIVE SHAFT
  • 14
    24-34576 SPRING, COMPRESSION - DRIVE SHAFT
    SPRING, COMPRESSION - DRIVE SHAFT
  • 15
    25-30613 "O" RING, UPPER - DRIVE SHAFT
    "O" RING, UPPER - DRIVE SHAFT
  • 16
    43-55812T GEAR, PINION - DRIVE SHAFT
    GEAR, PINION - DRIVE SHAFT
  • 17
    11-35921 NUT, PINION - GEAR TO DRIVE SHAFT
    NUT, PINION - GEAR TO DRIVE SHAFT
  • 18
    15-57007A1 SHIM, DRIVE SHAFT BEARING TO GEAR HOUSING (.002-3-5-10 )
    SHIM, DRIVE SHAFT BEARING TO GEAR HOUSING (.002-3-5-10 )
  • 19
    31-36387A1 TAPERED ROLLER BEARING ASSEMBLY, DRIVE SHAFT
    IDENTIFICATION: STAMPED #M84510 ON CUP)
    TAPERED ROLLER BEARING ASSEMBLY, DRIVE SHAFT
    IDENTIFICATION: STAMPED #M84510 ON CUP)
  • 19
    31-53079A1 TAPERED ROLLER BEARING ASSEMBLY, DIRVE SHAFT
    IDENTIFICATION: STAMPED #M15520 ON CUP)
    TAPERED ROLLER BEARING ASSEMBLY, DIRVE SHAFT
    IDENTIFICATION: STAMPED #M15520 ON CUP)
  • 20
    27-856704 GASKET, WATER PUMP BASE TO GEAR HOUSING
    GASKET, WATER PUMP BASE TO GEAR HOUSING
  • 21
    25-33145 "O"RING, WATER PUMP BASE
    "O"RING, WATER PUMP BASE
  • 22
    46-48748A1 WATER PUMP BASE ASSEMBLY (PLASTIC)
    WATER PUMP BASE ASSEMBLY (PLASTIC)
  • 23
    26-89238 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 24
    26-16977 OIL SEAL, WATER PUMP BASE
    OIL SEAL, WATER PUMP BASE
  • 25
    17-8M0084627 DOWEL PIN, WATER PUMP BASE WATER PUMP BODY
    DOWEL PIN, WATER PUMP BASE WATER PUMP BODY
  • 26
    27-8M0090319 GASKET, LOWER - WATER PUMP BASE TO FACE PLACTE
    GASKET, LOWER - WATER PUMP BASE TO FACE PLACTE
  • 27
    324351 PLATE, FACE -WATER PUMP BASE TO WATER PUMP BODY
    PLATE, FACE -WATER PUMP BASE TO WATER PUMP BODY
  • 28
    27-858524 GASKET, UPPER - FACE PLATE TO WATER PUMP BODY
    GASKET, UPPER - FACE PLATE TO WATER PUMP BODY
  • 29
    46-96148A8 WATER PUMP BODY ASSEMBLY (ALUMINUM)
    WATER PUMP BODY ASSEMBLY (ALUMINUM)
  • 29
    46-96148T1 WATER PUMP BODY ASSEMBLY (PLASTIC)
    WATER PUMP BODY ASSEMBLY (PLASTIC)
  • 30
    30915 INSERT, WATER PUMP BODY (ALUMINUM)
    INSERT, WATER PUMP BODY (ALUMINUM)
  • 30
    48752T INSERT, WATER PUMP BODY (PLASTIC)
    INSERT, WATER PUMP BODY (PLASTIC)
  • 31
    26-16977 OIL SEAL, WATER PUMP BODY
    OIL SEAL, WATER PUMP BODY
  • 32
    26-38970 SEAL, RUBBER - WATER INLET TUBE
    SEAL, RUBBER - WATER INLET TUBE
  • 33
    47-89984T4 IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 34
    17-8M0034466 PIN, IMPELLER DRIVE
    PIN, IMPELLER DRIVE
  • 35
    10-30720 SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/4") ALUMINUM
    SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/4") ALUMINUM
  • 36
    13-26992 LOCKWASHER, WATER PUMP BODY SCREW ALUMINUM
    LOCKWASHER, WATER PUMP BODY SCREW ALUMINUM
  • 37
    11-35888 NUT, WATER PUMP BODY STUDS (1/4-28) ALUMINUM
    NUT, WATER PUMP BODY STUDS (1/4-28) ALUMINUM
  • 38
    11-82670911 NUT, WATER PUMP BODY STUD (5/16-24) ALUMINUM
    NUT, WATER PUMP BODY STUD (5/16-24) ALUMINUM
  • 35
    10-53155 SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/2") PLASTIC
    SCREW, WATER PUMP BODY TO GEAR HOUSING (2 1/2") PLASTIC
  • 36
    12-36001 WASHER, WATER PUMP BODY SCREW PLASTIC
    WASHER, WATER PUMP BODY SCREW PLASTIC
  • 37
    11-826709109 NUT, WATER PUMP BODY STUDS (1/4-28) PLASTIC
    NUT, WATER PUMP BODY STUDS (1/4-28) PLASTIC
  • 38
    11-826709111 NUT, WATER PUMP BODY STUD (5/16-24) PLASTIC
    NUT, WATER PUMP BODY STUD (5/16-24) PLASTIC
  • 39
    12-29245 WASHER, WATER PUMP BODY STUD PLASTIC
    WASHER, WATER PUMP BODY STUD PLASTIC
  • 40
    25-30271 RING, RUBBE - CENTRIFUGAL SLINGER (DRIVE SHAFT)
    RING, RUBBE - CENTRIFUGAL SLINGER (DRIVE SHAFT)
  • 41
    23-29804T SLEEVE, GUIDE - WATER INLET TUBE
    SLEEVE, GUIDE - WATER INLET TUBE
  • 42
    774811 SHAFT, SHIFT - LOWER
    SHAFT, SHIFT - LOWER
  • 43
    53-29641 CLIP, RETAINING - SHIFT SHAFT
    CLIP, RETAINING - SHIFT SHAFT
  • 44
    25-25439 "O" RING, SHIFT SHAFT BUSHING
    "O" RING, SHIFT SHAFT BUSHING
  • 45
    23-8M0112749 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 46
    26-892361 OIL SEAL, SHIFT SHAFT BUSHING
    OIL SEAL, SHIFT SHAFT BUSHING
  • 47
    12-31266 WASHER, RUBBER - SHIFT SHAFT BUSHING
    WASHER, RUBBER - SHIFT SHAFT BUSHING
  • 48
    12-8M0042641 WASHER, SHIFT SHAFT
    WASHER, SHIFT SHAFT
  • 49
    10-79953Q04 SCREW, GEAR HOUSING GREASE FILLER AND VENT HOLE
    SCREW, GEAR HOUSING GREASE FILLER AND VENT HOLE
  • 50
    12-191833 WASHER, GEAR HOUSING GREASE FILLER AND VENT HOLE SCREW
    WASHER, GEAR HOUSING GREASE FILLER AND VENT HOLE SCREW
  • 51
    10-45582 SCREW, GEAR HOUSING FLUSHING HOLE ALUMINUM
    SCREW, GEAR HOUSING FLUSHING HOLE ALUMINUM
  • 52
    27-29586 GASKET, GEAR HOUSING FLUSHING HOLE SCREW ALUMINUM
    GASKET, GEAR HOUSING FLUSHING HOLE SCREW ALUMINUM
  • 53
    26-45583 SEAL, GEAR HOUSING FLUSHING HOLE SCREW ALUMINUM
    SEAL, GEAR HOUSING FLUSHING HOLE SCREW ALUMINUM
  • 54
    12-49221 WASHER, FLUSH PLUG - GEAR HOUSING FLUSHING HOLE PLASTIC
    WASHER, FLUSH PLUG - GEAR HOUSING FLUSHING HOLE PLASTIC
  • 55
    19-48751 PLUG, FLUSH - GEAR HOUSING FLUSHING HOLE PLASTIC
    PLUG, FLUSH - GEAR HOUSING FLUSHING HOLE PLASTIC
