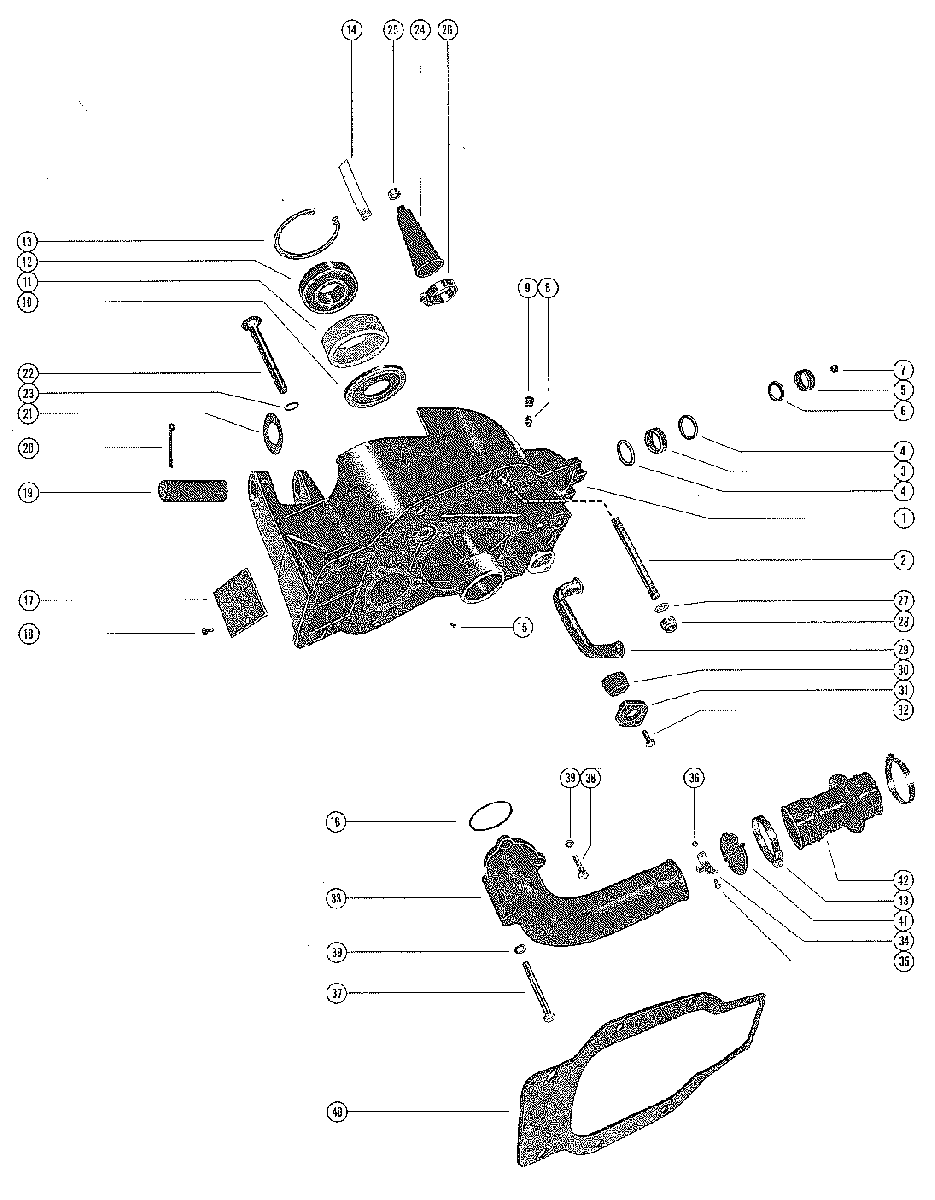

GIMBAL HOUSING ASSEMBLY AND EXHAUST ELBOW для Mercruiser - 120/140 1967-1969 2062141 THRU 2791956
-
№АртикулНазвание
-
160187A1 GIMBAL HOUSING ASSEMBLY (STANDARD)GIMBAL HOUSING ASSEMBLY (STANDARD)
-
160188A1 GIMBAL HOUSING ASSEMBLY (POWER TILT)GIMBAL HOUSING ASSEMBLY (POWER TILT)
-
160189A1 GIMBAL HOUSING ASSEMBLY (POWER TRIM)GIMBAL HOUSING ASSEMBLY (POWER TRIM)
-
216-56296 STUD, GIMBAL HOUSING TO TRANSON PLATE (4 3/4")STUD, GIMBAL HOUSING TO TRANSON PLATE (4 3/4")
-
331-32536 BEARING, ROLLER - GIMBAL HOUSING (LOWER)BEARING, ROLLER - GIMBAL HOUSING (LOWER)
-
426-32911 OIL SEAL, LOWER GIMBAL HOUSING ROLLER BEARINGOIL SEAL, LOWER GIMBAL HOUSING ROLLER BEARING
-
523-38634 BUSHING, SYNTHANE - GIMBAL HOUSING (UPPER)BUSHING, SYNTHANE - GIMBAL HOUSING (UPPER)
-
626-32540 OIL SEAL, UPPER GIMBAL HOUSING BUSHINGOIL SEAL, UPPER GIMBAL HOUSING BUSHING
-
722-390721 PLUG, PIPE - GIMBAL HOUSINGPLUG, PIPE - GIMBAL HOUSING
-
822-74036 FITTING, GREASE - GIMBAL HOUSINGFITTING, GREASE - GIMBAL HOUSING
-
919-77633Q LUBRICAP, GIMBAL HOUSING GREASE FITTINGLUBRICAP, GIMBAL HOUSING GREASE FITTING
-
1026-88416 SEAL, GREASE - GIMBAL HOUSINGSEAL, GREASE - GIMBAL HOUSING
-
1123-35130 ADAPTOR, BEARING CARRIERADAPTOR, BEARING CARRIER
-
1230-36418 BEARING, BALL - GIMBAL HOUSINGBEARING, BALL - GIMBAL HOUSING
-
1353-35128 RING, RETAINING - BEARING CARRIER (LARGE)RING, RETAINING - BEARING CARRIER (LARGE)
-
1415-35244A1 SHIM, GIMBAL HOUSING BEARING (.002-3-4-5-6-7-8-10)SHIM, GIMBAL HOUSING BEARING (.002-3-4-5-6-7-8-10)
-
1510-25612 SCREW, DRIVE-GIMBAL HOUSING EXHAUST FLANGESCREW, DRIVE-GIMBAL HOUSING EXHAUST FLANGE
-
1625-20863 "O" RING, GIMBAL HOUSING"O" RING, GIMBAL HOUSING
-
--37-1368211 EMBLEM, GIMBAL HOUSINGEMBLEM, GIMBAL HOUSING
-
1734762A1 PLATE ASSEMBLY, INHIBITOR - GIMBAL HOUSINGPLATE ASSEMBLY, INHIBITOR - GIMBAL HOUSING
-
1810-34763 SCREW, INDIBITOR PLATE TO GIMBAL HOUSING (3/4")SCREW, INDIBITOR PLATE TO GIMBAL HOUSING (3/4")
-
1917-45212 PIN, SWIVEL - GIMBAL HOUSING TO GIMBAL RING (LOWER)PIN, SWIVEL - GIMBAL HOUSING TO GIMBAL RING (LOWER)
-
2018-34212 COTTER PIN, RETAINING - LOWER SWIVEL PINCOTTER PIN, RETAINING - LOWER SWIVEL PIN
-
2112-32518 WASHER, GIMBAL HOUSING TO LOWER SWIVELWASHER, GIMBAL HOUSING TO LOWER SWIVEL
-
2210-43691 BOLT, GIMBAL HOUSING TO TRANSOM PLATE (4")BOLT, GIMBAL HOUSING TO TRANSOM PLATE (4")
-
2312-32620 WASHER, GIMBAL HOUSING BOLTWASHER, GIMBAL HOUSING BOLT
-
2474639A2 BELLOWS, SHIFT ACTUATING CABLEBELLOWS, SHIFT ACTUATING CABLE
-
2554-8M0090424 CLAMP,ACTUATING CABLE BELLOWS TO SHIFT ACTUATING CABLECLAMP,ACTUATING CABLE BELLOWS TO SHIFT ACTUATING CABLE
-
2654-815504320 CLAMP, SHIFT ACTUATING CABLE BELLOWS TO GIMBAL HOUSINGCLAMP, SHIFT ACTUATING CABLE BELLOWS TO GIMBAL HOUSING
-
2712-22248 WASHER, GIMBAL HOUSING STUDWASHER, GIMBAL HOUSING STUD
-
2811-34933 NUT, GIMBAL HOUSING STUDNUT, GIMBAL HOUSING STUD
-
2932-41672A01 TUBE, WATER - GIMBAL HOUSINGTUBE, WATER - GIMBAL HOUSING
-
3023-28055 BUSHING, RUBBER - WATER TUBE SEALINGBUSHING, RUBBER - WATER TUBE SEALING
-
3132517 COVER, WATER TUBE SEALING BUSHING - GIMBAL HOUSINGCOVER, WATER TUBE SEALING BUSHING - GIMBAL HOUSING
-
3210-28635 SCREW, WATER TUBE SEALING COVER TO GIMBAL HOUSING (5/8")SCREW, WATER TUBE SEALING COVER TO GIMBAL HOUSING (5/8")
-
3353272A5 ELBOW ASSEMBLY, EXHAUST (MERCRUISER 120 AND 160 - EARLY MODE)ELBOW ASSEMBLY, EXHAUST (MERCRUISER 120 AND 160 - EARLY MODE)
-
3353272A5 ELBOW ASSEMBLY, EXHAUST (MERCRUISER 120 AND 160 - LATER MODE)ELBOW ASSEMBLY, EXHAUST (MERCRUISER 120 AND 160 - LATER MODE)
-
3353113A7 ELBOW ASSEMBLY, EXHAUST (MERCRUISER 140)ELBOW ASSEMBLY, EXHAUST (MERCRUISER 140)
-
3445798 BRACKET,SUPPORT - WATER SHUTTERBRACKET,SUPPORT - WATER SHUTTER
-
3510-37655 SCREW, SUPPORT BRACKET TO EXHAUST ELBOW (1/2")SCREW, SUPPORT BRACKET TO EXHAUST ELBOW (1/2")
-
3611-859124 NUT, SUPPORT BRACKET SCREWNUT, SUPPORT BRACKET SCREW
-
3710-60410 SCREW, EXHAUST ELBOW TO GIMBAL HOUSING (4 1/4")
USE WITH B-45530A2 ELBOW ASSEMBLYSCREW, EXHAUST ELBOW TO GIMBAL HOUSING (4 1/4")
USE WITH B-45530A2 ELBOW ASSEMBLY -
3810-37612 SCREW, EXHAUST ELBOW TO GIMBAL HOUSING (1 1/4")
USE WITH B-45530A2 ELBOW ASSEMBLYSCREW, EXHAUST ELBOW TO GIMBAL HOUSING (1 1/4")
USE WITH B-45530A2 ELBOW ASSEMBLY -
3810-35787 SCREW, EXHAUST ELBOW TO GIMBAL HOUSING (2 1/4")
USE WITH B-53272A1 AND B-53113A2 ELBOW ASSEMBLYSCREW, EXHAUST ELBOW TO GIMBAL HOUSING (2 1/4")
USE WITH B-53272A1 AND B-53113A2 ELBOW ASSEMBLY -
3913-35048 LOCKWASHER, EXHAUST ELBOW SCREWLOCKWASHER, EXHAUST ELBOW SCREW
-
4027-70974 GASKET, GIMBAL HOUSING TO TRANSOMGASKET, GIMBAL HOUSING TO TRANSOM
-
4145586 SHUTTER, WATER - EXHAUST ELBOWSHUTTER, WATER - EXHAUST ELBOW
-
4245597A1 BELLOWS, EXHAUST ELBOW TO ENGINE (MERCRUISER 120 AND 160)BELLOWS, EXHAUST ELBOW TO ENGINE (MERCRUISER 120 AND 160)
-
4253114A1 BELLOWS, EXHAUST ELBOW TO ENGINE (MERCRUISER 140)BELLOWS, EXHAUST ELBOW TO ENGINE (MERCRUISER 140)
-
4354-815504352 CLAMP, BELLOWS TO EXHAUST ELBOW AND ENGINECLAMP, BELLOWS TO EXHAUST ELBOW AND ENGINE
-
--337491 SEALER, EXHAUST BELLOWS ATTACHINGSEALER, EXHAUST BELLOWS ATTACHING
