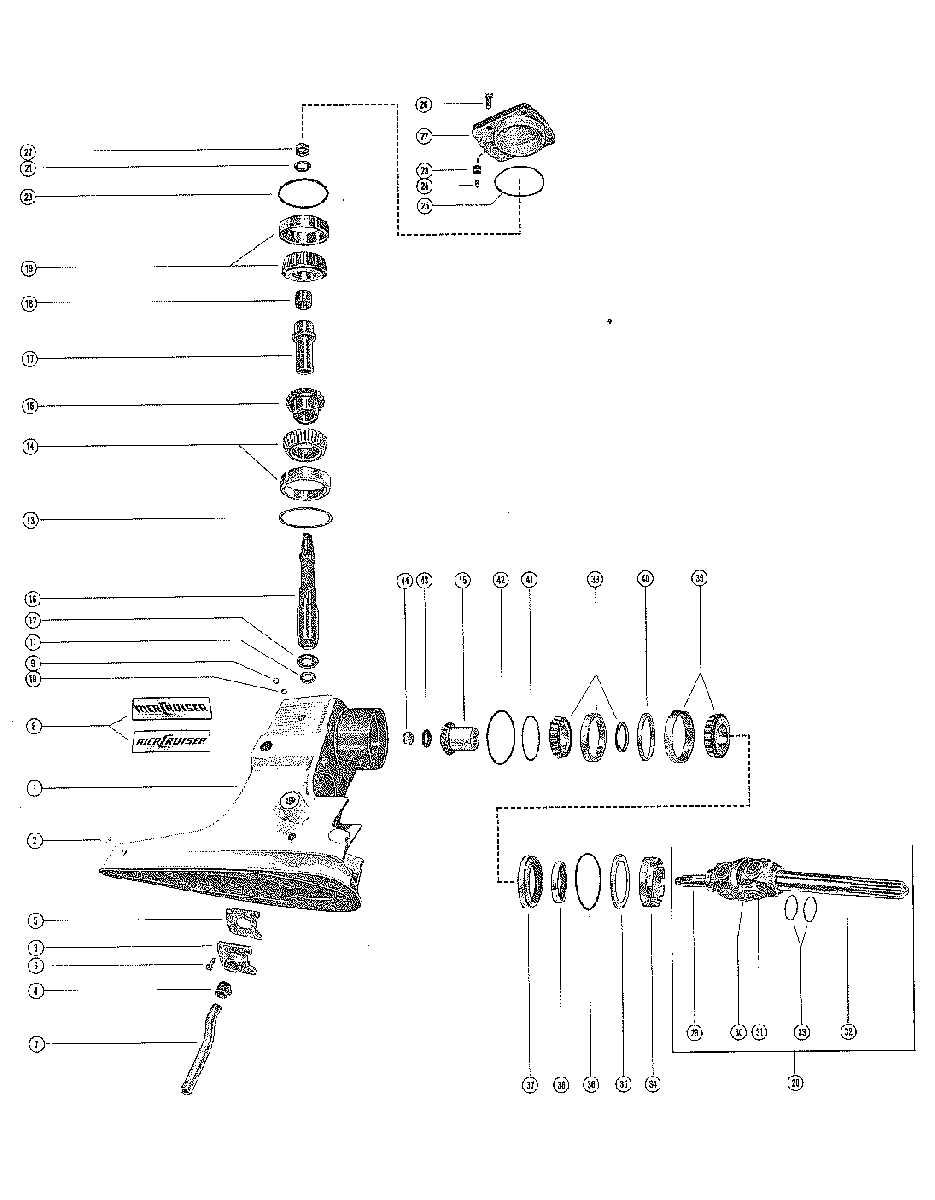

DRIVE SHAFT HOUSING ASSEMBLY AND GEAR ASSEMBLY для Mercruiser - 120/140 1967-1969 2062141 THRU 2791956

  • №
    Артикул
    Название
  • 1
    1547-2763A6 DRIVE SHAFT HOUSING ASSEMBLY
    S/N: 2495285 and below ("See Drive Shaft Housing assy and Bell Housing Assy" for parts breakdown)
    DRIVE SHAFT HOUSING ASSEMBLY
    S/N: 2495285 and below ("See Drive Shaft Housing assy and Bell Housing Assy" for parts breakdown)
  • 1
    1547-3546A8 DRIVE SHAFT HOUSING ASSEMBLY
    S/N: 2495186 and up ("See Drive Shaft Housing assy and Bell Housing Assy" for parts breakdown)
    DRIVE SHAFT HOUSING ASSEMBLY
    S/N: 2495186 and up ("See Drive Shaft Housing assy and Bell Housing Assy" for parts breakdown)
  • 2
    19-29850 PLUG, TRIM TAB HOLE - DRIVE SHAFT HOUSING
    PLUG, TRIM TAB HOLE - DRIVE SHAFT HOUSING
  • 3
    42724A3 COVER ASSEMBLY, WATER POCKET - DRIVE SHAFT HOUSING
    COVER ASSEMBLY, WATER POCKET - DRIVE SHAFT HOUSING
  • 4
    26-38970 SEAL, RUBBER-WATER POCKET COVER
    SEAL, RUBBER-WATER POCKET COVER
  • 5
    27-32569 GASKET, WATER POCKET COVER
    GASKET, WATER POCKET COVER
  • 6
    10-28636 SCREW, WATER POCKET COVER TO DRIVE SHAFT HOUSING (3/4 )
    SCREW, WATER POCKET COVER TO DRIVE SHAFT HOUSING (3/4 )
  • 7
    32-32587 TUBE, WATER - WATER POCKET COVER
    TUBE, WATER - WATER POCKET COVER
  • 8
    37-56480A1 DECAL SET, DRIVE SHAFT HOUSING (MERCRUISER 120 )
    NOT AS SHOWN
    DECAL SET, DRIVE SHAFT HOUSING (MERCRUISER 120 )
    NOT AS SHOWN
  • 8
    37-56480A1 DECAL SET, DRIVE SHAFT HOUSING (MERCRUISER 140 )
    NOT AS SHOWN
    DECAL SET, DRIVE SHAFT HOUSING (MERCRUISER 140 )
    NOT AS SHOWN
  • 8
    37-56480A1 DECAL SET, DRIVE SHAFT HOUSING (MERCRUISER 160 )
    NOT AS SHOWN
    DECAL SET, DRIVE SHAFT HOUSING (MERCRUISER 160 )
    NOT AS SHOWN
  • 9
    10-79953Q04 SCREW, DRIVE SHAFT HOUSING GREASE FILLER AND VENT HOLE
    SCREW, DRIVE SHAFT HOUSING GREASE FILLER AND VENT HOLE
  • 10
    12-191833 WASHER, DRIVE SHAFT HOUSING GREASE FILLER AND VENT HOLE SCRE
    WASHER, DRIVE SHAFT HOUSING GREASE FILLER AND VENT HOLE SCRE
  • 11
    26-965031 OIL SEAL, DRIVE SHAFT HOUSING - LOWER
    OIL SEAL, DRIVE SHAFT HOUSING - LOWER
  • 12
    26-32511 OIL SEAL, GEAR CHAMBER - DRIVE SHAFT HOUSING
    OIL SEAL, GEAR CHAMBER - DRIVE SHAFT HOUSING
  • 13
    15-36178A02 SHIM, BEARING CUP TO DRIVE SHAFT HOUSING (.002-3-5-10-15 )
    SHIM, BEARING CUP TO DRIVE SHAFT HOUSING (.002-3-5-10-15 )
  • 14
    31-35990A1 TAPERED, ROLLER BEARING ASSEMBLE, PINION GEAR
    TAPERED, ROLLER BEARING ASSEMBLE, PINION GEAR
  • 15
    43-45615A2 GEAR ASSEMBLY, COMLPETE
    MERCRUISER 120 (20-24 GEAR RATIO )
    GEAR ASSEMBLY, COMLPETE
    MERCRUISER 120 (20-24 GEAR RATIO )
  • 15
    43-45569A5 GEAR ASSEMBLY, COMLPETE
    MERCRUISER 160 (24-24 GEAR RATIO )
    GEAR ASSEMBLY, COMLPETE
    MERCRUISER 160 (24-24 GEAR RATIO )
  • 16
    45-45568 DRIVE SHAFT, UPPER
    MERCRUISER 120 S/N: 2187468 AND BELOW / MERCRUISER 160 S/N: 2182197 AND BELOW
    DRIVE SHAFT, UPPER
    MERCRUISER 120 S/N: 2187468 AND BELOW / MERCRUISER 160 S/N: 2182197 AND BELOW
  • 17
    45570 SPACER, UPPER DRIVE SHAFT
    MERCRUISER 120 S/N: 2187468 AND BELOW / MERCRUISER 160 S/N: 2182197 AND BELOW
    SPACER, UPPER DRIVE SHAFT
    MERCRUISER 120 S/N: 2187468 AND BELOW / MERCRUISER 160 S/N: 2182197 AND BELOW
  • 18
    23-45571 SLEEVE, UPPER DRIVE SHAFT
    MERCRUISER 120 S/N: 2187468 AND BELOW / MERCRUISER 160 S/N: 2182197 AND BELOW
    SLEEVE, UPPER DRIVE SHAFT
    MERCRUISER 120 S/N: 2187468 AND BELOW / MERCRUISER 160 S/N: 2182197 AND BELOW
  • 19
    31-35990A1 TAPERED ROLLER BEARING ASSEMBLY, UPPER DRIVE SHAFT
    MERCRUISER 120 S/N: 2187468 AND BELOW / MERCRUISER 160 S/N: 2182197 AND BELOW
    TAPERED ROLLER BEARING ASSEMBLY, UPPER DRIVE SHAFT
    MERCRUISER 120 S/N: 2187468 AND BELOW / MERCRUISER 160 S/N: 2182197 AND BELOW
  • 20
    15-36178A02 SHIM, BEARING CUP TO TOP COVER (.002-3-5-10-15 )
    MERCRUISER 120 S/N: 2187468 AND BELOW / MERCRUISER 160 S/N: 2182197 AND BELOW
    SHIM, BEARING CUP TO TOP COVER (.002-3-5-10-15 )
    MERCRUISER 120 S/N: 2187468 AND BELOW / MERCRUISER 160 S/N: 2182197 AND BELOW
  • 21
    12-45815 WASHER, GEAR AND BEARING TO UPPER DRIVE SHAFT
    MERCRUISER 120 S/N: 2187468 AND BELOW / MERCRUISER 160 S/N: 2182197 AND BELOW
    WASHER, GEAR AND BEARING TO UPPER DRIVE SHAFT
    MERCRUISER 120 S/N: 2187468 AND BELOW / MERCRUISER 160 S/N: 2182197 AND BELOW
  • 22
    45513A1 COVER ASSEMBLY, TOP - DRIVE SHAFT HOUSING
    MERCRUISER 120 S/N: 2187468 AND BELOW / MERCRUISER 160 S/N: 2182197 AND BELOW
    COVER ASSEMBLY, TOP - DRIVE SHAFT HOUSING
    MERCRUISER 120 S/N: 2187468 AND BELOW / MERCRUISER 160 S/N: 2182197 AND BELOW
  • 23
    26-45916 OIL SEAL, TOP COVER
    MERCRUISER 120 S/N: 2187468 AND BELOW / MERCRUISER 160 S/N: 2182197 AND BELOW
    OIL SEAL, TOP COVER
    MERCRUISER 120 S/N: 2187468 AND BELOW / MERCRUISER 160 S/N: 2182197 AND BELOW
  • 24
    17-45573 PIN, LOCATION - TOP COVER
    MERCRUISER 120 S/N: 2187468 AND BELOW / MERCRUISER 160 S/N: 2182197 AND BELOW
    PIN, LOCATION - TOP COVER
    MERCRUISER 120 S/N: 2187468 AND BELOW / MERCRUISER 160 S/N: 2182197 AND BELOW
  • 16
    45-46779T DRIVE SHAFT, UPPER
    MERCRUISER 120 S/N: 2187469 THRU #2266775 / MERCRUISER 160 S/N: 2182198 THRU 2269838
    DRIVE SHAFT, UPPER
    MERCRUISER 120 S/N: 2187469 THRU #2266775 / MERCRUISER 160 S/N: 2182198 THRU 2269838
  • 17
    23-32591 SPACE, UPPER DRIVE SHAFT (NOT AS SHOWN )
    MERCRUISER 120 S/N: 2187469 THRU #2266775 / MERCRUISER 160 S/N: 2182198 THRU 2269838
    SPACE, UPPER DRIVE SHAFT (NOT AS SHOWN )
    MERCRUISER 120 S/N: 2187469 THRU #2266775 / MERCRUISER 160 S/N: 2182198 THRU 2269838
  • 19
    31-32575T1 TAPERED ROLLER BEARING ASSEMBLY, UPPER DRIVE SHAFT
    MERCRUISER 120 S/N: 2187469 THRU #2266775 / MERCRUISER 160 S/N: 2182198 THRU 2269838
    TAPERED ROLLER BEARING ASSEMBLY, UPPER DRIVE SHAFT
    MERCRUISER 120 S/N: 2187469 THRU #2266775 / MERCRUISER 160 S/N: 2182198 THRU 2269838
  • 20
    15-32563A1 SHIM, BEARING CUP TO TOP COVER (.002-3-5-10--15 )
    MERCRUISER 120 S/N: 2187469 THRU #2266775 / MERCRUISER 160 S/N: 2182198 THRU 2269838
    SHIM, BEARING CUP TO TOP COVER (.002-3-5-10--15 )
    MERCRUISER 120 S/N: 2187469 THRU #2266775 / MERCRUISER 160 S/N: 2182198 THRU 2269838
  • 21
    12-32506 WASHER, GEAR AND BEARING TO UPPER DRIVE SHAFT
    MERCRUISER 120 S/N: 2187469 THRU #2266775 / MERCRUISER 160 S/N: 2182198 THRU 2269838
    WASHER, GEAR AND BEARING TO UPPER DRIVE SHAFT
    MERCRUISER 120 S/N: 2187469 THRU #2266775 / MERCRUISER 160 S/N: 2182198 THRU 2269838
  • 22
    47752A1 COVER ASSEMBLY TOP - DRIVE SHAFT HOUSING
    MERCRUISER 120 S/N: 2187469 THRU #2266775 / MERCRUISER 160 S/N: 2182198 THRU 2269838
    COVER ASSEMBLY TOP - DRIVE SHAFT HOUSING
    MERCRUISER 120 S/N: 2187469 THRU #2266775 / MERCRUISER 160 S/N: 2182198 THRU 2269838
  • 23
    26-45916 OIL SEAL, TOP COVER
    MERCRUISER 120 S/N: 2187469 THRU #2266775 / MERCRUISER 160 S/N: 2182198 THRU 2269838
    OIL SEAL, TOP COVER
    MERCRUISER 120 S/N: 2187469 THRU #2266775 / MERCRUISER 160 S/N: 2182198 THRU 2269838
  • 24
    17-45573 PIN, LOCATING - TOP COVER
    MERCRUISER 120 S/N: 2187469 THRU #2266775 / MERCRUISER 160 S/N: 2182198 THRU 2269838
    PIN, LOCATING - TOP COVER
    MERCRUISER 120 S/N: 2187469 THRU #2266775 / MERCRUISER 160 S/N: 2182198 THRU 2269838
  • 16
    45-45568 DRIVE SHAFT, UPPER
    MERCRUISER 120 S/N: 2329996 AND UP / MERCRUISER 160 S/N: 2331946 AND UP
    DRIVE SHAFT, UPPER
    MERCRUISER 120 S/N: 2329996 AND UP / MERCRUISER 160 S/N: 2331946 AND UP
  • 17
    23-32591 SPACER, UPPER DRIVE SHAFT (NOT AS SHOWN )
    MERCRUISER 120 S/N: 2329996 AND UP / MERCRUISER 160 S/N: 2331946 AND UP
    SPACER, UPPER DRIVE SHAFT (NOT AS SHOWN )
    MERCRUISER 120 S/N: 2329996 AND UP / MERCRUISER 160 S/N: 2331946 AND UP
  • 19
    31-32575T1 TAPERED ROLLER BEARING ASSEMBLY, UPPER DRIVE SHAFT
    MERCRUISER 120 S/N: 2329996 AND UP / MERCRUISER 160 S/N: 2331946 AND UP
    TAPERED ROLLER BEARING ASSEMBLY, UPPER DRIVE SHAFT
    MERCRUISER 120 S/N: 2329996 AND UP / MERCRUISER 160 S/N: 2331946 AND UP
  • 20
    15-32563A1 SHIM, BEARING CUP TO TOP COVER (.002-3-5-10-15)
    MERCRUISER 120 S/N: 2329996 AND UP / MERCRUISER 160 S/N: 2331946 AND UP
    SHIM, BEARING CUP TO TOP COVER (.002-3-5-10-15)
    MERCRUISER 120 S/N: 2329996 AND UP / MERCRUISER 160 S/N: 2331946 AND UP
  • 21
    12-32506 WASHER, GEAR AND BEARING TO UPPER DIRVE SHAFT
    MERCRUISER 120 S/N: 2329996 AND UP / MERCRUISER 160 S/N: 2331946 AND UP
    WASHER, GEAR AND BEARING TO UPPER DIRVE SHAFT
    MERCRUISER 120 S/N: 2329996 AND UP / MERCRUISER 160 S/N: 2331946 AND UP
  • 22
    47752A1 COVER, TOP - DRIVE SHAFT HOUSING (NOT AS SHOWN)
    MERCRUISER 120 S/N: 2329996 AND UP / MERCRUISER 160 S/N: 2331946 AND UP
    COVER, TOP - DRIVE SHAFT HOUSING (NOT AS SHOWN)
    MERCRUISER 120 S/N: 2329996 AND UP / MERCRUISER 160 S/N: 2331946 AND UP
  • 25
    25-32546 "O" RING, TOP COVER SEALING
    "O" RING, TOP COVER SEALING
  • 26
    10-31985 SCREW, TOP COVER TO DRIVE SHAFT HOUSING (1 1/4")
    SCREW, TOP COVER TO DRIVE SHAFT HOUSING (1 1/4")
  • 27
    11-22339 NUT, GEAR AND BEARING TO UPPER DRIVE SHAFT
    NUT, GEAR AND BEARING TO UPPER DRIVE SHAFT
  • 28
    58858A1 UNIVERSAL JOINT ASSEMBLY, DRIVE GEAR
    UNIVERSAL JOINT ASSEMBLY, DRIVE GEAR
  • 29
    46020T02 YOKE, UNIVERSAL JOINT - GEAR END
    YOKE, UNIVERSAL JOINT - GEAR END
  • 30
    393831 SOCKET, CENTER - UNIVERSAL JOINT
    SOCKET, CENTER - UNIVERSAL JOINT
  • 31
    75832T1 CROSS AND BEARING ASSY, UNIVERSAL JOINT
    CROSS AND BEARING ASSY, UNIVERSAL JOINT
  • 32
    39385A1 YOKE ASSEMBLY, UNIVERSAL JOINT - COUPLING END
    YOKE ASSEMBLY, UNIVERSAL JOINT - COUPLING END
  • 33
    25-25439 "O" RING, UNIVERSAL JOINT
    "O" RING, UNIVERSAL JOINT
  • 34
    8168112 RETAINER, TAPERED ROLLER BEARING - UNIVERSAL JOINT
    RETAINER, TAPERED ROLLER BEARING - UNIVERSAL JOINT
  • 35
    35983 RING, ROLLER BEARING RETAINER TO OIL SEAL CARRIER
    RING, ROLLER BEARING RETAINER TO OIL SEAL CARRIER
  • 36
    25-70937 "O" RING, OIL SEAL CARRIER
    "O" RING, OIL SEAL CARRIER
  • 37
    66081A2 CARRIER ASSEMBLY, OIL SEAL
    CARRIER ASSEMBLY, OIL SEAL
  • 38
    26-823894 OIL SEAL, CARRIER
    OIL SEAL, CARRIER
  • 39
    31-35988A12 TAPERED ROLLER BEARING ASSEMBLY, DRIVE GEAR
    TAPERED ROLLER BEARING ASSEMBLY, DRIVE GEAR
  • 40
    23-35985 SPACER, DRIVE GEAR ROLLER BEARING CUPS
    SPACER, DRIVE GEAR ROLLER BEARING CUPS
  • 41
    15-35980A1 SHIM, BEARING CUP TO DRIVE SHAFT HOUSING
    (.002-3-5-10-25 )
    SHIM, BEARING CUP TO DRIVE SHAFT HOUSING
    (.002-3-5-10-25 )
  • 42
    23-8M0124132 SHIM, BEARING CUP TO DRIVE SHAFT HOUSING
    SHIM, BEARING CUP TO DRIVE SHAFT HOUSING
  • 43
    12-45810 WASHER, DRIVE GEAR TO UNIVERSAL JOINT
    WASHER, DRIVE GEAR TO UNIVERSAL JOINT
  • 44
    11-22339 NUT, DRIVE GEAR TO UNIVERSAL JOINT
    NUT, DRIVE GEAR TO UNIVERSAL JOINT
