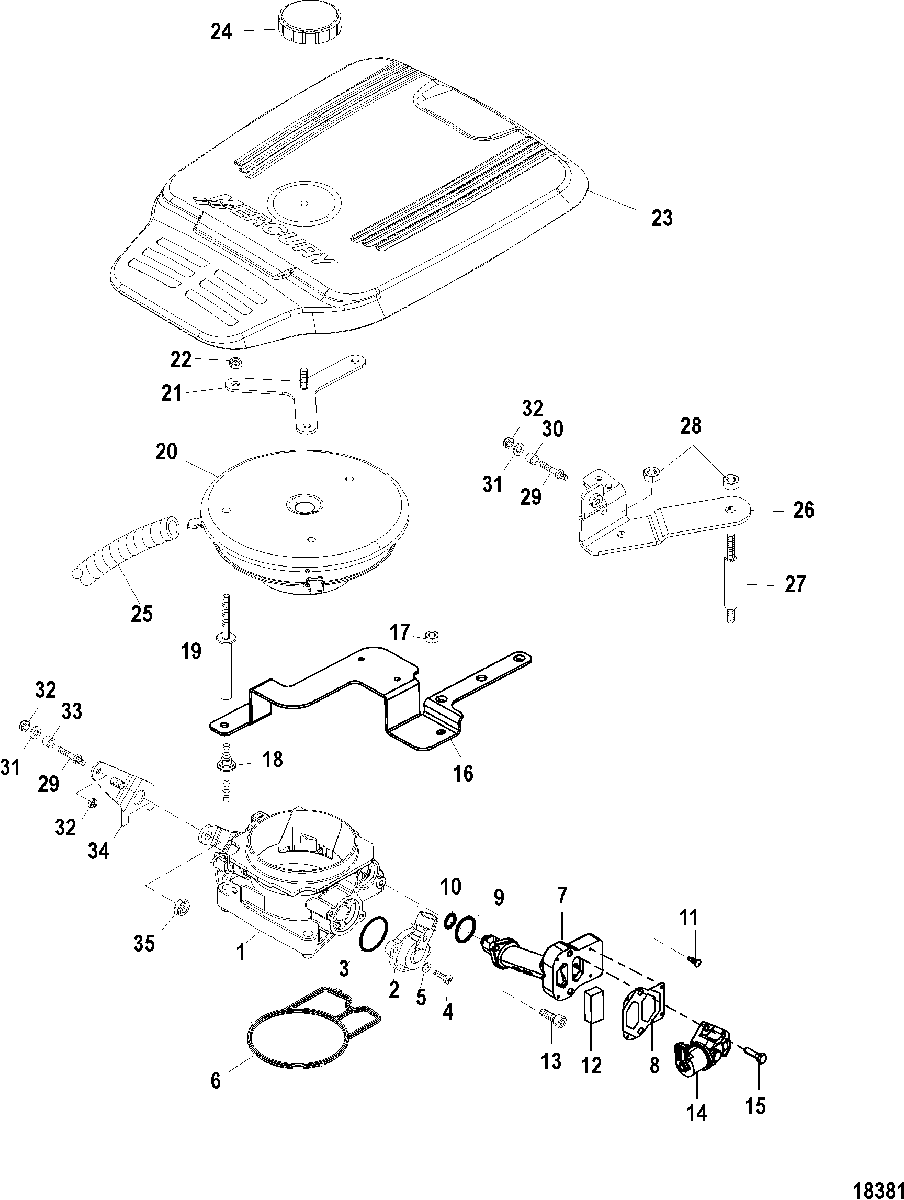

Throttle Body, Mechanical для Mercruiser - 350 MAG MPI HORIZON ALPHA/BRAVO EC 1A300000 THRU 1A611927

  • №
    Артикул
    Название
  • 1
    8M0096994 THROTTLE BODY ASSEMBLY
    THROTTLE BODY ASSEMBLY
  • 2
    8M0097035 SENSOR, TPS
    SENSOR, TPS
  • 3
    NSS NOT SOLD SEPARATE, O-RING
    NOT SOLD SEPARATE, O-RING
  • 4
    NSS NOT SOLD SEPARATE, SCREW KIT, TPS
    NOT SOLD SEPARATE, SCREW KIT, TPS
  • 5
    NSS NOT SOLD SEPARATE, O-RING
    NOT SOLD SEPARATE, O-RING
  • 6
    27-8M4502066 GASKET, Throttle Body
    GASKET, Throttle Body
  • 7
    866295A02 IAC ADAPTOR KIT
    IAC ADAPTOR KIT
  • 8
    NSS NOT SOLD SEPARATE, Gasket
    NOT SOLD SEPARATE, Gasket
  • 9
    25-863006 O-RING
    O-RING
  • 10
    25-808547 O-RING
    O-RING
  • 11
    NSS NOT SOLD SEPARATE, Screw-Drive
    NOT SOLD SEPARATE, Screw-Drive
  • 12
    35-8M2001030 FILTER
    FILTER
  • 13
    10-4008612 SCREW, (M4 x 12)
    SCREW, (M4 x 12)
  • 14
    862998 VALVE, Idle Air
    VALVE, Idle Air
  • 15
    10-4008820 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 16
    863647T BRACKET
    BRACKET
  • 17
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 18
    16-8M0088142 STUD
    STUD
  • 19
    16-864338 STUD, Special
    STUD, Special
  • 20
    863416T FLAME ARRESTOR
    FLAME ARRESTOR
  • 21
    863423 BRACKET, Cover Mount
    BRACKET, Cover Mount
  • 22
    11-401386 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 23
    879288T67 COVER, Silver
    COVER, Silver
  • 24
    11-863701 KNOB, Engine Cover
    KNOB, Engine Cover
  • 25
    32-8M0086022 HOSE, (16.50 Inches Bulk), Breather
    HOSE, (16.50 Inches Bulk), Breather
  • 26
    863420T BRACKET, Throttle Anchor
    BRACKET, Throttle Anchor
  • 27
    16-863439 STUD
    STUD
  • 28
    11-401366 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 29
    16-97477A3 STUD KIT, Throttle Anchor
    STUD KIT, Throttle Anchor
  • 29
    16-866641A01 STUD KIT, Throttle Anchor
    (SEACORE)
    STUD KIT, Throttle Anchor
    (SEACORE)
  • 30
    23-31866 SPACER, (.256 x .313 x .625)
    SPACER, (.256 x .313 x .625)
  • 30
    23-11284 SPACER, (.62 Diameter)
    SPACER, (.62 Diameter)
  • 31
    12-20533 WASHER
    WASHER
  • 32
    11-8267139 NUT, (.250-28)
    NUT, (.250-28)
  • 32
    11-826709109 NUT, (.250-28) Stainless Steel
    (SEACORE)
    NUT, (.250-28) Stainless Steel
    (SEACORE)
  • 33
    NSS NOT SOLD SEPARATE, Spacer
    NOT SOLD SEPARATE, Spacer
  • 34
    863417 BRACKET, Throttle
    BRACKET, Throttle
  • 35
    11-8267138 NUT, (.25-20)
    NUT, (.25-20)
  • 35
    11-826709108 NUT, (.250-20) Stainless Steel
    (SEACORE)
    NUT, (.250-20) Stainless Steel
    (SEACORE)
