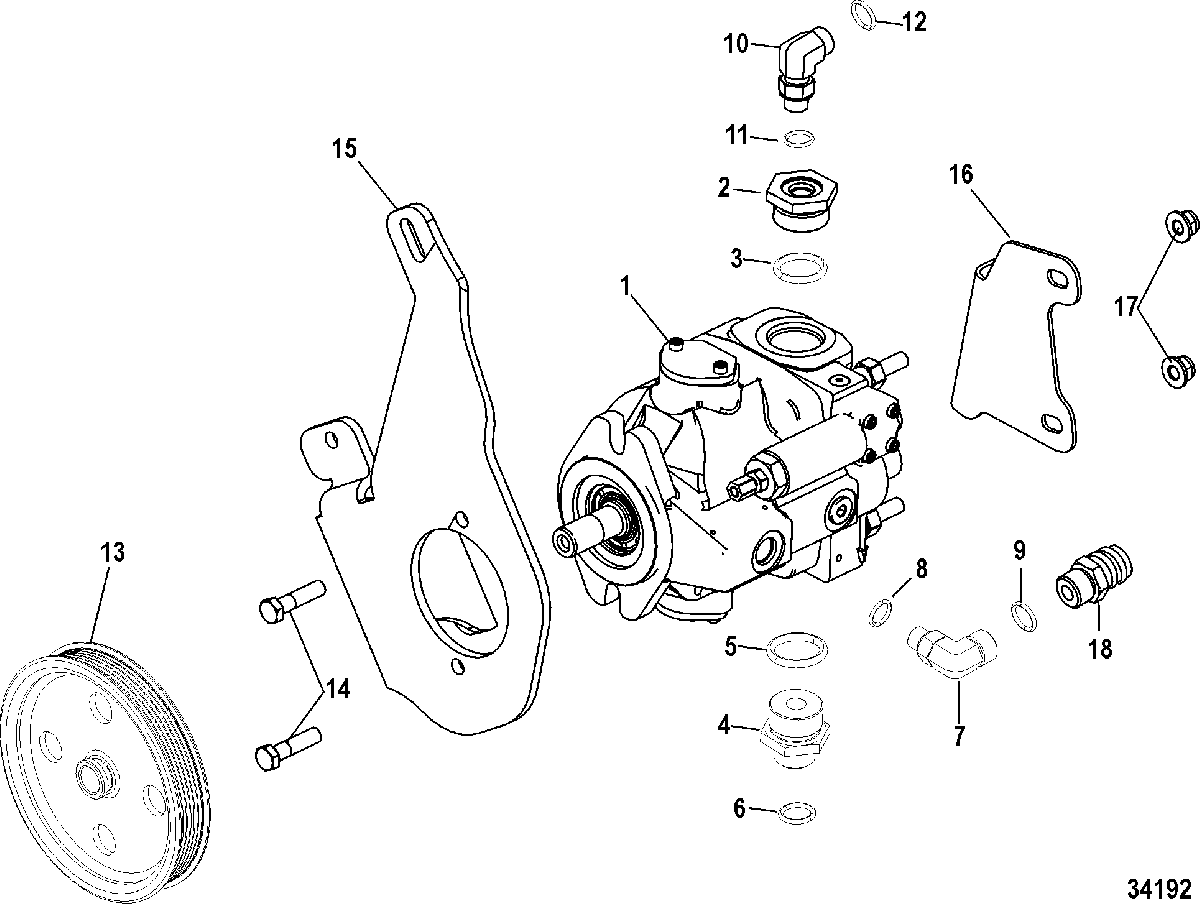

AXIUS Steering, Hydraulic Pump, 1A342859 and Down, Gen I для Mercruiser - 350 MAG MPI HORIZON ALPHA/BRAVO EC 1A300000 THRU 1A611927

  • №
    Артикул
    Название
  • 1
    879194T15 PUMP
    (See Note 1)
    PUMP
    (See Note 1)
  • -
    22-879172A15 FITTING ASSEMBLY
    (See Note 1)
    FITTING ASSEMBLY
    (See Note 1)
  • 2
    22-8M2006227 FITTING, (1.5 in.)
    FITTING, (1.5 in.)
  • 3
    25-8M2008617 O-RING
    O-RING
  • 4
    23-8M2006786 ADAPTOR, (1.5 in.)
    ADAPTOR, (1.5 in.)
  • 5
    25-8M2008617 O-RING
    O-RING
  • 6
    25-8M2008541 O-RING
    O-RING
  • 7
    22-8M2008375 FITTING, Adapter (-6ORF TO -8ORB), 90 Degree
    FITTING, Adapter (-6ORF TO -8ORB), 90 Degree
  • 8
    25-8M0047401 O-RING, (.468 X .078)
    O-RING, (.468 X .078)
  • 9
    NSS NOT SOLD SEPARATE, O-RING
    NOT SOLD SEPARATE, O-RING
  • 10
    22-8M0033227 FITTING, 90 Degree (Stainless Steel)
    FITTING, 90 Degree (Stainless Steel)
  • 11
    NSS NOT SOLD SEPARATE, O-RING
    NOT SOLD SEPARATE, O-RING
  • 12
    NSS NOT SOLD SEPARATE, O-RING
    NOT SOLD SEPARATE, O-RING
  • 13
    8M2006301 PULLEY
    PULLEY
  • 14
    10-34354 SCREW, (.375-16 x 1.50)
    SCREW, (.375-16 x 1.50)
  • 15
    879194T03 BRACKET
    BRACKET
  • 16
    879288T17 BRACE
    BRACE
  • 17
    11-860069 NUT, (.375-16)
    NUT, (.375-16)
  • 18
    22-8M2017518 COUPLING, Quick Connect
    COUPLING, Quick Connect
