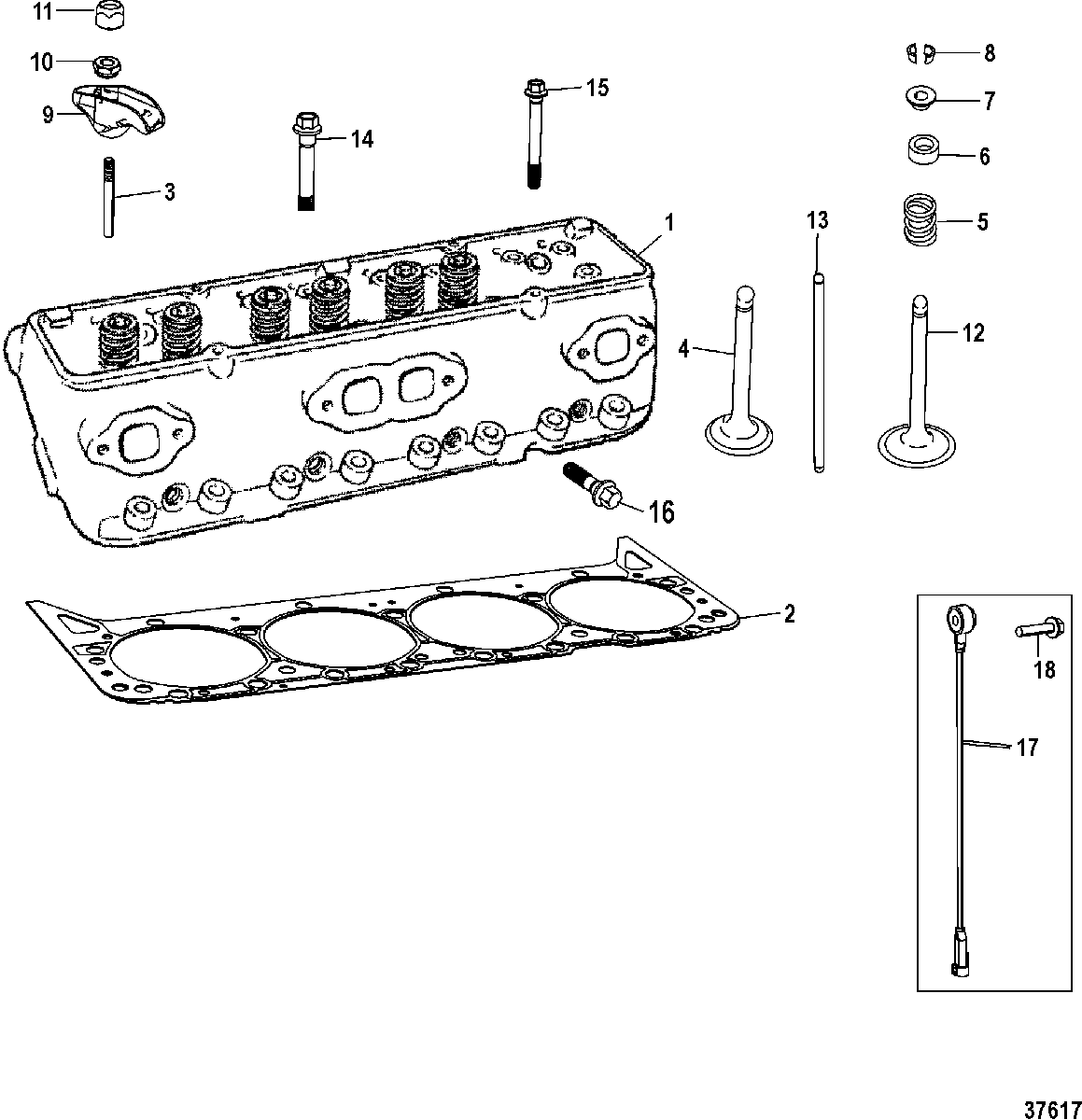

Cylinder Head Assembly для Mercruiser - 350 MAG MPI HORIZON ALPHA/BRAVO EC 1A300000 THRU 1A611927
-
№АртикулНазвание
-
1938-8M0087884 CYLINDER HEAD ASSEMBLY
5.0L (Bare)CYLINDER HEAD ASSEMBLY
5.0L (Bare) -
1938-8M0115137 CYLINDER HEAD ASSEMBLY
350 (Bare)CYLINDER HEAD ASSEMBLY
350 (Bare) -
1900-8M0061735 CYLINDER HEAD ASSEMBLY
377 (Loaded - Includes references 2-8 and 12)CYLINDER HEAD ASSEMBLY
377 (Loaded - Includes references 2-8 and 12) -
227-75611001 GASKETGASKET
-
316-34522 STUD (.003) OversizeSTUD (.003) Oversize
-
316-34521 STUD (.013) OversizeSTUD (.013) Oversize
-
48M2010902 VALVE, Intake, Standard
377VALVE, Intake, Standard
377 -
4802555 VALVE, Intake, Standard
5.0LVALVE, Intake, Standard
5.0L -
4809992 VALVE, Intake, Standard
350VALVE, Intake, Standard
350 -
524-483471 SPRINGSPRING
-
626-8M0050563 SEAL, IntakeSEAL, Intake
-
626-804507 SEAL, ExhaustSEAL, Exhaust
-
7483481 CAPCAP
-
828-547971 KEYKEY
-
935329 ARM KIT, Rocker
Scorpion 350ARM KIT, Rocker
Scorpion 350 -
1035331 BALL, Rocker ArmBALL, Rocker Arm
-
1111-34516 NUTNUT
-
128243171 VALVE, Exhaust, StandardVALVE, Exhaust, Standard
-
128243181 VALVE, Exhaust, (.030) OversizeVALVE, Exhaust, (.030) Oversize
-
13173391 PUSH RODPUSH ROD
-
1410-119671 SCREW, (.437-14 x 3.00)SCREW, (.437-14 x 3.00)
-
1510-11966 SCREW, (.437-14 x 3.750)SCREW, (.437-14 x 3.750)
-
1610-11968 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
178M6003194 SENSOR ASSEMBLY, Knock
350/377 MagSENSOR ASSEMBLY, Knock
350/377 Mag -
1810-865982007 SCREW, (.375-16 x 1.25) Hex Flange, Knock Sensor
350/377 MagSCREW, (.375-16 x 1.25) Hex Flange, Knock Sensor
350/377 Mag -
-27-75611A03 GASKET SET, Cylinder HeadGASKET SET, Cylinder Head
