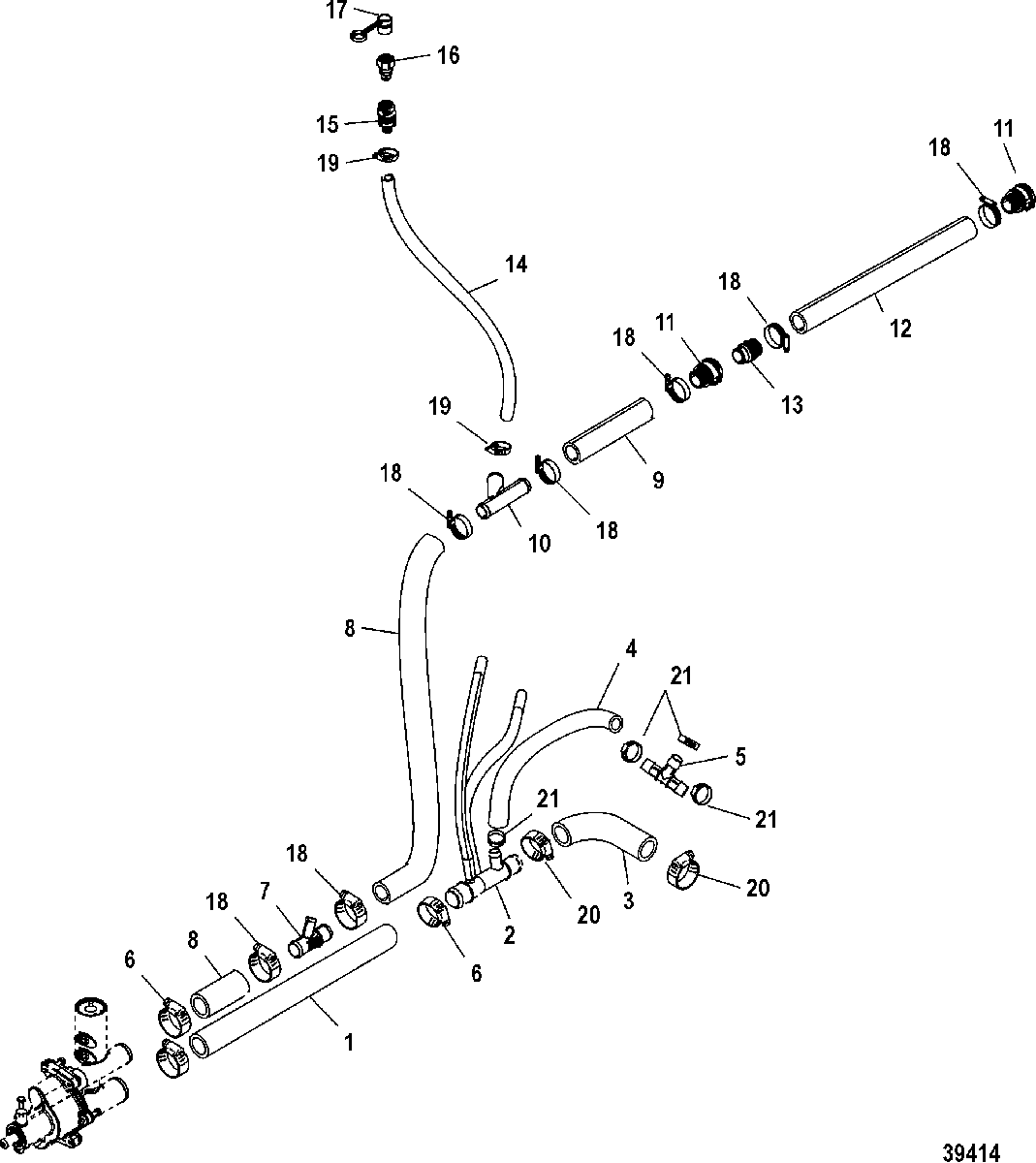

Closed Cooling Sys., Sea Water Pump Hoses -1A343749 and Up для Mercruiser - 350 MAG MPI HORIZON ALPHA/BRAVO EC 1A300000 THRU 1A611927

  • №
    Артикул
    Название
  • 1
    32-865234 HOSE, Sea Water Pump to Orifice
    HOSE, Sea Water Pump to Orifice
  • 2
    22-865208T02 HOSE ASSEMBLY, 3 Bib Orifice Meter
    HOSE ASSEMBLY, 3 Bib Orifice Meter
  • 3
    32-8M2021655 HOSE, Hose Fitting to Cooler
    HOSE, Hose Fitting to Cooler
  • 4
    32-8M2012446 HOSE, Fitting to Fitting
    HOSE, Fitting to Fitting
  • 5
    22-863464 FITTING
    FITTING
  • 6
    54-815504224 CLAMP, (32 - 50 mm)
    CLAMP, (32 - 50 mm)
  • 7
    22-864727 FITTING, Y, (3) 1-1/4 In. OD Hose Barbs
    FITTING, Y, (3) 1-1/4 In. OD Hose Barbs
  • 8
    32-8M0062653 HOSE, (4.00 Inches)
    HOSE, (4.00 Inches)
  • 9
    32-8M0062666 HOSE, (96.00 Inches Bulk), Cut to Fit
    HOSE, (96.00 Inches Bulk), Cut to Fit
  • 10
    22-862993 FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb
    FITTING, Y, (2) 1-1/4 In. Hose Barbs / (1) 3/4 In. Hose Barb
  • 11
    22-865324 QUICK CONNECT
    QUICK CONNECT
  • 12
    32-8M0062666 HOSE, (96.00 Inches Bulk), To Transom
    (Cut to Fit)
    HOSE, (96.00 Inches Bulk), To Transom
    (Cut to Fit)
  • 13
    22-865362 QUICK CONNECT
    QUICK CONNECT
  • 14
    32-8M0062635 HOSE, (34 Inches), Flush
    HOSE, (34 Inches), Flush
  • 15
    22-861406 SOCKET
    SOCKET
  • 16
    22-857175 FITTING
    FITTING
  • 17
    19-858240 CAP
    CAP
  • 18
    54-815504221 CLAMP, Worm Gear (30 - 45 mm)
    CLAMP, Worm Gear (30 - 45 mm)
  • 19
    54-815504212 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 20
    54-815504221 CLAMP, Worm Gear (30 - 45 mm)
    CLAMP, Worm Gear (30 - 45 mm)
  • 21
    54-815504216 CLAMP, (25 - 40 mm)
    CLAMP, (25 - 40 mm)
