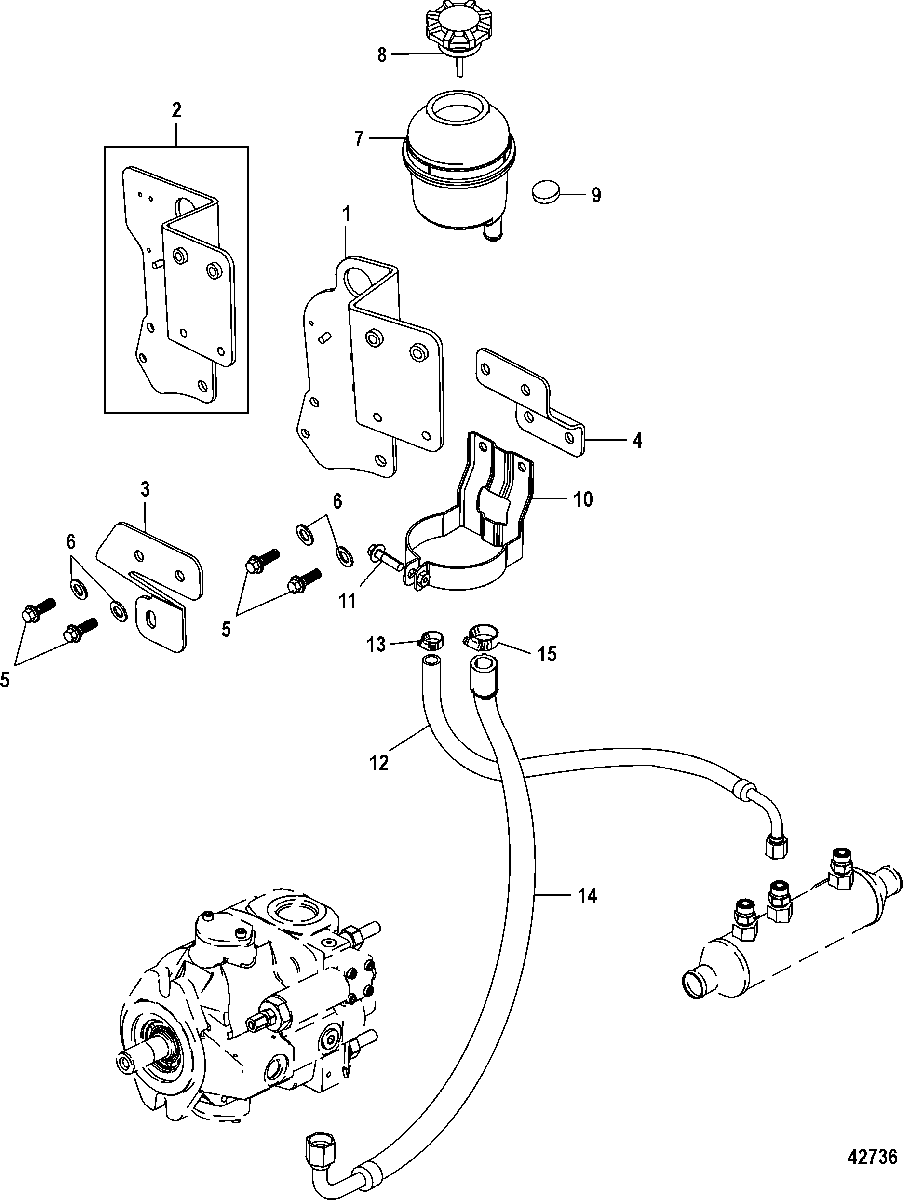

AXIUS Steering, Reservoir and Front Lifting Eye, Gen I для Mercruiser - 350 MAG MPI HORIZON ALPHA/BRAVO EC 1A300000 THRU 1A611927

  • №
    Артикул
    Название
  • 1
    879288T20 BRACKET, Front Lifting Eye
    Stardard Cooling Without Drain & Closed Cooling
    BRACKET, Front Lifting Eye
    Stardard Cooling Without Drain & Closed Cooling
  • 2
    87928814T BRACKET, Front Lifting Eye
    Standard Cooling With Drain
    BRACKET, Front Lifting Eye
    Standard Cooling With Drain
  • 3
    8M2007273 BRACKET
    BRACKET
  • 4
    8M2006158 BRACKET
    BRACKET
  • 5
    10-35386 SCREW, (.312-18 x 1.00)
    SCREW, (.312-18 x 1.00)
  • 6
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 7
    865264T RESERVOIR ASSEMBLY, Oil - Power-Assisted Steering
    RESERVOIR ASSEMBLY, Oil - Power-Assisted Steering
  • 8
    8M0121097 CAP, Oil Reservoir - Brown
    CAP, Oil Reservoir - Brown
  • 9
    87919455T MAGNET, Power Steering Reservoir
    MAGNET, Power Steering Reservoir
  • 10
    879194T06 BRACKET, Fluid Reservior
    BRACKET, Fluid Reservior
  • 11
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 12
    32-8M2008378 HOSE
    HOSE
  • 13
    54-815504105 CLAMP, Worm Gear (11-18 mm)
    CLAMP, Worm Gear (11-18 mm)
  • 14
    32-8M2010005 HOSE
    HOSE
  • 15
    54-815504210 CLAMP, Worm Gear
    CLAMP, Worm Gear
