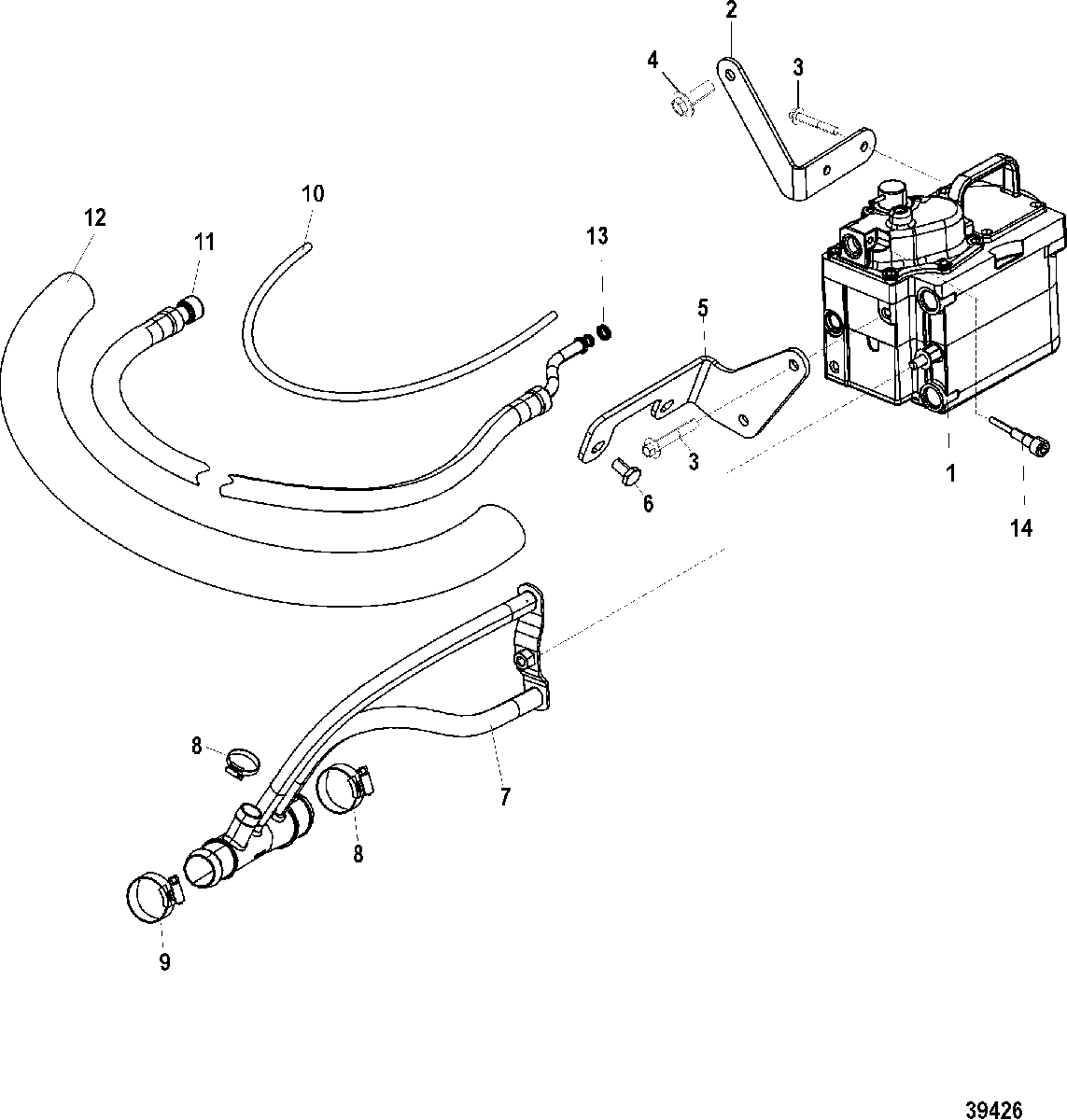

Cool Fuel System -Bravo(SN 1A343748 & Below) для Mercruiser - 350 MAG MPI HORIZON ALPHA/BRAVO EC 1A300000 THRU 1A611927
-
№АртикулНазвание
-
1864650A05 MODULE KIT, Fuel PumpMODULE KIT, Fuel Pump
-
2864459 BRACKETBRACKET
-
310-4010720 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
410-4010820 SCREW, (M10 x 20) Hex Flange - Stainless SteelSCREW, (M10 x 20) Hex Flange - Stainless Steel
-
5864458 BRACKETBRACKET
-
610-40001195 SCREW, (M10 x 30)SCREW, (M10 x 30)
-
722-865208T01 HOSE ASSEMBLY, 3 Bib Orfice Meter
(See Bulletin MCM 2009-01)HOSE ASSEMBLY, 3 Bib Orfice Meter
(See Bulletin MCM 2009-01) -
722-865317T01 FITTING/HOSE ASSEMBLY, 2 Bib Orifice Meter
(See Bulletin MCM 2009-01)FITTING/HOSE ASSEMBLY, 2 Bib Orifice Meter
(See Bulletin MCM 2009-01) -
854-815504212 CLAMP, Worm GearCLAMP, Worm Gear
-
954-815504224 CLAMP, (32 - 50 mm)CLAMP, (32 - 50 mm)
-
1032-8M0063567 HOSE, (58.00 Inches Bulk)HOSE, (58.00 Inches Bulk)
-
1132-8M2005177 LINE, Cooler to RailLINE, Cooler to Rail
-
12NSS NOT SOLD SEPARATE, Insulator SleeveNOT SOLD SEPARATE, Insulator Sleeve
-
1326-863151 SEAL, Quad RingSEAL, Quad Ring
-
1410-866114 SCREW, (.250-28) SpecialSCREW, (.250-28) Special
