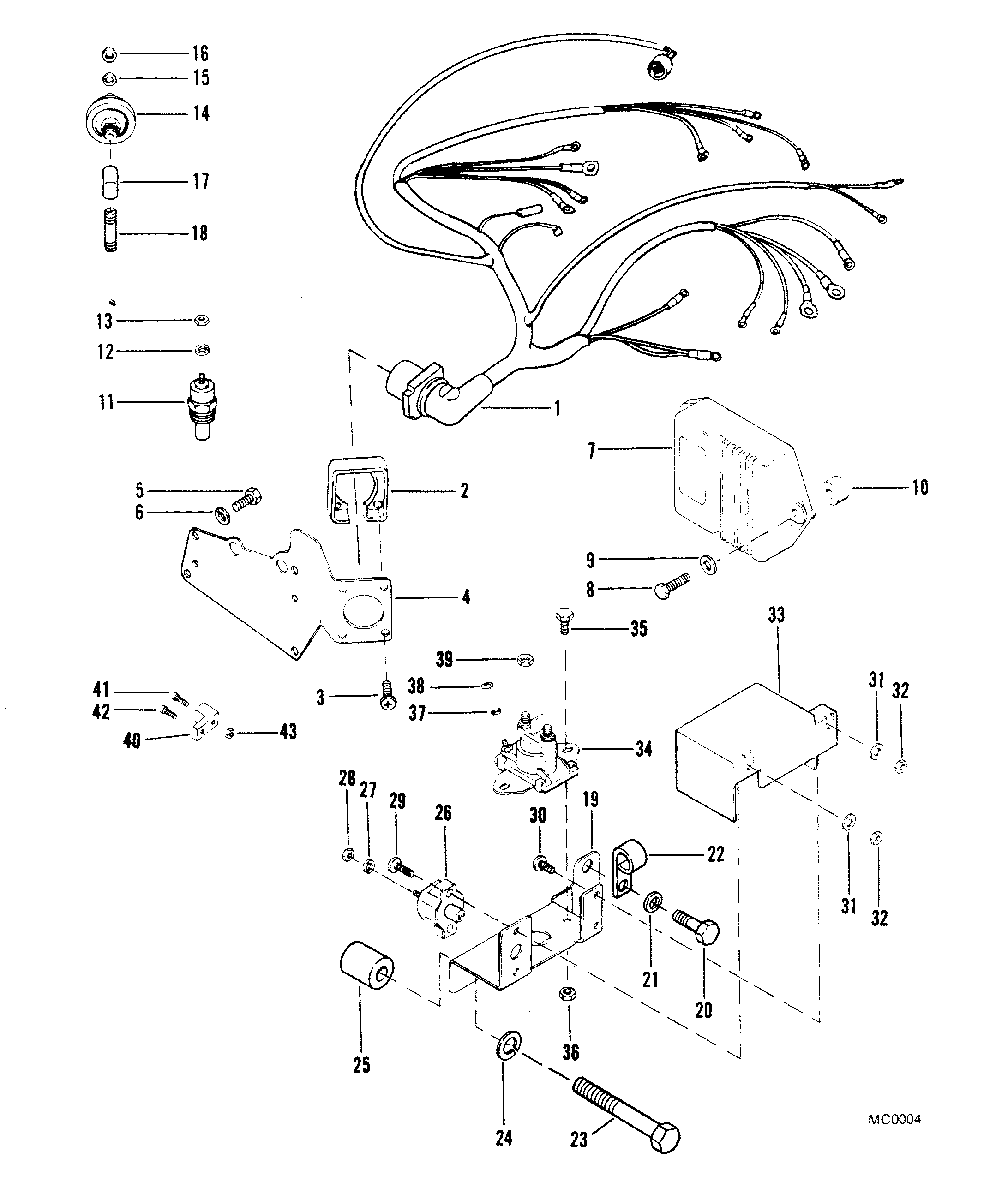

WIRING HARNESS AND ELECTRICAL COMPONENTS для Mercruiser - 350 MAG. ALPHA GM 350 V-8 1986-1987 0A635178 THRU 0B525981

  • №
    Артикул
    Название
  • 1
    84-98423A13 WIRING HARNESS
    WIRING HARNESS
  • 2
    26079A2 PLATE, WIRING HARNESS TO MOUNTING BRACKET
    PLATE, WIRING HARNESS TO MOUNTING BRACKET
  • 3
    10-34696 SCREW, WIRING HARNESS PLATE (3/4")
    SCREW, WIRING HARNESS PLATE (3/4")
  • 4
    98493A2 BRACKET, MOUNTING
    BRACKET, MOUNTING
  • 5
    10-49668 SCRE, MOUNTING BRACKET
    SCRE, MOUNTING BRACKET
  • 6
    13-26992 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 7
    15248T02 IGNITION AMPLIFIER
    IGNITION AMPLIFIER
  • 8
    10-76596 SCREW, IGNITION AMPLIFIER (1-1/4")
    SCREW, IGNITION AMPLIFIER (1-1/4")
  • 9
    13-26992 LOCKWASHER, IGNITION AMPLIFIER SCREW
    LOCKWASHER, IGNITION AMPLIFIER SCREW
  • 10
    23-92152T SPACER, IGNITION AMPLIFER SCREW
    SPACER, IGNITION AMPLIFER SCREW
  • 11
    97258A1 WATER TEMPERATURE SENDER
    WATER TEMPERATURE SENDER
  • 11
    49734 WATER TEMPERATURE SENDER (DUAL)
    WATER TEMPERATURE SENDER (DUAL)
  • 12
    13-26996 LOCKWASHER, WATER TEMPERATURE SENDER TERMINAL (#10)
    LOCKWASHER, WATER TEMPERATURE SENDER TERMINAL (#10)
  • 13
    11-68219 NUT, WATER TEMPERATURE SENDER TERMINAL (#10)
    NUT, WATER TEMPERATURE SENDER TERMINAL (#10)
  • 14
    8M0068784 OIL PRESSURE SENDER
    OIL PRESSURE SENDER
  • 14
    37293T OIL PRESSURE SENDER (DUAL)
    OIL PRESSURE SENDER (DUAL)
  • 15
    13-26996 LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)
    LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)
  • 16
    11-68219 NUT, OIL PRESSURE SENDER TERMINAL (#10)
    NUT, OIL PRESSURE SENDER TERMINAL (#10)
  • 17
    22-46932 ELBOW, OIL PRESSURE SENDER
    ELBOW, OIL PRESSURE SENDER
  • 18
    22-885153 NIPPLE, OIL PRESSURE SENDER
    NIPPLE, OIL PRESSURE SENDER
  • 19
    41170T BRACKET, MOUNTING
    BRACKET, MOUNTING
  • 20
    10-98260 SCREW, MOUNTING BRACEKT (5/8")
    SCREW, MOUNTING BRACEKT (5/8")
  • 21
    13-35048 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 22
    54-78945 CLAMP, BRACKET SCREW
    CLAMP, BRACKET SCREW
  • 23
    10-32132 SCREW, MOUNTING BRACKET
    SCREW, MOUNTING BRACKET
  • 24
    13-35048 LOCKWASHER, MOUNTING BRACKET STUD
    LOCKWASHER, MOUNTING BRACKET STUD
  • 25
    23-15895 SPACER, MOUNTING BRACKET STUD
    SPACER, MOUNTING BRACKET STUD
  • 26
    88-11178A01 CIRCUIT BREAKER (50 AMP)
    CIRCUIT BREAKER (50 AMP)
  • 27
    13-26996 LOCKWASHER, CIRCUIT BREAKER TERMINAL
    LOCKWASHER, CIRCUIT BREAKER TERMINAL
  • 28
    11-68219 NUT, CIRCUIT BREAKER TERMINAL
    NUT, CIRCUIT BREAKER TERMINAL
  • 29
    10-45862 SCREW, CIRCUIT BREAKER (7/8")
    SCREW, CIRCUIT BREAKER (7/8")
  • 30
    10-45218 SCREW, INSULATOR (3/8")
    SCREW, INSULATOR (3/8")
  • 31
    12-56681 WASHER, CIRCUIT BREAKER SCREW
    WASHER, CIRCUIT BREAKER SCREW
  • 32
    11-46438 NUT, INSULATOR SCREW
    NUT, INSULATOR SCREW
  • 33
    85-96819T INSULATOR, CIRCUIT BREAKER
    INSULATOR, CIRCUIT BREAKER
  • 34
    89-96054T STARTER SOLENOID
    STARTER SOLENOID
  • 35
    10-96138 SCREW, STARTER SOLENOID (5/8")
    SCREW, STARTER SOLENOID (5/8")
  • 36
    11-20088 NUT, STARTER SOLENOID SCREW
    NUT, STARTER SOLENOID SCREW
  • 37
    13-26992 LOCKWASHER, STARTER SOLENOID TERMINAL
    LOCKWASHER, STARTER SOLENOID TERMINAL
  • 38
    11-26419 NUT, STARTER SOLENOID TERMINAL (10-32)
    NUT, STARTER SOLENOID TERMINAL (10-32)
  • 39
    11-94330 NUT, STARTER SOLENOID TERMINAL (1/4-20)
    NUT, STARTER SOLENOID TERMINAL (1/4-20)
  • 40
    86-45915 TERMINAL BLOCK
    TERMINAL BLOCK
  • 41
    10-62568 SCREW, TERMINAL BLOCK LEADS
    SCREW, TERMINAL BLOCK LEADS
  • 42
    10-45862 SCREW, TERMINAL BLOCK
    SCREW, TERMINAL BLOCK
  • 43
    11-46438 NUT, TERMINAL BLOCK SCREW
    NUT, TERMINAL BLOCK SCREW
