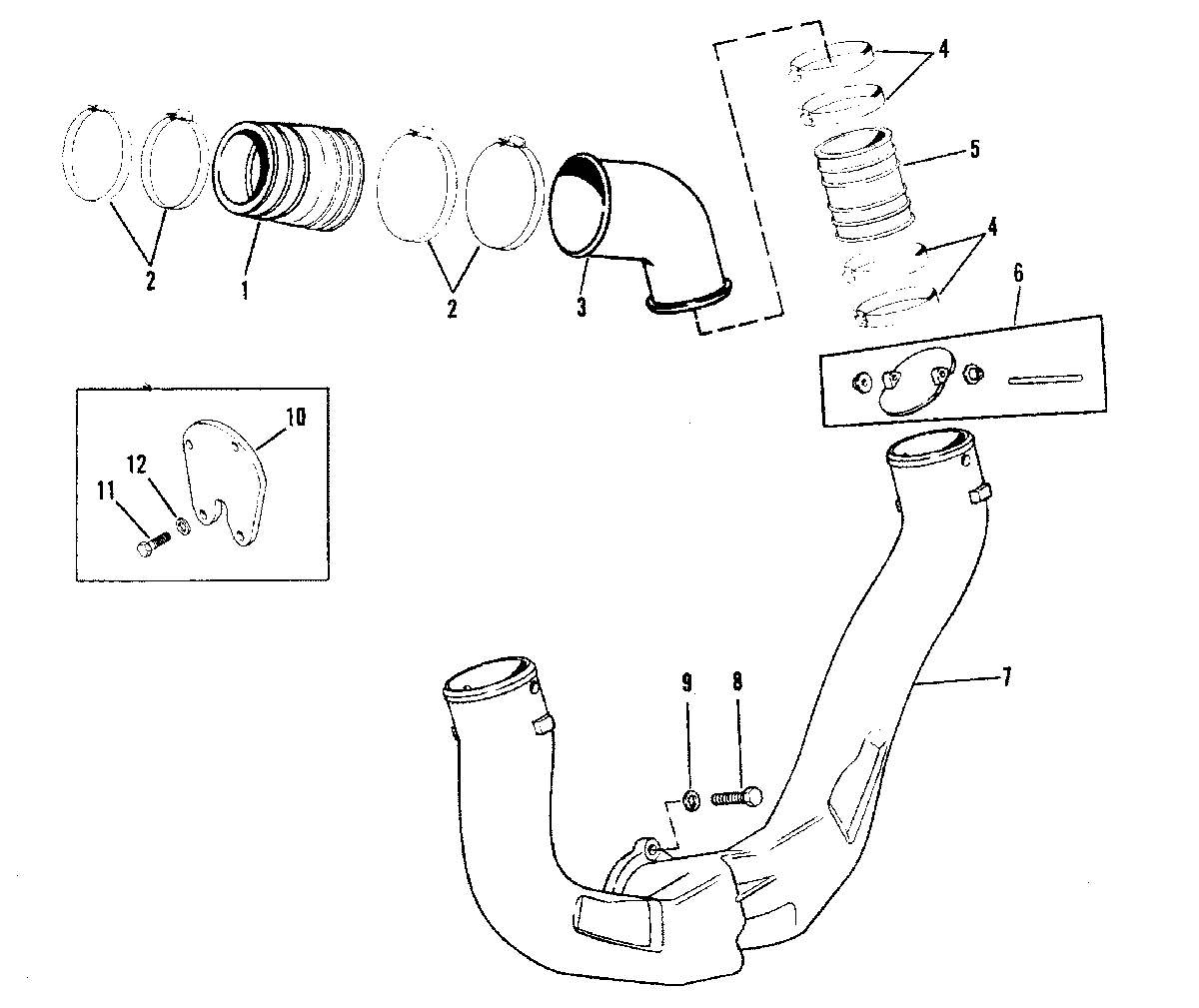

EXHAUST SYSTEM для Mercruiser - 350 MAG. ALPHA GM 350 V-8 1986-1987 0A635178 THRU 0B525981

  • №
    Артикул
    Название
  • 1
    32-44348001 TUBE, EXHAUST
    THRU PROP EXHAUST
    TUBE, EXHAUST
    THRU PROP EXHAUST
  • 2
    54-815504372 CLAMP, EXHAUST BELLOWS
    THRU PROP EXHAUST
    CLAMP, EXHAUST BELLOWS
    THRU PROP EXHAUST
  • 3
    11086T EXHAUST ELBOW ASSEMBLY (PORT)
    THRU PROP EXHAUST
    EXHAUST ELBOW ASSEMBLY (PORT)
    THRU PROP EXHAUST
  • 3
    14343T EXHAUST ELBOW ASSEMBLY (STBD.)
    THRU PROP EXHAUST
    EXHAUST ELBOW ASSEMBLY (STBD.)
    THRU PROP EXHAUST
  • 4
    54-815504372 CLAMP, EXHAUST TUBE
    THRU PROP EXHAUST
    CLAMP, EXHAUST TUBE
    THRU PROP EXHAUST
  • 5
    32-14358001 EXHAUST TUBE
    THRU PROP EXHAUST
    EXHAUST TUBE
    THRU PROP EXHAUST
  • 6
    807166A3 WATER SHUTTER
    THRU PROP EXHAUST
    WATER SHUTTER
    THRU PROP EXHAUST
  • 7
    8M0115149 EXHAUST PIPE
    THRU PROP EXHAUST
    EXHAUST PIPE
    THRU PROP EXHAUST
  • 8
    10-8M0113174 SCREW, EXHAUST ELBOW (1-1/4")
    THRU PROP EXHAUST
    SCREW, EXHAUST ELBOW (1-1/4")
    THRU PROP EXHAUST
  • 9
    13-41471 LOCKWASHER, EXHAUST ELBOW SCREW
    THRU PROP EXHAUST
    LOCKWASHER, EXHAUST ELBOW SCREW
    THRU PROP EXHAUST
  • 10
    861776A2 PLATE
    THRU TRANSOM EXHAUST
    PLATE
    THRU TRANSOM EXHAUST
  • 11
    10-8M0113180 SCREW
    THRU TRANSOM EXHAUST
    SCREW
    THRU TRANSOM EXHAUST
  • 12
    13-41471 LOCKWASHER
    THRU TRANSOM EXHAUST
    LOCKWASHER
    THRU TRANSOM EXHAUST
