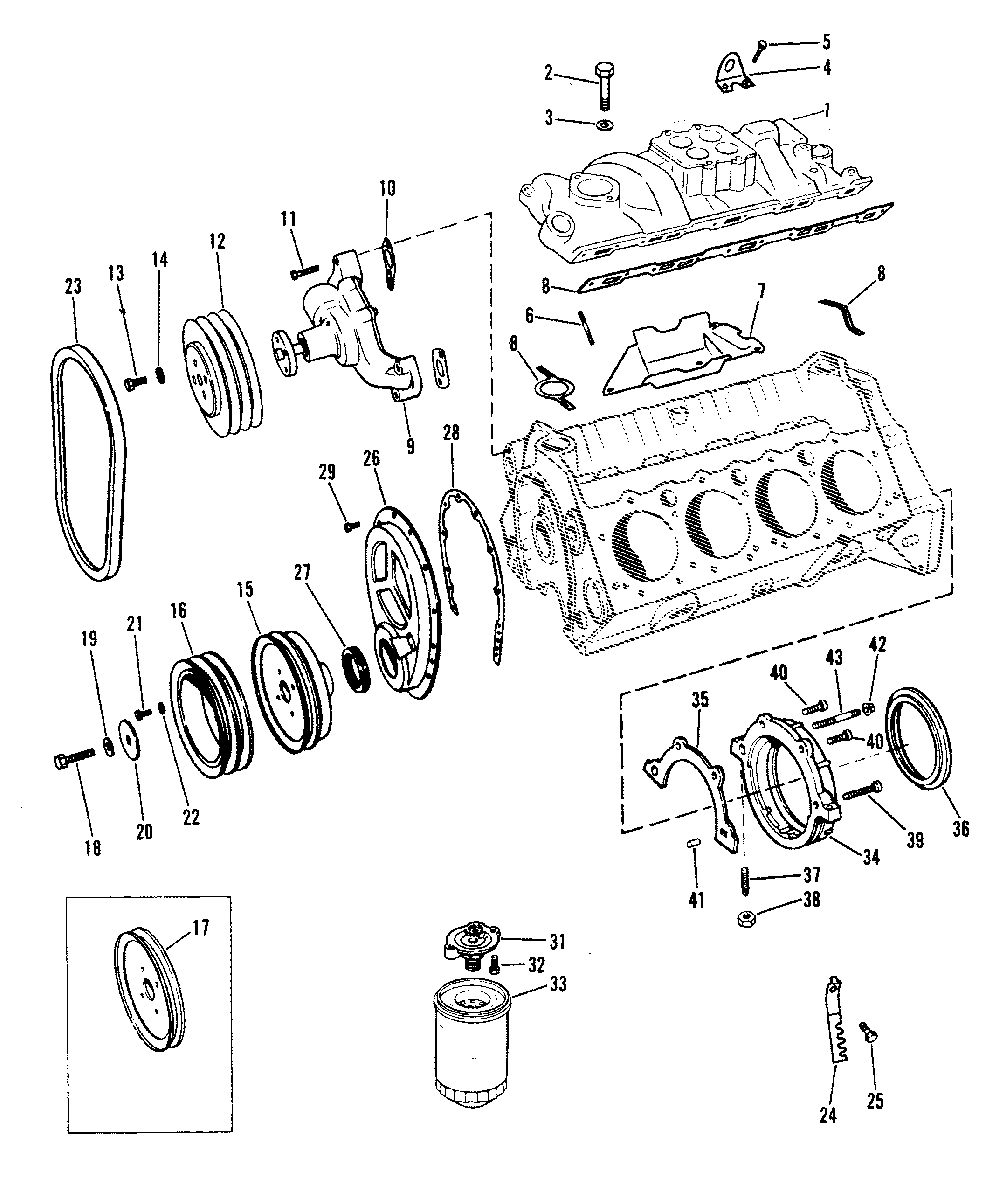

INTAKE MANIFOLD AND FRONT COVER для Mercruiser - 350 MAG. ALPHA GM 350 V-8 1986-1987 0A635178 THRU 0B525981

  • №
    Артикул
    Название
  • 1
    72646T INTAKE MANIFOLD
    INTAKE MANIFOLD
  • 2
    10-11976 BOLT, INTAKE MANIFOLD
    BOLT, INTAKE MANIFOLD
  • 2
    N.S.S. BOLT, INTAKE MANIFOLD (GM #9439921)
    BOLT, INTAKE MANIFOLD (GM #9439921)
  • 3
    12-49112 WASHER, INTAKE MANIFOLD BOLT
    WASHER, INTAKE MANIFOLD BOLT
  • 4
    54-47512 EYE, LIFTING
    EYE, LIFTING
  • 5
    10-34354 SCREW, LIFTING EYE
    SCREW, LIFTING EYE
  • 6
    N.S.S. STUD, GUARD TO INTAKE MANIFOLD (GM #3959544)
    STUD, GUARD TO INTAKE MANIFOLD (GM #3959544)
  • 7
    72647 GUARD, INTAKE MANIFOLD
    GUARD, INTAKE MANIFOLD
  • 8
    27-17145 GASKET SET, INTAKE MANIFOLD
    GASKET SET, INTAKE MANIFOLD
  • 9
    46-8M0113734 WATER PUMP ASSEMBLY
    WATER PUMP ASSEMBLY
  • 10
    27-34897 GASKET, WATER PUMP MOUNTING
    GASKET, WATER PUMP MOUNTING
  • 11
    10-32132 SCREW, WATER PUMP TO CYLINDER BLOCK (1-3/4")
    SCREW, WATER PUMP TO CYLINDER BLOCK (1-3/4")
  • 11
    10-47688 SCREW, WATER PUMP TO CYLINDER BLOCK (2-3/4")
    SCREW, WATER PUMP TO CYLINDER BLOCK (2-3/4")
  • 11
    10-52200 SCREW, WATER PUMP TO CYLINDER BLOCK (1-1/2")
    SCREW, WATER PUMP TO CYLINDER BLOCK (1-1/2")
  • 12
    15120T PULLEY, WATER PUMP (3 GROOVE)
    PULLEY, WATER PUMP (3 GROOVE)
  • 13
    10-47277 SCREW, PULLEY TO WATER PUMP (3/4")
    SCREW, PULLEY TO WATER PUMP (3/4")
  • 14
    13-39107 LOCKWASHER, WATER PUMP PULLEY SCREW
    LOCKWASHER, WATER PUMP PULLEY SCREW
  • 15
    75420 BALANCER, HARMONIC - CRANKSHAFT
    BALANCER, HARMONIC - CRANKSHAFT
  • 16
    33863T PULLEY, HARMONIC BALANCER (2 GROOVE)
    PULLEY, HARMONIC BALANCER (2 GROOVE)
  • 17
    90081A1 PULLEY, (1 GROOVE) (W/POWER STEERING)
    PULLEY, (1 GROOVE) (W/POWER STEERING)
  • 18
    10-72626 BOLT, PULLEY AND HARMONIC BALANCER (2")
    BOLT, PULLEY AND HARMONIC BALANCER (2")
  • 19
    13-39131 LOCKWASHER, PULLEY AND HARMONIC BALANCER BOLT
    LOCKWASHER, PULLEY AND HARMONIC BALANCER BOLT
  • 20
    12-35332001 WASHER, PULLEY AND HARMONIC BALANCER BOLT
    WASHER, PULLEY AND HARMONIC BALANCER BOLT
  • 21
    10-34352 BOLT, PULLEY (7/8") (W/O POWER STEERING)
    BOLT, PULLEY (7/8") (W/O POWER STEERING)
  • 21
    10-35786 BOLT, PULLEY (1") (W/O POWER STEERING)
    BOLT, PULLEY (1") (W/O POWER STEERING)
  • 22
    13-35048 LOCKWASHER, PULLEY BOLT
    LOCKWASHER, PULLEY BOLT
  • 23
    57-93658Q BELT, ALTERNATOR DRIVE (44")
    BELT, ALTERNATOR DRIVE (44")
  • 24
    35365 SUPPORT, SPARK PLUG LEAD WIRE
    SUPPORT, SPARK PLUG LEAD WIRE
  • 25
    10-8M0040582 SCREW, LEAD WIRE SUPPORT (2-1/2")
    SCREW, LEAD WIRE SUPPORT (2-1/2")
  • 26
    8M0127828 COVER ASSEMBLY, CRANKCASE FRONT
    COVER ASSEMBLY, CRANKCASE FRONT
  • 27
    26-97335 OIL SEAL, CRANKCASE FRONT COVER
    OIL SEAL, CRANKCASE FRONT COVER
  • 28
    27-14250 GASKET, CRANKCASE FRONT END COVER
    GASKET, CRANKCASE FRONT END COVER
  • 29
    10-8M0040582 SCREW, CRANKCASE FRONT END COVER TO BLOCK (7/16")
    SCREW, CRANKCASE FRONT END COVER TO BLOCK (7/16")
  • 31
    71920 FILTER VALVE
    OLD DESIGN
    FILTER VALVE
    OLD DESIGN
  • 32
    10-54786 SCREW, FILTER VALVE TO CYLINDER BLOCK
    OLD DESIGN
    SCREW, FILTER VALVE TO CYLINDER BLOCK
    OLD DESIGN
  • 33
    35-866340Q03 OIL FILTER
    OLD DESIGN
    OIL FILTER
    OLD DESIGN
  • 34
    14239 RETAINER, OIL SEAL (REAR)
    RETAINER, OIL SEAL (REAR)
  • 35
    27-881715 GASKET, OIL SEAL RETAINER
    GASKET, OIL SEAL RETAINER
  • 36
    26-8M0077606 OIL SEAL, CRANKSHAFT (REAR)
    OIL SEAL, CRANKSHAFT (REAR)
  • 37
    16-11989 STUD
    STUD
  • 38
    11-11971 NUT
    NUT
  • 39
    10-8M0064241 BOLT, OIL SEAL RETAINER
    BOLT, OIL SEAL RETAINER
  • 40
    10-14242 BOLT, OIL SEAL RETAINER
    BOLT, OIL SEAL RETAINER
  • 41
    17-14263 DOWEL PIN
    DOWEL PIN
  • 42
    11-11996 NUT
    NUT
  • 43
    16-14827 STUD
    STUD
