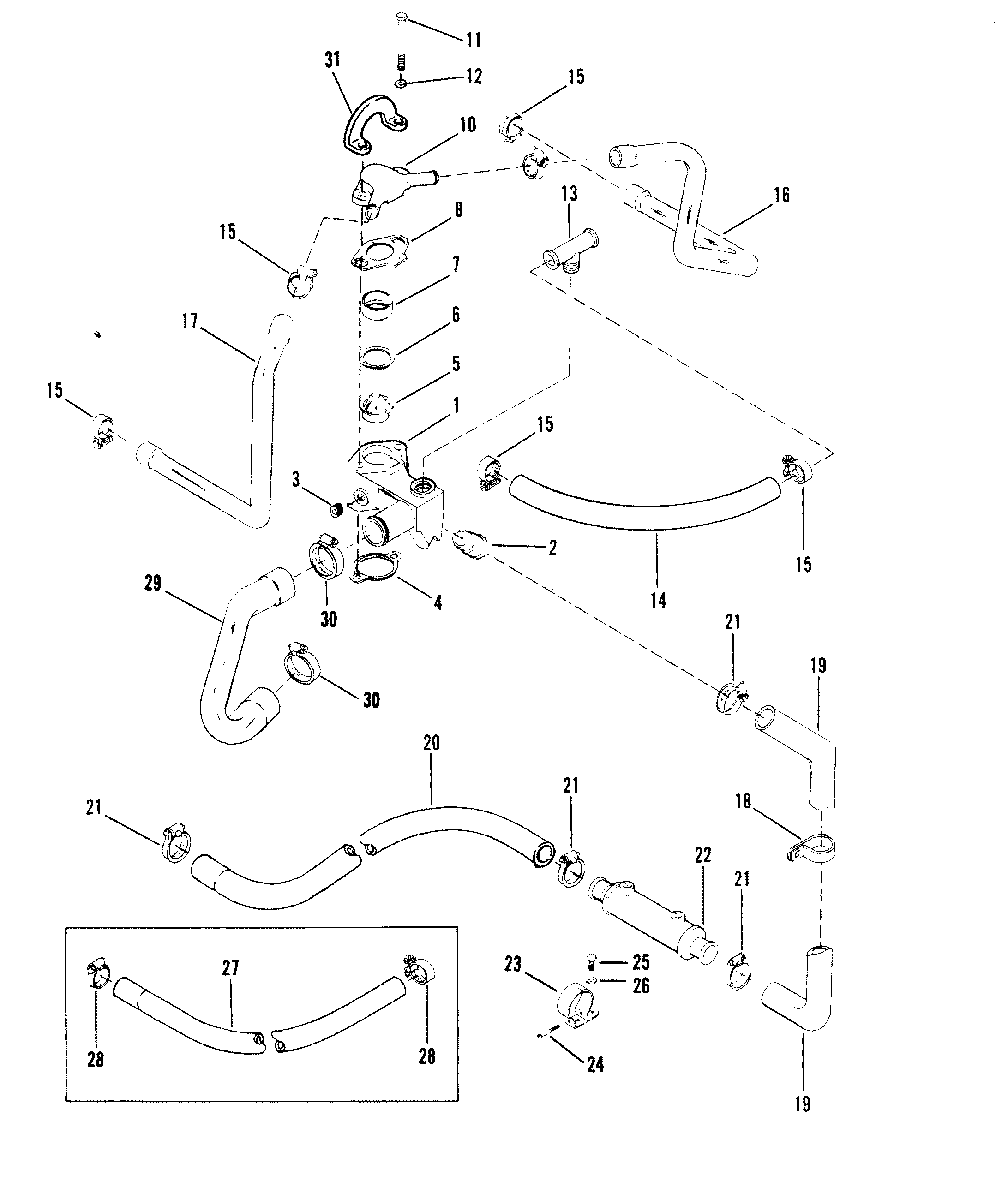

STANDARD COOLING SYSTEM для Mercruiser - 350 MAG. ALPHA GM 350 V-8 1986-1987 0A635178 THRU 0B525981

  • №
    Артикул
    Название
  • 1
    87290A4 THERMOSTAT HOUSING ASSEMBLY
    THERMOSTAT HOUSING ASSEMBLY
  • 2
    23-47511 SLEEVE, THERMOSTAT HOUSING
    SLEEVE, THERMOSTAT HOUSING
  • 3
    22-32803 PIPE PLUG
    PIPE PLUG
  • 4
    27-530451 GASKET, THERMOSTAT HOUSING
    GASKET, THERMOSTAT HOUSING
  • 5
    8M0089715 THERMOSTAT (143)
    THERMOSTAT (143)
  • 6
    27-47510 GASKET, THERMOSTAT
    GASKET, THERMOSTAT
  • 7
    23-47508T SLEEVE, THERMOSTAT
    SLEEVE, THERMOSTAT
  • 8
    27-41812 GASKET, THERMOSTAT COVER
    GASKET, THERMOSTAT COVER
  • 10
    47441A1 COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 11
    10-60410 SCREW, THERMOSTAT HOUSING TO INTAKE MANIFOLD (4-1/4")
    SCREW, THERMOSTAT HOUSING TO INTAKE MANIFOLD (4-1/4")
  • 11
    10-48130 SCREW, THERMOSTAT HOUSING (4-1/2")
    SCREW, THERMOSTAT HOUSING (4-1/2")
  • 12
    13-35048 LOCKWASHER, THERMOSTAT HOUSING SCREW
    LOCKWASHER, THERMOSTAT HOUSING SCREW
  • 13
    22-98477A2 TEE, THERMOSTAT HOUSING
    TEE, THERMOSTAT HOUSING
  • 14
    32-8M0062614 HOSE, TEE TO EXHAUST ELBOWS (17")
    HOSE, TEE TO EXHAUST ELBOWS (17")
  • 15
    54-815504220 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • 16
    32-160211 HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (PORT)
    HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (PORT)
  • 17
    32-871171 HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (STARBOARD)
    HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (STARBOARD)
  • 18
    54-47715 CLIP, HOSE ATTACHING
    CLIP, HOSE ATTACHING
  • 19
    32-88794 HOSE, THERMOSTAT HOUSING TO FLUID COOLER
    W/POWER STEERING
    HOSE, THERMOSTAT HOUSING TO FLUID COOLER
    W/POWER STEERING
  • 20
    32-96246A4 HOSE, FLUID COOLER TO HOUSING (3/4" I.D.)
    W/POWER STEERING
    HOSE, FLUID COOLER TO HOUSING (3/4" I.D.)
    W/POWER STEERING
  • 21
    54-815504220 CLAMP, HOSE ATTACHING
    W/POWER STEERING
    CLAMP, HOSE ATTACHING
    W/POWER STEERING
  • 22
    99356A2 COOLER, POWER STEERING FLUID
    W/POWER STEERING
    COOLER, POWER STEERING FLUID
    W/POWER STEERING
  • 23
    65970T1 BRACKET, COOLER
    W/POWER STEERING
    BRACKET, COOLER
    W/POWER STEERING
  • 24
    10-41408 SCREW, BRACKET
    W/POWER STEERING
    SCREW, BRACKET
    W/POWER STEERING
  • 25
    10-34353 SCREW, BRACKET TO ENGINE
    W/POWER STEERING
    SCREW, BRACKET TO ENGINE
    W/POWER STEERING
  • 26
    12-46132 WASHER, BRACKET SCREW
    W/POWER STEERING
    WASHER, BRACKET SCREW
    W/POWER STEERING
  • 27
    32-98033A3 HOSE, THERMOSTAT HOUSING TO HSG. (3/4" I.D.)
    W/O POWER STEERING
    HOSE, THERMOSTAT HOUSING TO HSG. (3/4" I.D.)
    W/O POWER STEERING
  • 28
    54-815504220 CLAMP, HOSE ATTACHING
    W/O POWER STEERING
    CLAMP, HOSE ATTACHING
    W/O POWER STEERING
  • 29
    32-861590A05 HOSE, THERMOSTAT HOUSING TO WATER PUMP
    HOSE, THERMOSTAT HOUSING TO WATER PUMP
  • 30
    54-815504232 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • 31
    12552 LIFTING EYE (USE 10-48130)
    LIFTING EYE (USE 10-48130)
