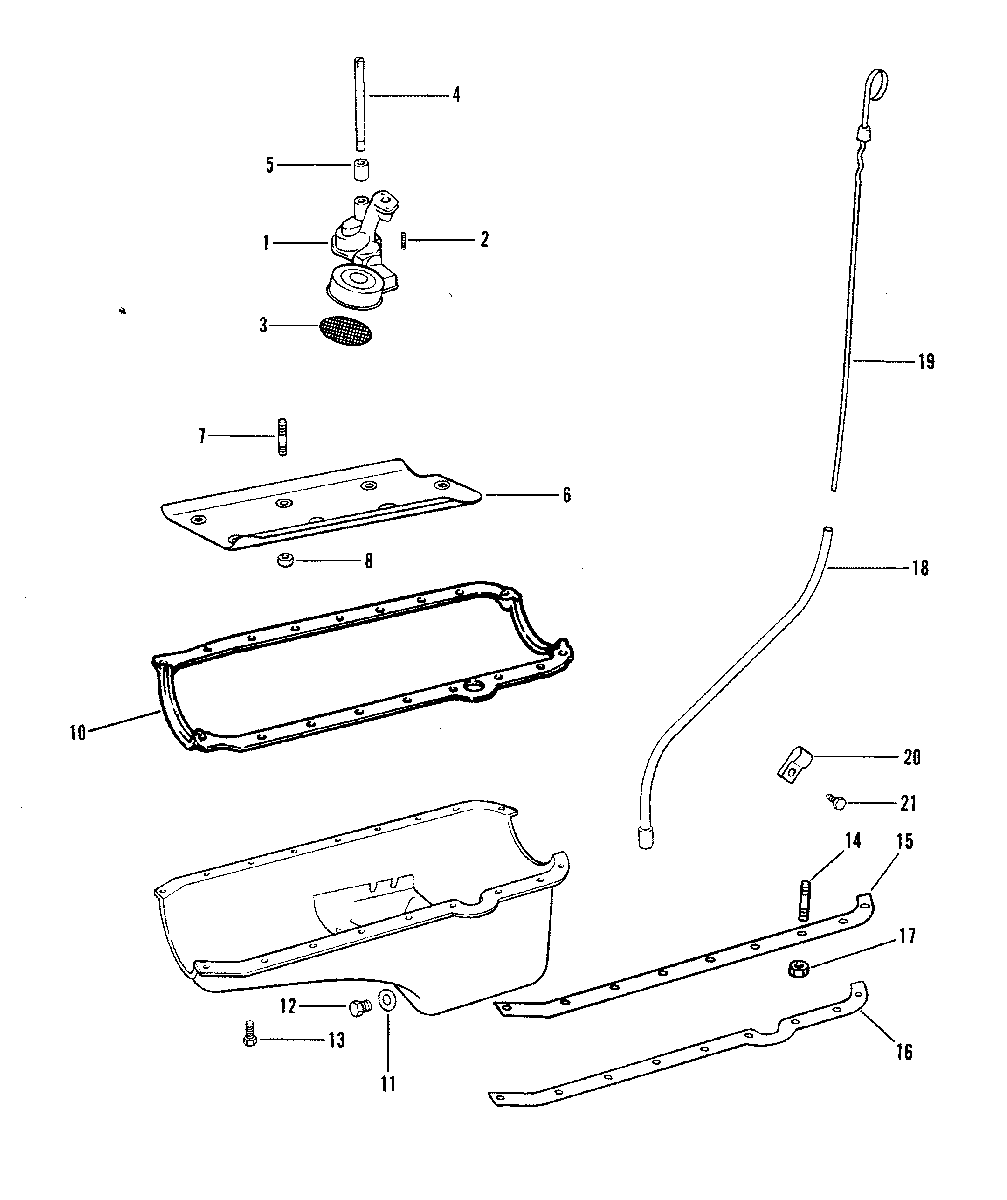

OIL PAN AND OIL PUMP для Mercruiser - 350 MAG. ALPHA GM 350 V-8 1986-1987 0A635178 THRU 0B525981

  • №
    Артикул
    Название
  • 1
    17617 OIL PUMP
    OIL PUMP
  • 2
    N.S.S. BOLT, OIL PUMP TO CYLINDER BLOCK (2") (GM #3892678)
    BOLT, OIL PUMP TO CYLINDER BLOCK (2") (GM #3892678)
  • 3
    35354 SCREEN ASSEMBLY, OIL PUMP
    SCREEN ASSEMBLY, OIL PUMP
  • 4
    36184 SHAFT, OIL PUMP TO DISTRIBUTOR
    SHAFT, OIL PUMP TO DISTRIBUTOR
  • 5
    23-36183 RETAINER, OIL PUMP SHAFT
    RETAINER, OIL PUMP SHAFT
  • 6
    986021 BAFFLE, OIL PAN (CYLINDER BLOCK)
    BAFFLE, OIL PAN (CYLINDER BLOCK)
  • 7
    16-54790 STUD, OIL PAN BAFFLE
    STUD, OIL PAN BAFFLE
  • 8
    11-37500 NUT, OIL PAN BAFFLE STUD
    NUT, OIL PAN BAFFLE STUD
  • 9
    809910 OIL PAN
    OIL PAN
  • 10
    27-138651 GASKET SET - NOT INCLUDED WITH GASKET SET
    GASKET SET - NOT INCLUDED WITH GASKET SET
  • 11
    27-8M0077608 GASKET, DRAIN SCREW
    GASKET, DRAIN SCREW
  • 12
    10-49956 SCREW, OIL PAN DRAIN
    SCREW, OIL PAN DRAIN
  • 13
    10-14070 SCREW, OIL PAN
    SCREW, OIL PAN
  • 14
    16-11989 STUD, OIL PAN
    STUD, OIL PAN
  • 15
    14257 REINFORCEMENT, OIL PAN (PORT)
    REINFORCEMENT, OIL PAN (PORT)
  • 16
    14256 REINFORCEMENT, OIL PAN (STARBOARD)
    REINFORCEMENT, OIL PAN (STARBOARD)
  • 17
    11-11971 NUT, OIL PAD STUD
    NUT, OIL PAD STUD
  • 18
    92163A2 TUBE, OIL LEVEL GAUGE
    TUBE, OIL LEVEL GAUGE
  • 19
    96418A1 GAUGE, OIL LEVEL (DIPSTICK)
    GAUGE, OIL LEVEL (DIPSTICK)
  • 20
    54-92084 CLIP, OIL LEVEL TUBE
    CLIP, OIL LEVEL TUBE
  • 21
    10-98253 SCREW, CLIP TO CYLINDER BLOCK
    SCREW, CLIP TO CYLINDER BLOCK
