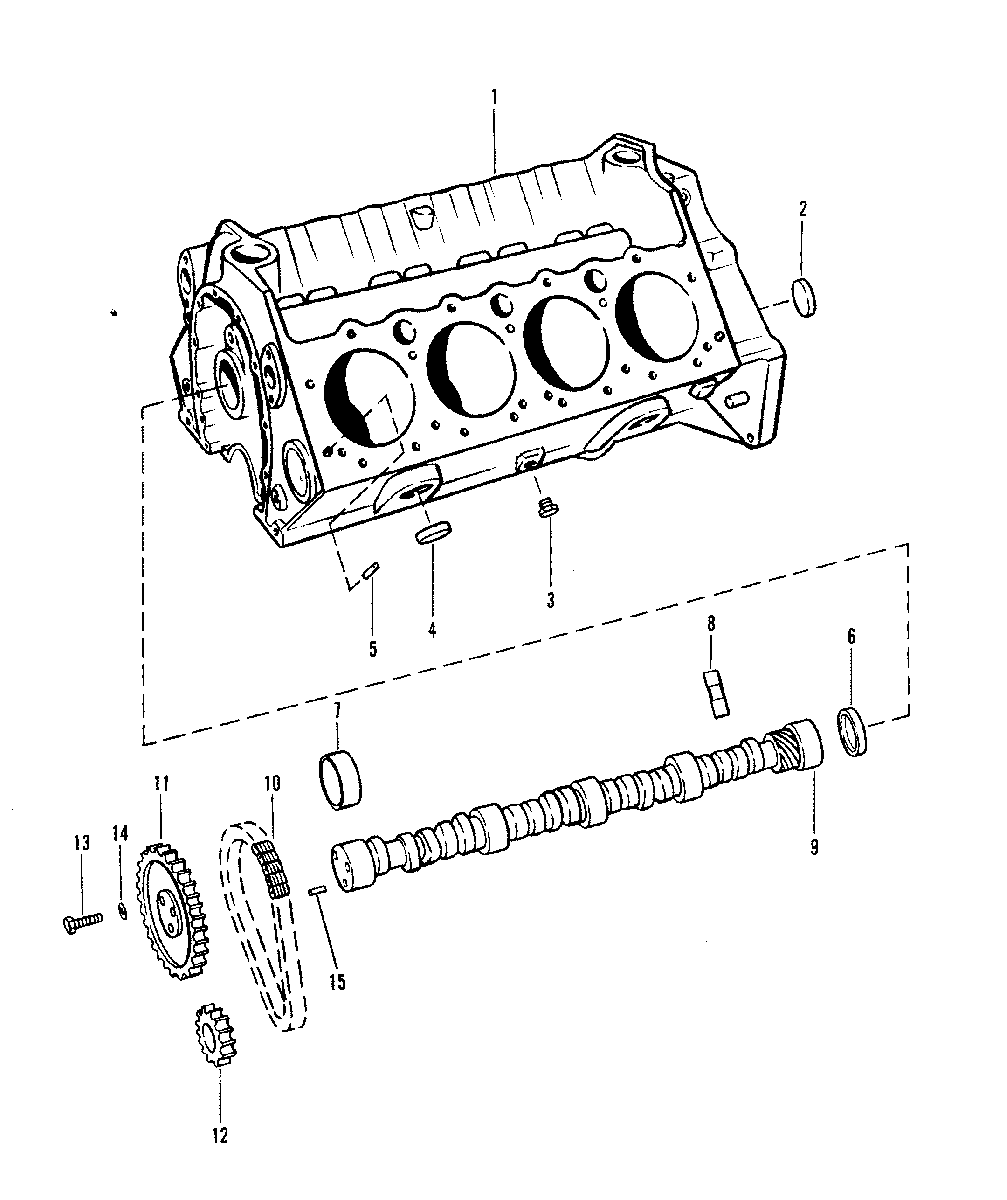

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 350 MAG. ALPHA GM 350 V-8 1986-1987 0A635178 THRU 0B525981

  • №
    Артикул
    Название
  • 1
    841-9549 CYLINDER BLOCK ASSEMBLY
    CYLINDER BLOCK ASSEMBLY
  • 2
    22-32561 PLUG, EXPANSION (1-1/4")
    PLUG, EXPANSION (1-1/4")
  • 3
    22-16951Q1 DRAIN COCK, CYLINDER BLOCK
    DRAIN COCK, CYLINDER BLOCK
  • 4
    19-34270 PLUG, EXPANSION - CYLINDER BLOCK (1-5/8" DIA.)
    PLUG, EXPANSION - CYLINDER BLOCK (1-5/8" DIA.)
  • 5
    17-35465 PIN, DOWEL - BLOCK TO HEAD (5/16" DIA.)
    PIN, DOWEL - BLOCK TO HEAD (5/16" DIA.)
  • 6
    22-72640 PLUG, EXPANSION - CAMSHAFT BEARING HOLE
    PLUG, EXPANSION - CAMSHAFT BEARING HOLE
  • 7
    23-85674 BEARING UNIT, CAMSHAFT (SET)
    BEARING UNIT, CAMSHAFT (SET)
  • 8
    72638 LIFTER, HYDRAULIC VALVE
    LIFTER, HYDRAULIC VALVE
  • 9
    431-5943 CAMSHAFT
    CAMSHAFT
  • 10
    35378 CHAIN, CAMSHAFT TIMING
    CHAIN, CAMSHAFT TIMING
  • 11
    17161A1 SPROCKET, CAMSHAFT TIMING
    SPROCKET, CAMSHAFT TIMING
  • 12
    17161A1 SPROCKET, CRANKSHAFT TIMING
    SPROCKET, CRANKSHAFT TIMING
  • 13
    10-34505 BOLT, CAMSHAFT TIMING SPROCKETS (3/4")
    BOLT, CAMSHAFT TIMING SPROCKETS (3/4")
  • 14
    12-848136 WASHER, CAMSHAFT TIMING SPROCKET BOLT
    WASHER, CAMSHAFT TIMING SPROCKET BOLT
  • 15
    17-843378 PIN, CAMSHAFT SPROCKET
    PIN, CAMSHAFT SPROCKET
