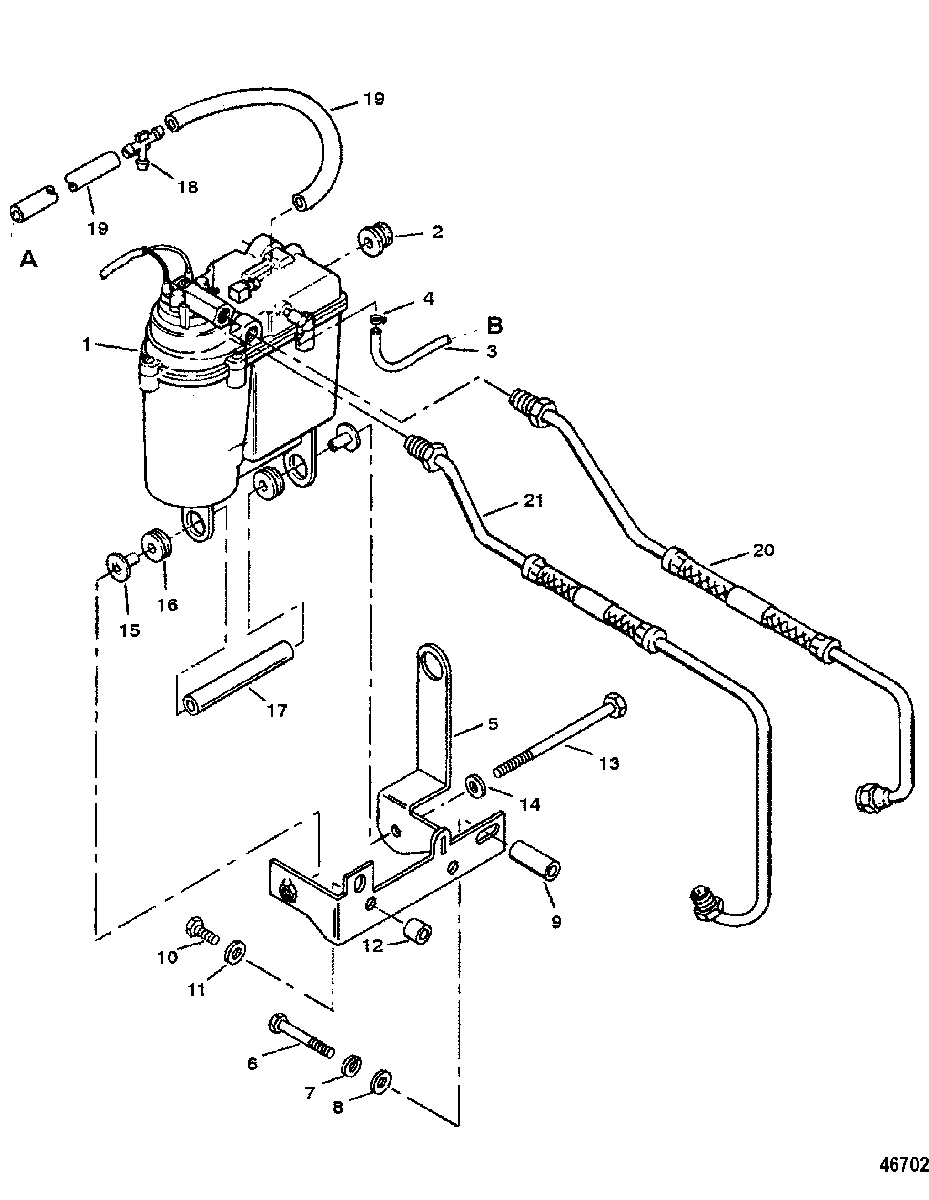

VAPOR SEPARATOR TANK AND FUEL LINES для Mercruiser - 350 MAG. ALPHA EFI(GEN+) GM 350 V-8 1996 0F800300 THRU 0K001508

  • №
    Артикул
    Название
  • 1
    806643A5 TANK, Vapor Separator
    TANK, Vapor Separator
  • 2
    25-880331 GROMMET
    GROMMET
  • 3
    32-80568932 HOSE
    HOSE
  • 4
    54-815504105 CLAMP, Worm Gear (11-18 mm)
    CLAMP, Worm Gear (11-18 mm)
  • 5
    806645T BRACKET
    BRACKET
  • 6
    10-26486 SCREW, (.375-16 x 2.375)
    SCREW, (.375-16 x 2.375)
  • 7
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 8
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 9
    23-15895 SPACER, (.38 x 1.00 x 1.44) (1-7/16")
    SPACER, (.38 x 1.00 x 1.44) (1-7/16")
  • 10
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 11
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 12
    23-91034 SPACER, (.380 x 1.00 x .530) (1/2")
    SPACER, (.380 x 1.00 x .530) (1/2")
  • 13
    10-807056 SCREW
    SCREW
  • 14
    12-26825 WASHER, (.328 x .750 x .06)
    WASHER, (.328 x .750 x .06)
  • 15
    23-19064 BUSHING
    BUSHING
  • 16
    25-88033 GROMMET
    GROMMET
  • 17
    23-806648 SPACER
    SPACER
  • 18
    22-806689 FITTING, Tee
    FITTING, Tee
  • 19
    32-7381567 TUBING, (42.00 Inches Bulk)
    TUBING, (42.00 Inches Bulk)
  • 20
    32-807851T LINE, Fuel
    (OUTLET)
    LINE, Fuel
    (OUTLET)
  • 21
    32-807850T LINE, Fuel
    (INLET)
    LINE, Fuel
    (INLET)
