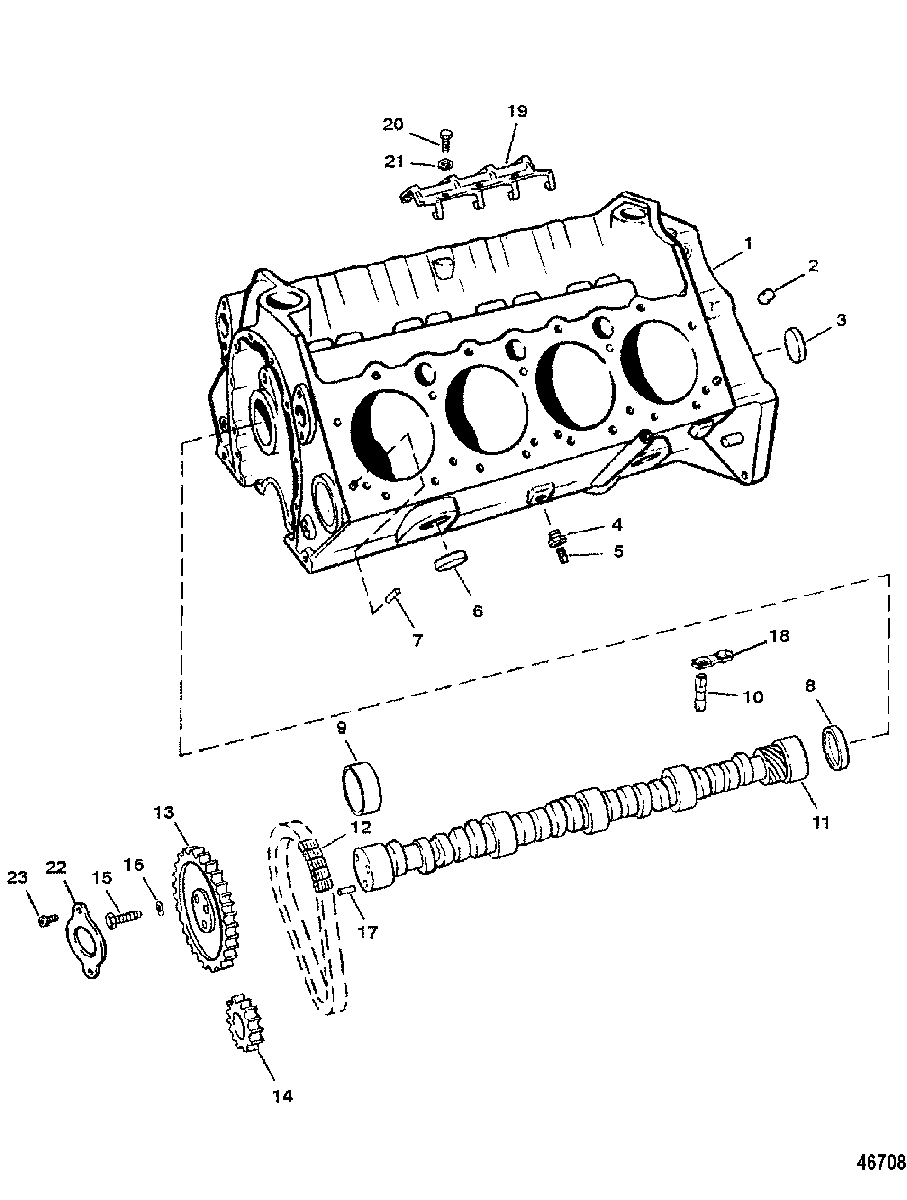

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 350 MAG. ALPHA EFI(GEN+) GM 350 V-8 1996 0F800300 THRU 0K001508

  • №
    Артикул
    Название
  • 1
    NSS NOT SOLD SEPARATE
    (ORDER LONG BLOCK 807447A1)
    NOT SOLD SEPARATE
    (ORDER LONG BLOCK 807447A1)
  • 2
    22-32561 PLUG, (.250-18 x .41) (1/4")
    PLUG, (.250-18 x .41) (1/4")
  • 3
    19-816565 PLUG, Pipe(.468) (15/32")
    PLUG, Pipe(.468) (15/32")
  • 4
    22-48556 BUSHING , Reducer (.250 To .125)
    BUSHING , Reducer (.250 To .125)
  • 5
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • 6
    19-34270 EXPANSION PLUG, (1.625), Expansion (1-5/8" DIA.)
    EXPANSION PLUG, (1.625), Expansion (1-5/8" DIA.)
  • 7
    17-35465 PIN, Dowel (.312), Dowel (5/16" DIA.)
    PIN, Dowel (.312), Dowel (5/16" DIA.)
  • 8
    22-72640 PLUG, Expansion
    PLUG, Expansion
  • 9
    23-85674 BEARING SET (SET)
    BEARING SET (SET)
  • 10
    17340T1 LIFTER, Roller
    LIFTER, Roller
  • 11
    431-811658 CAMSHAFT
    CAMSHAFT
  • 12
    17161T CHAIN, Timing
    CHAIN, Timing
  • 13
    43-8116591 SPROCKET, Camshaft
    SPROCKET, Camshaft
  • 14
    43-17160 SPROCKET, Crankshaft
    SPROCKET, Crankshaft
  • 15
    10-8M0043993 SCREW, (.312-18 x .750) (3/4")
    SCREW, (.312-18 x .750) (3/4")
  • 16
    12-848136 WASHER, (.328 x .680 x .190)
    WASHER, (.328 x .680 x .190)
  • 17
    17-843378 PIN, Dowel (1/4 In. Diameter)
    PIN, Dowel (1/4 In. Diameter)
  • 18
    17341T GUIDE, Lifter
    GUIDE, Lifter
  • 19
    811662 RETAINER, Lifter Guide
    RETAINER, Lifter Guide
  • 20
    10-34500 SCREW, (.312-18 x .625)
    SCREW, (.312-18 x .625)
  • 21
    12-811664 WASHER, (.3125 Inch)
    WASHER, (.3125 Inch)
  • 22
    845941 RETAINER
    RETAINER
  • 23
    10-845943 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • -
    860186R5 MARINE LONG BLOCK ENGINE (4 BBL TBI)
    (SEE NOTE)
    MARINE LONG BLOCK ENGINE (4 BBL TBI)
    (SEE NOTE)
  • -
    92-809825 RTV SILICONE, (3 Ounce Tube) Metallic Blue (WHERE APPLICABLE)
    RTV SILICONE, (3 Ounce Tube) Metallic Blue (WHERE APPLICABLE)
  • -
    92-34227Q02 SEALING COMPOUND, (16 Ounce) (WHERE APPLICABLE)
    SEALING COMPOUND, (16 Ounce) (WHERE APPLICABLE)
