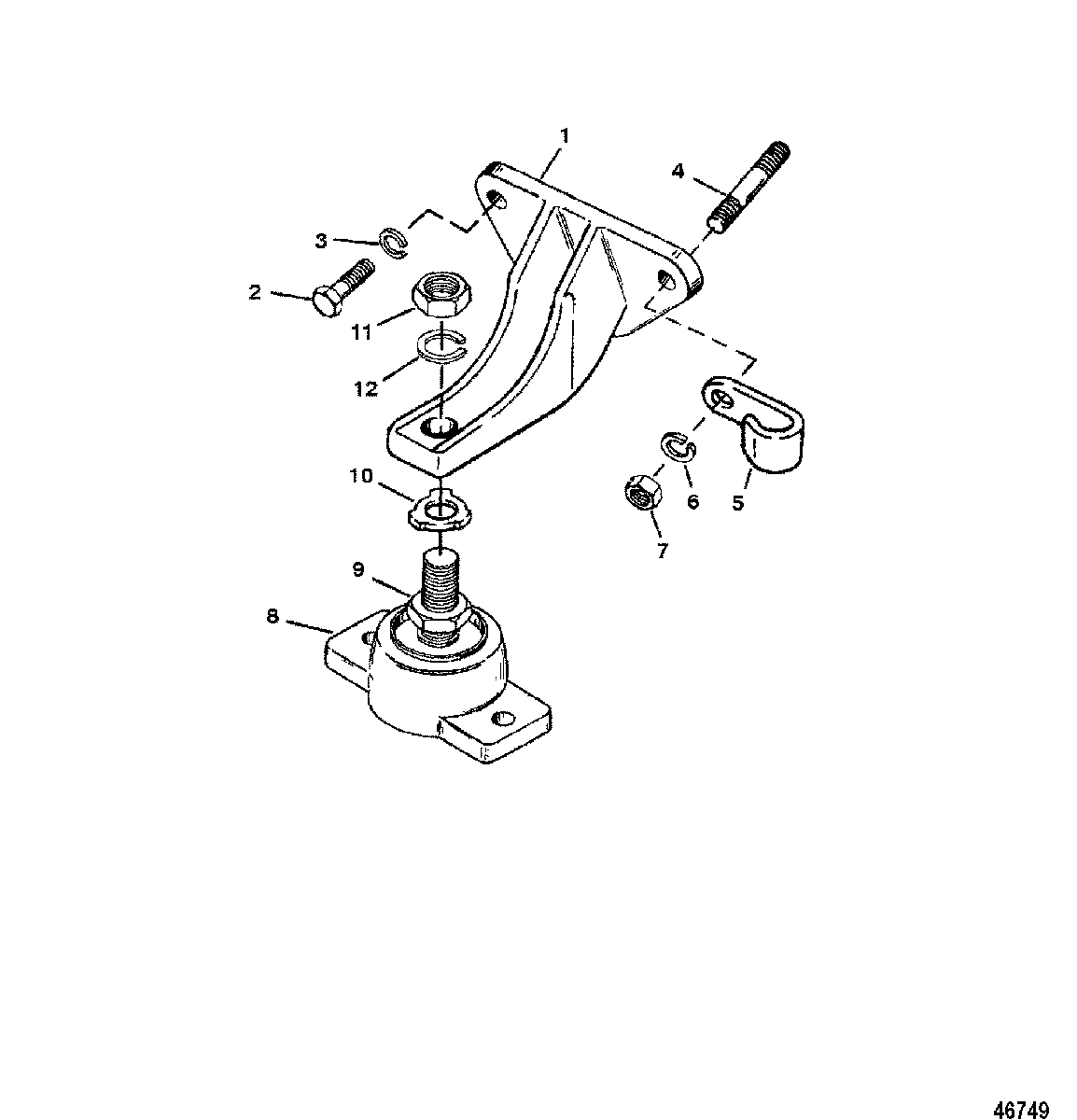

ENGINE MOUNTING для Mercruiser - 350 MAG. ALPHA EFI(GEN+) GM 350 V-8 1996 0F800300 THRU 0K001508

  • №
    Артикул
    Название
  • 1
    79550A1 BRACKET
    BRACKET
  • 2
    10-68101 SCREW, (.375-16 x 1.375)
    PORT
    SCREW, (.375-16 x 1.375)
    PORT
  • 3
    13-35048 LOCKWASHER, (.375)
    PORT
    LOCKWASHER, (.375)
    PORT
  • 2
    10-68101 SCREW, (.375-16 x 1.375)
    STARBOARD
    SCREW, (.375-16 x 1.375)
    STARBOARD
  • 3
    13-35048 LOCKWASHER, (.375)
    STARBOARD
    LOCKWASHER, (.375)
    STARBOARD
  • 4
    16-861316 STUD, (.375-16 x 2.750) Special
    STARBOARD
    STUD, (.375-16 x 2.750) Special
    STARBOARD
  • 5
    54-78945 J CLAMP, Harness Support
    STARBOARD
    J CLAMP, Harness Support
    STARBOARD
  • 6
    13-35048 LOCKWASHER, (.375)
    STARBOARD
    LOCKWASHER, (.375)
    STARBOARD
  • 7
    11-32219 NUT, (.375-16)
    STARBOARD
    NUT, (.375-16)
    STARBOARD
  • 8
    66284A2 BASE ASSEMBLY
    BASE ASSEMBLY
  • 9
    11-20739 NUT, (.750-16)
    NUT, (.750-16)
  • 10
    14-12657 TAB WASHER
    TAB WASHER
  • 11
    11-20739 NUT, (.750-16)
    NUT, (.750-16)
  • 12
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
