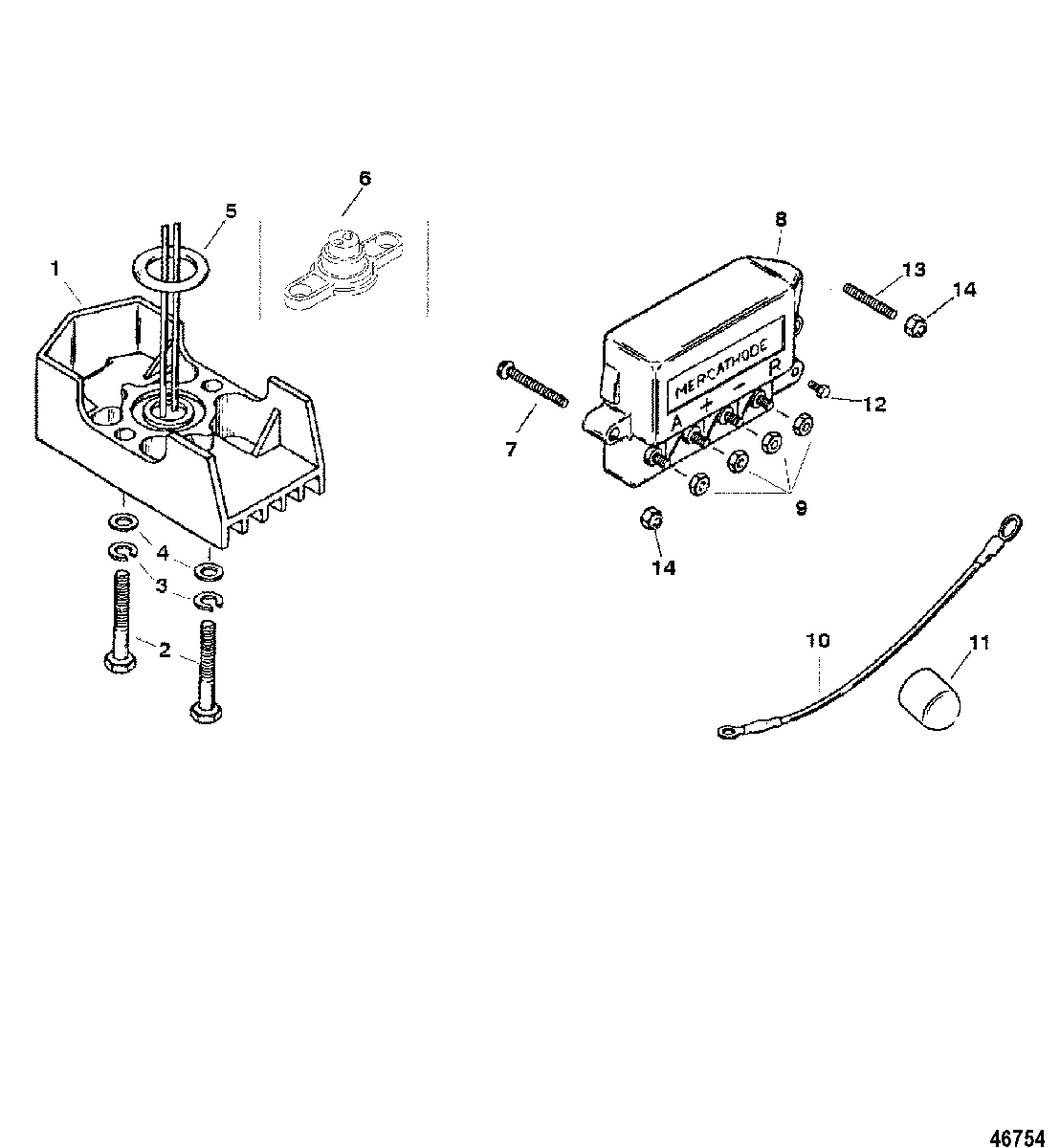

MERCATHODE COMPONENTS для Mercruiser - 350 MAG. ALPHA EFI(GEN+) GM 350 V-8 1996 0F800300 THRU 0K001508

  • №
    Артикул
    Название
  • 1
    8M0085692 ELECTRODE ASSEMBLY
    ELECTRODE ASSEMBLY
  • 2
    10-69067 SCREW, (.250-20 x 1.375)
    SCREW, (.250-20 x 1.375)
  • 3
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 4
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 5
    25-88388 O-RING
    (DESIGN I)
    O-RING
    (DESIGN I)
  • 6
    25-805294 GROMMET
    (DESIGN II)
    GROMMET
    (DESIGN II)
  • 7
    10-72202 SCREW, (#10-32 x 1.25) (1-1/4 IN.)
    SCREW, (#10-32 x 1.25) (1-1/4 IN.)
  • 7
    10-805565 SCREW, (#10-32 x .750) (3/4 IN.)
    SCREW, (#10-32 x .750) (3/4 IN.)
  • 8
    42600A09 CONTROLLER ASSEMBLY
    CONTROLLER ASSEMBLY
  • 9
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 10
    84-88543A3 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 11
    44574T CAP
    CAP
  • 12
    10-62568 SCREW, (#10-16 x .375)
    SCREW, (#10-16 x .375)
  • 13
    16-805459 STUD, Mercathode Mounting
    STUD, Mercathode Mounting
  • 14
    11-46438 NUT, (#10-32)
    NUT, (#10-32)
