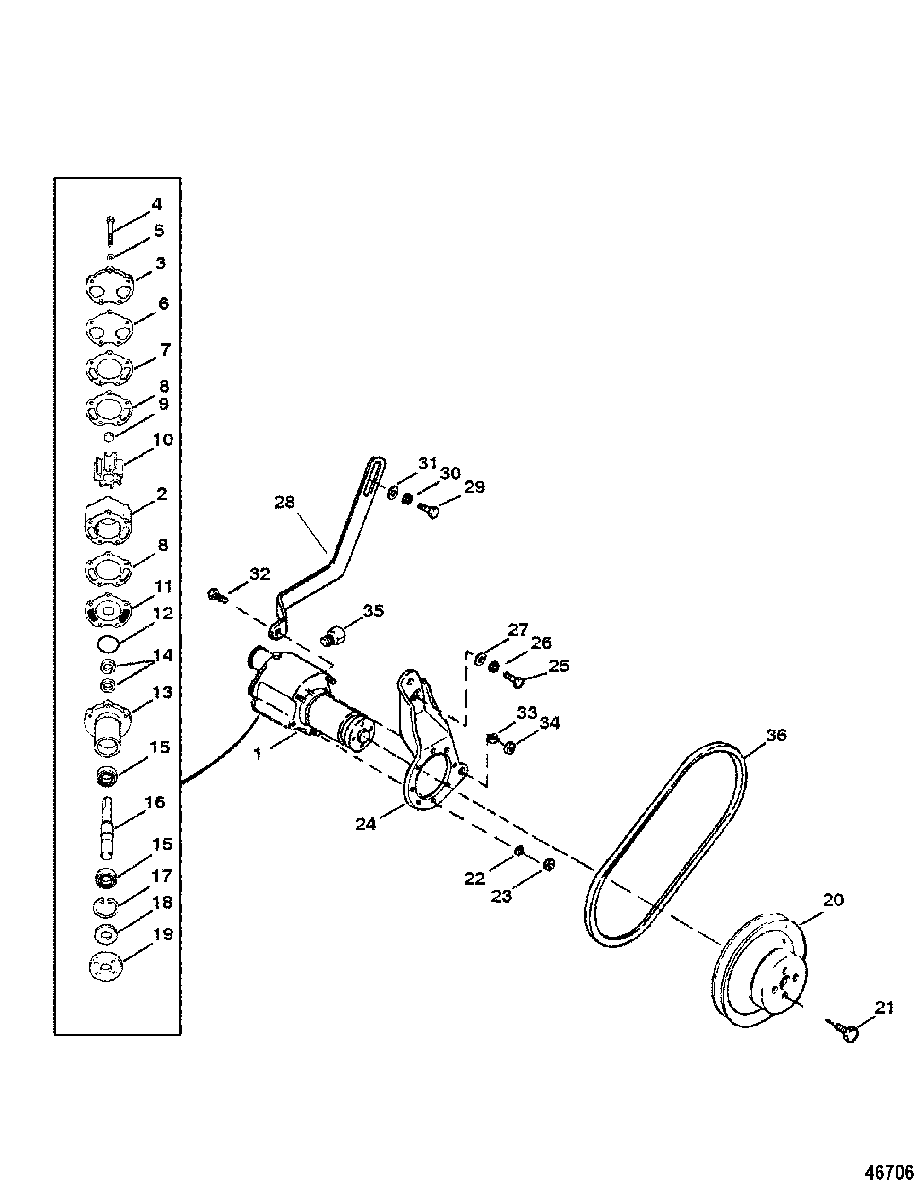

SEA WATER PUMP ASSEMBLY(BRAVO ENGINES) для Mercruiser - 350 MAG. ALPHA EFI(GEN+) GM 350 V-8 1996 0F800300 THRU 0K001508

  • №
    Артикул
    Название
  • 1
    46-807151A12 PUMP ASSEMBLY, Sea Water - Complete
    PUMP ASSEMBLY, Sea Water - Complete
  • 2
    46-807151A14 BODY/IMPELLER KIT
    BODY/IMPELLER KIT
  • 3
    87631A4 COVER KIT
    COVER KIT
  • 4
    10-73275 SCREW, (.312-18 x 2.88) (2-7/8")
    SCREW, (.312-18 x 2.88) (2-7/8")
  • 4
    10-99347 SCREW, (.312-18 x 3.75) (3-3/4")
    SCREW, (.312-18 x 3.75) (3-3/4")
  • 5
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 6
    27-8052151 GASKET
    GASKET
  • 7
    94916 WEAR PLATE
    WEAR PLATE
  • 8
    27-94914 GASKET
    GASKET
  • 9
    19-59504 PLUG
    PLUG
  • 10
    47-59362T1 IMPELLER
    IMPELLER
  • 11
    94576 WEAR PLATE
    WEAR PLATE
  • 12
    25-94288 QUAD RING
    QUAD RING
  • 13
    46-94913A2 HOUSING ASSEMBLY, Water Pump
    HOUSING ASSEMBLY, Water Pump
  • 14
    26-90562 SEAL, (1.254 x .312)
    SEAL, (1.254 x .312)
  • 15
    30-72961 BEARING, Ball
    BEARING, Ball
  • 16
    59501A1 SHAFT
    SHAFT
  • 17
    53-23720 RING, Retaining
    RING, Retaining
  • 18
    26-72785 SEAL
    SEAL
  • 19
    47530 HUB
    HUB
  • 20
    52822T PULLEY
    PULLEY
  • 21
    10-47277 SCREW, (.312-24 x .750) (3/4")
    SCREW, (.312-24 x .750) (3/4")
  • 22
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 23
    11-21908 NUT, (.312-18) Cad Plated
    NUT, (.312-18) Cad Plated
  • 24
    89535T1 BRACKET
    BRACKET
  • 25
    10-34353 SCREW, (.375-16 x 1.00) (1")
    SCREW, (.375-16 x 1.00) (1")
  • 26
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 27
    12-34714 WASHER
    WASHER
  • 28
    896091 BRACE
    BRACE
  • 29
    10-34353 SCREW, (.375-16 x 1.00) (1")
    SCREW, (.375-16 x 1.00) (1")
  • 30
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 31
    12-34714 WASHER
    WASHER
  • 32
    10-35786 SCREW, (.375-24 x 1.00) (1")
    SCREW, (.375-24 x 1.00) (1")
  • 33
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 34
    11-46335 NUT, (.375-24)
    NUT, (.375-24)
  • 35
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • 36
    57-13457Q BELT
    BELT
