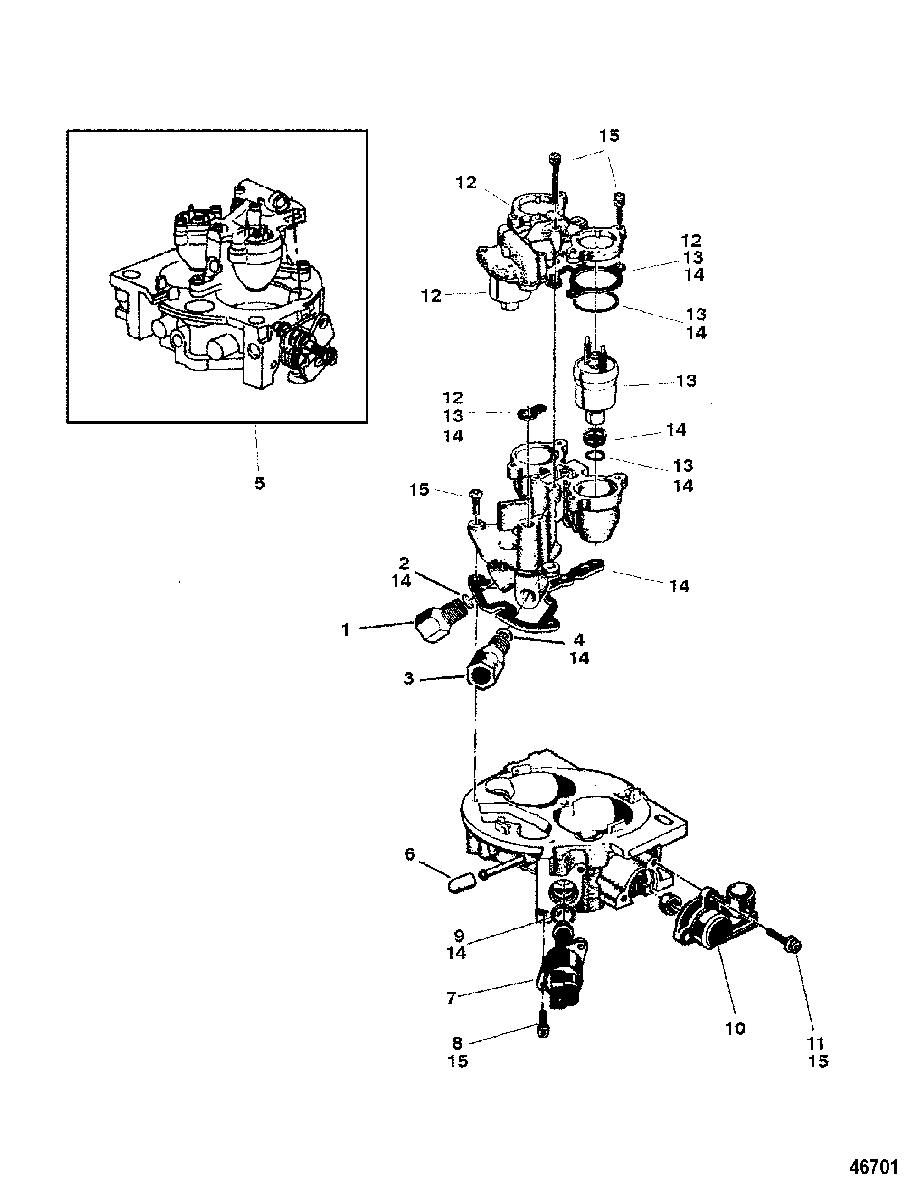

THROTTLE BODY для Mercruiser - 350 MAG. ALPHA EFI(GEN+) GM 350 V-8 1996 0F800300 THRU 0K001508

  • №
    Артикул
    Название
  • 1
    22-806653A1 FITTING ASSEMBLY (INLET)
    FITTING ASSEMBLY (INLET)
  • 2
    26-806655 SEAL
    SEAL
  • 3
    22-806654A1 FITTING ASSEMBLY
    FITTING ASSEMBLY
  • 4
    26-806706 SEAL
    SEAL
  • 5
    860320A1 THROTTLE BODY ASSEMBLY
    THROTTLE BODY ASSEMBLY
  • 6
    19-854310 PLUG
    PLUG
  • 7
    805224A1 MOTOR ASSEMBLY, IAC
    MOTOR ASSEMBLY, IAC
  • 8
    10-805400 SCREW, (#8-32 x .500) Stainless Steel
    SCREW, (#8-32 x .500) Stainless Steel
  • 9
    25-808547 O-RING
    O-RING
  • 10
    805226A1 SENSOR ASSEMBLY, TPS
    SENSOR ASSEMBLY, TPS
  • 11
    10-805400 SCREW, (#8-32 x .500) Stainless Steel
    SCREW, (#8-32 x .500) Stainless Steel
  • 12
    852955 REGULATOR KIT, Fuel Pressure
    REGULATOR KIT, Fuel Pressure
  • 13
    852956A1 INJECTOR KIT
    INJECTOR KIT
  • 14
    27-852957 GASKET KIT, Overhaul
    GASKET KIT, Overhaul
  • 15
    10-852958 SCREW KIT
    SCREW KIT
