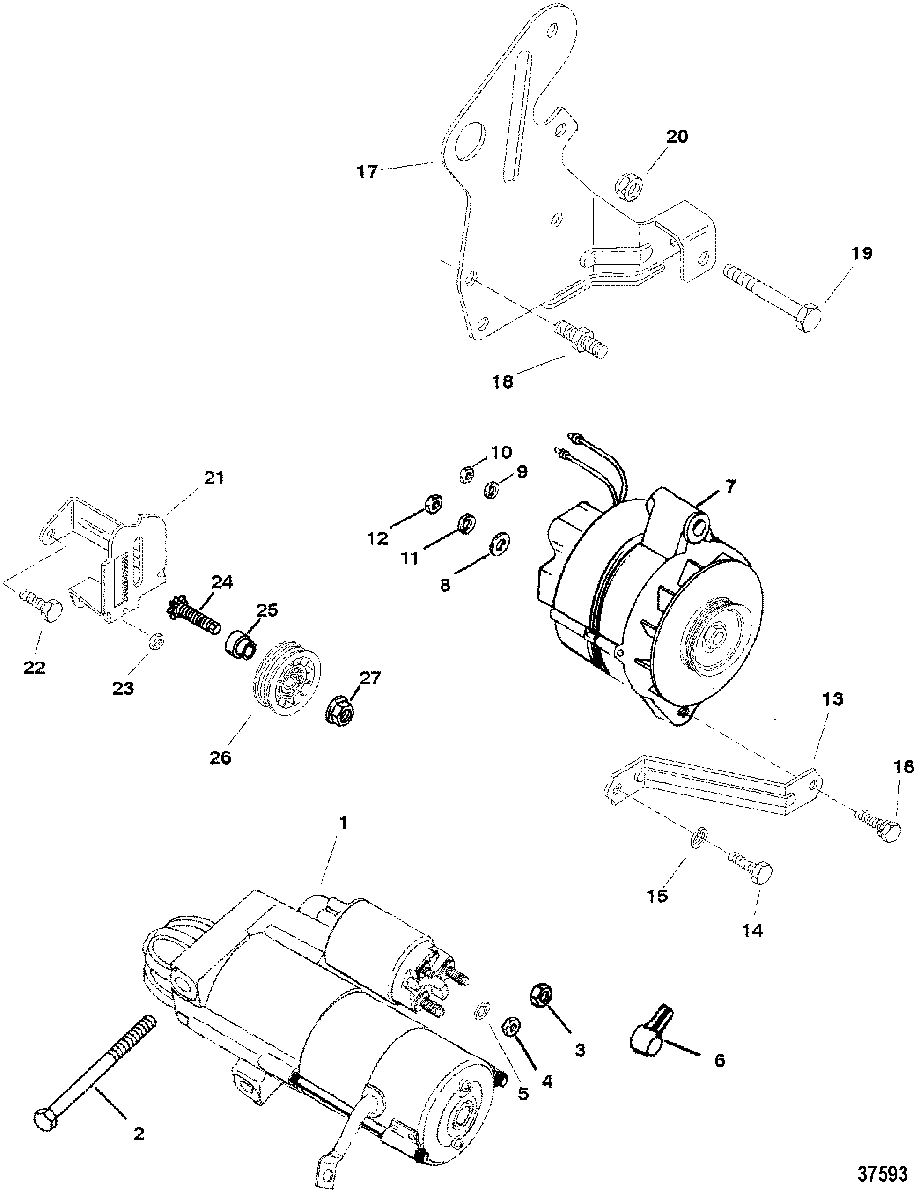

STARTER MOTOR AND ALTERNATOR для Mercruiser - 350 MAG. ALPHA (4 BBL.) GM 350 V-8 1997 0K001527 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    50-863007A1 STARTER MOTOR ASSEMBLY
    (SEE "STARTER MOTOR" FOR BREAKDOWN)
    STARTER MOTOR ASSEMBLY
    (SEE "STARTER MOTOR" FOR BREAKDOWN)
  • 2
    10-8053432 SCREW, (.375-16 x 4.33)
    SCREW, (.375-16 x 4.33)
  • 3
    11-806949 NUT, (M8-1.5)
    NUT, (M8-1.5)
  • 4
    11-400211 NUT, (M5) Stainless Steel
    NUT, (M5) Stainless Steel
  • 5
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 6
    85-79695T BOOT, Insulator - Black
    BOOT, Insulator - Black
  • 7
    807652T ALTERNATOR ASSEMBLY
    (SEE "ALTERNATOR" FOR BREAKDOWN)
    ALTERNATOR ASSEMBLY
    (SEE "ALTERNATOR" FOR BREAKDOWN)
  • 8
    12-96457 WASHER, Phenolic (.27 x .81 x .062)
    WASHER, Phenolic (.27 x .81 x .062)
  • 9
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 10
    11-79989 NUT, (#10-24) Stainless Steel
    NUT, (#10-24) Stainless Steel
  • 11
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 12
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 13
    807750T BRACE
    BRACE
  • 14
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 15
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 16
    10-29198 SCREW AND LOCKWASHER, (.312-18 x .875)
    SCREW AND LOCKWASHER, (.312-18 x .875)
  • 17
    860370T BRACKET, Alternator/Power Steering
    BRACKET, Alternator/Power Steering
  • 18
    16-860102 STUD, (.375-16 x 1.730)
    STUD, (.375-16 x 1.730)
  • 19
    10-56743 SCREW, (.375-24 x 3.125)
    SCREW, (.375-24 x 3.125)
  • 20
    11-23161 NUT, (.375-24)
    NUT, (.375-24)
  • 21
    807767T BRACKET, Idler Adjustment
    BRACKET, Idler Adjustment
  • 22
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 23
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 24
    43-8M0113182 PINION STUD, (.437-20) Stainless Steel
    PINION STUD, (.437-20) Stainless Steel
  • 25
    865193 BUSHING
    BUSHING
  • 26
    807757T PULLEY ASSEMBLY, Idler - Black
    PULLEY ASSEMBLY, Idler - Black
  • 27
    11-859135 NUT, (.437-20)
    NUT, (.437-20)
