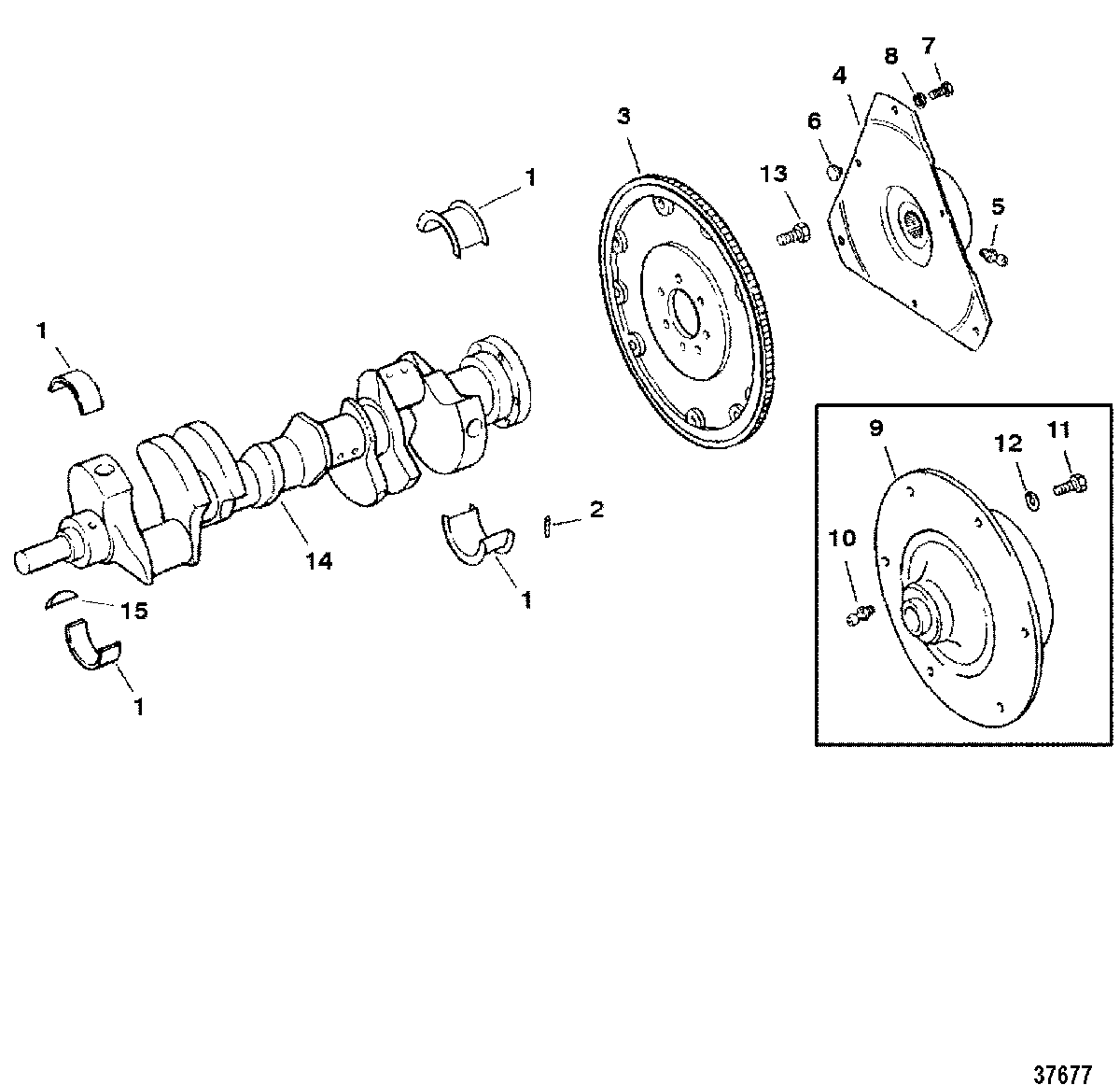

CRANKSHAFT AND FLYWHEEL для Mercruiser - 350 MAG. ALPHA (4 BBL.) GM 350 V-8 1997 0K001527 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    23-818465 BEARING SET, 5 Pair
    (STANDARD)
    BEARING SET, 5 Pair
    (STANDARD)
  • 1
    23-818466 BEARING SET, 5 Pair
    (.001 U.S.)
    BEARING SET, 5 Pair
    (.001 U.S.)
  • 1
    23-818467 BEARING SET, 5 Pair
    (.010 U.S.)
    BEARING SET, 5 Pair
    (.010 U.S.)
  • 1
    23-818468 BEARING SET, 5 Pair
    (.020 U.S.)
    BEARING SET, 5 Pair
    (.020 U.S.)
  • 2
    17-43504 PIN, Dowel (1/4 IN.)
    PIN, Dowel (1/4 IN.)
  • 3
    222-8M0047213 FLYWHEEL
    FLYWHEEL
  • 4
    18643A5 COUPLING ASSEMBLY
    5.7L/LX ALPHA/5.7L BRAVO/ AND 350 MAGNUM ALPHA
    COUPLING ASSEMBLY
    5.7L/LX ALPHA/5.7L BRAVO/ AND 350 MAGNUM ALPHA
  • 5
    22-74036 FITTING, Grease
    5.7L/LX ALPHA/5.7L BRAVO/ AND 350 MAGNUM ALPHA
    FITTING, Grease
    5.7L/LX ALPHA/5.7L BRAVO/ AND 350 MAGNUM ALPHA
  • 6
    18644 BUMPER, Rubber
    5.7L/LX ALPHA/5.7L BRAVO/ AND 350 MAGNUM ALPHA
    BUMPER, Rubber
    5.7L/LX ALPHA/5.7L BRAVO/ AND 350 MAGNUM ALPHA
  • 7
    10-14883 SCREW, (.375-16 x 1.12)
    5.7L/LX ALPHA/5.7L BRAVO/ AND 350 MAGNUM ALPHA
    SCREW, (.375-16 x 1.12)
    5.7L/LX ALPHA/5.7L BRAVO/ AND 350 MAGNUM ALPHA
  • 8
    12-13510 WASHER
    5.7L/LX ALPHA/5.7L BRAVO/ AND 350 MAGNUM ALPHA
    WASHER
    5.7L/LX ALPHA/5.7L BRAVO/ AND 350 MAGNUM ALPHA
  • 9
    8M0098795 COUPLER ASSEMBLY, Engine
    5.7LX BRAVO
    COUPLER ASSEMBLY, Engine
    5.7LX BRAVO
  • 10
    22-49099 FITTING
    5.7LX BRAVO
    FITTING
    5.7LX BRAVO
  • 11
    10-14883 SCREW, (.375-16 x 1.12)
    5.7LX BRAVO
    SCREW, (.375-16 x 1.12)
    5.7LX BRAVO
  • 12
    12-20572 WASHER, (.390 x .750 x .093)
    5.7LX BRAVO
    WASHER, (.390 x .750 x .093)
    5.7LX BRAVO
  • 13
    10-845757 SCREW, (.437-20 x 1.00)
    SCREW, (.437-20 x 1.00)
  • 14
    429-9521T CRANKSHAFT
    CRANKSHAFT
  • 15
    28-34466 KEY
    KEY
