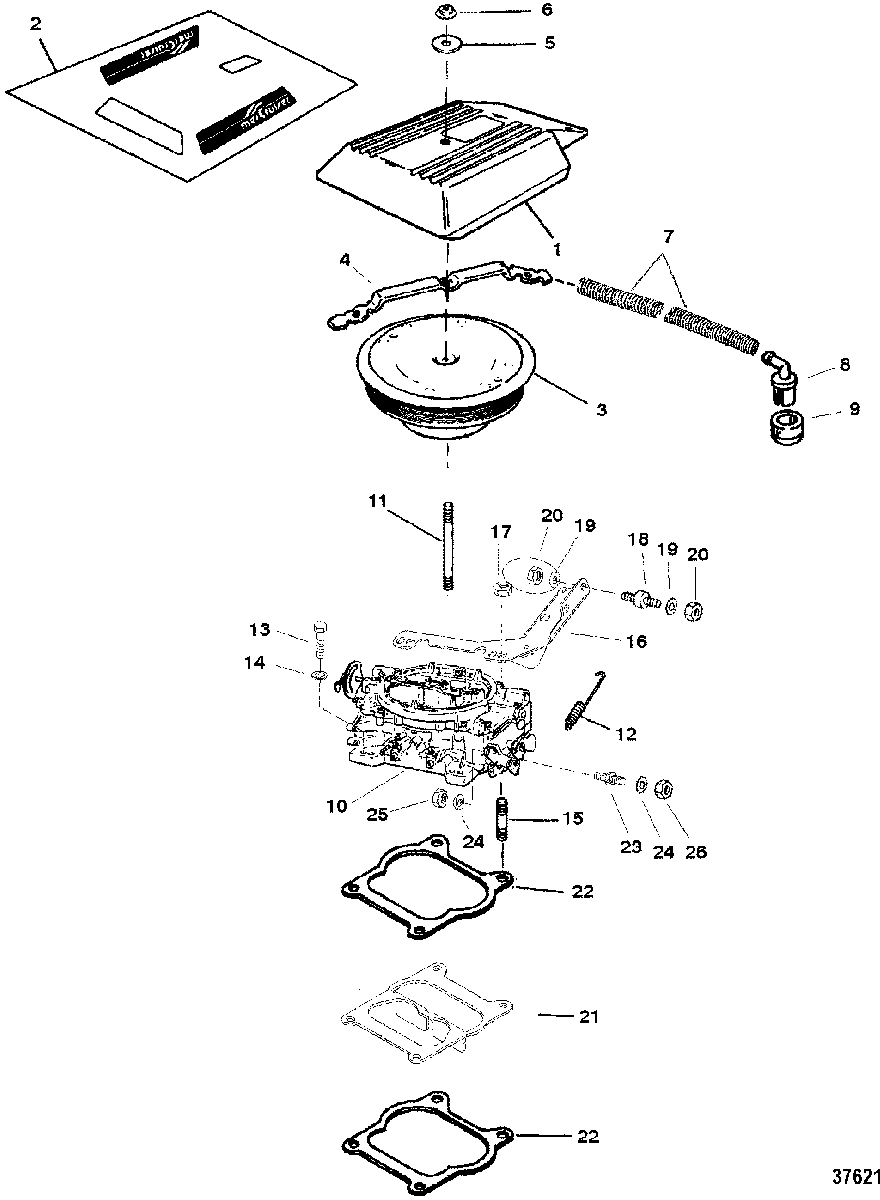

CARBURETOR/THROTTLE LINKAGE(4 BARREL) для Mercruiser - 350 MAG. ALPHA (4 BBL.) GM 350 V-8 1997 0K001527 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    18484A3 COVER
    COVER
  • 2
    37-812776A33 DECAL SET
    5.7LX ALPHA/BRAVO
    DECAL SET
    5.7LX ALPHA/BRAVO
  • 2
    37-812776A45 DECAL SET
    350 MAGNUM ALPHA
    DECAL SET
    350 MAGNUM ALPHA
  • 3
    805298A1 FLAME ARRESTOR
    FLAME ARRESTOR
  • 4
    805314 RETAINER, Breather Hose
    RETAINER, Breather Hose
  • 5
    12-86400 WASHER
    WASHER
  • 6
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 7
    32-8M0086022 HOSE, Breather
    HOSE, Breather
  • 8
    97850T ELBOW, 90 Degree, Breather
    ELBOW, 90 Degree, Breather
  • 9
    23-8M0071559 GROMMET
    GROMMET
  • 10
    3310-807262R02 CARBURETOR
    (SEE "CARBURATOR (WEBER) FOR BREAKDOWN)
    CARBURETOR
    (SEE "CARBURATOR (WEBER) FOR BREAKDOWN)
  • 10
    3310-808012A1 CARBURETOR ASSEMBLY
    SWISS EMISSIONS (BSO1 AND SAV1)
    CARBURETOR ASSEMBLY
    SWISS EMISSIONS (BSO1 AND SAV1)
  • 11
    16-805296 STUD, (4.50 Inch)
    STUD, (4.50 Inch)
  • 12
    24-897454 SPRING
    SPRING
  • 13
    10-74824 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 14
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 15
    16-8M0113177 STUD, (.312 x 1.500)
    STUD, (.312 x 1.500)
  • 16
    805359T BRACKET
    BRACKET
  • 17
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 18
    16-818192 STUD
    STUD
  • 19
    12-24664 WASHER, (M4 x 20)
    WASHER, (M4 x 20)
  • 20
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 21
    807228A1 SPACER
    SPACER
  • 22
    27-524572 GASKET
    GASKET
  • 23
    16-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable Anchor
    STUD, (.250-28 x 2.00), Throttle Cable Anchor
  • 24
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 25
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 26
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • -
    27-806871A96 GASKET SET, Overhaul
    GASKET SET, Overhaul
