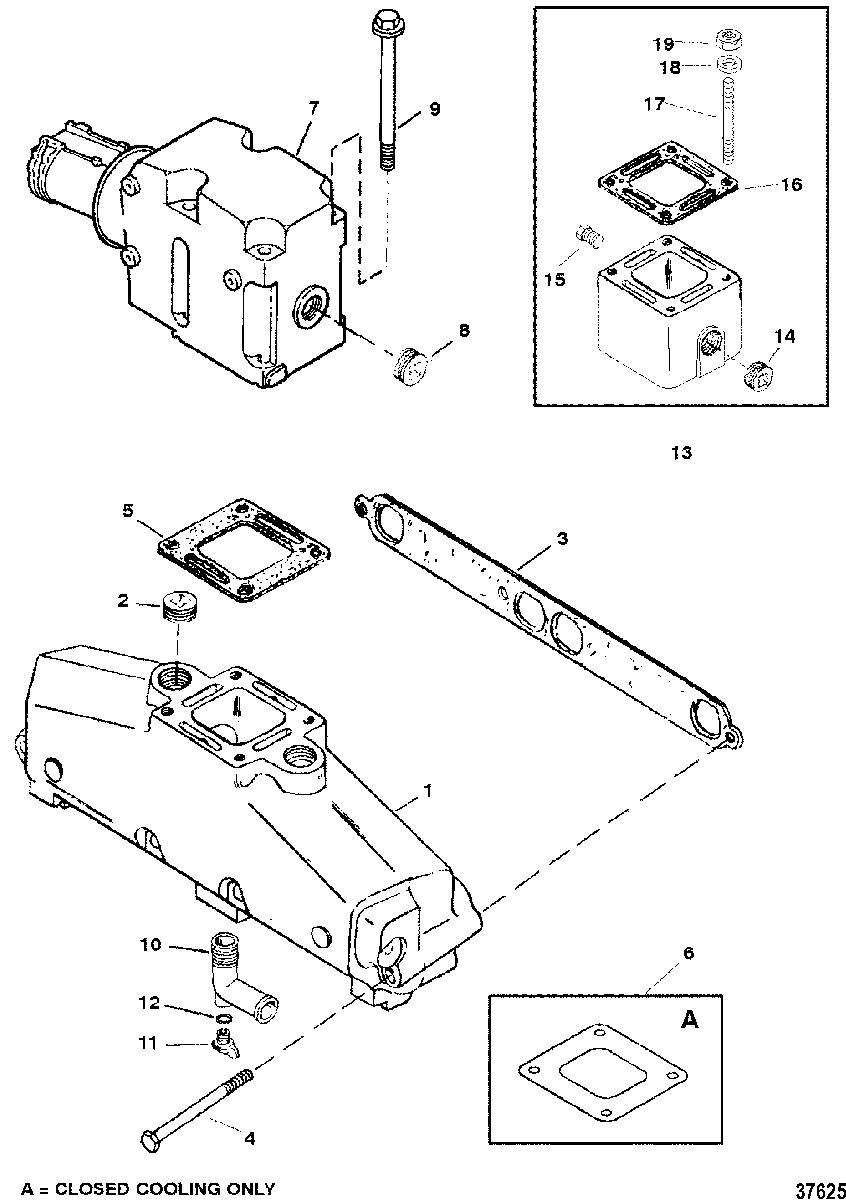

EXHAUST MANIFOLD AND CAST IRON EXHAUST ELBOW для Mercruiser - 350 MAG. ALPHA (4 BBL.) GM 350 V-8 1997 0K001527 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    860246A15 MANIFOLD ASSEMBLY, Exhaust
    MANIFOLD ASSEMBLY, Exhaust
  • 2
    22-416223 PLUG, (3/4-14)
    PLUG, (3/4-14)
  • 3
    27-33395 GASKET
    GASKET
  • 4
    10-53728 SCREW, (.375-16 x 4.75)
    SCREW, (.375-16 x 4.75)
  • 5
    27-863724 GASKET
    STANDARD COOLING
    GASKET
    STANDARD COOLING
  • 6
    27-8637251 GASKET
    CLOSED COOLING
    GASKET
    CLOSED COOLING
  • 7
    807988A03 ELBOW ASSEMBLY, Exhaust (7 DEG.)
    ELBOW ASSEMBLY, Exhaust (7 DEG.)
  • 7
    807988A03 ELBOW ASSEMBLY, Exhaust
    (PORT) SWISS EMISSIONS
    ELBOW ASSEMBLY, Exhaust
    (PORT) SWISS EMISSIONS
  • 7
    807988A03 ELBOW ASSEMBLY, Exhaust
    (STARBOARD.) (BSO1 AND SAV1) SWISS EMISSIONS
    ELBOW ASSEMBLY, Exhaust
    (STARBOARD.) (BSO1 AND SAV1) SWISS EMISSIONS
  • 8
    22-416223 PLUG, (3/4-14)
    PLUG, (3/4-14)
  • 9
    10-43749 SCREW, (.375-16 x 5.750)
    SCREW, (.375-16 x 5.750)
  • 9
    10-43749 SCREW, (.375-16 x 5.750)
    SWISS EMISSIONS
    SCREW, (.375-16 x 5.750)
    SWISS EMISSIONS
  • 9
    10-44387 SCREW, (.376-16 x 6.750)
    (BSO1 AND SAV1) SWISS EMISSIONS
    SCREW, (.376-16 x 6.750)
    (BSO1 AND SAV1) SWISS EMISSIONS
  • 9
    10-843504 SCREW, (.380-16 x 1.500) Stainless Steel
    SWISS EMISSIONS
    SCREW, (.380-16 x 1.500) Stainless Steel
    SWISS EMISSIONS
  • 10
    22-862210A01 ELBOW KIT, Drain
    ELBOW KIT, Drain
  • 11
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 12
    25-32509 QUAD RING
    QUAD RING
  • 13
    93320A13 RISER KIT, Exhaust Elbow (3 In.)
    (3 IN.)
    RISER KIT, Exhaust Elbow (3 In.)
    (3 IN.)
  • 13
    93322A12 RISER KIT, Exhaust Elbow (6 In.)
    (6 IN.)
    RISER KIT, Exhaust Elbow (6 In.)
    (6 IN.)
  • 14
    22-416223 PLUG, (3/4-14)
    PLUG, (3/4-14)
  • 15
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • 16
    27-863726 GASKET
    GASKET
  • 17
    16-8M0022137 STUD, (.375 x 9.56)
    USE WITH 3 IN. RISER
    STUD, (.375 x 9.56)
    USE WITH 3 IN. RISER
  • 17
    10-865982005 SCREW, (.375-16 x 1.00)
    USE WITH 6 IN. RISER
    SCREW, (.375-16 x 1.00)
    USE WITH 6 IN. RISER
  • 18
    12-46132 WASHER
    WASHER
  • 19
    11-46335 NUT, (.375-24)
    NUT, (.375-24)
  • -
    27-806871A96 GASKET SET, Overhaul
    GASKET SET, Overhaul
