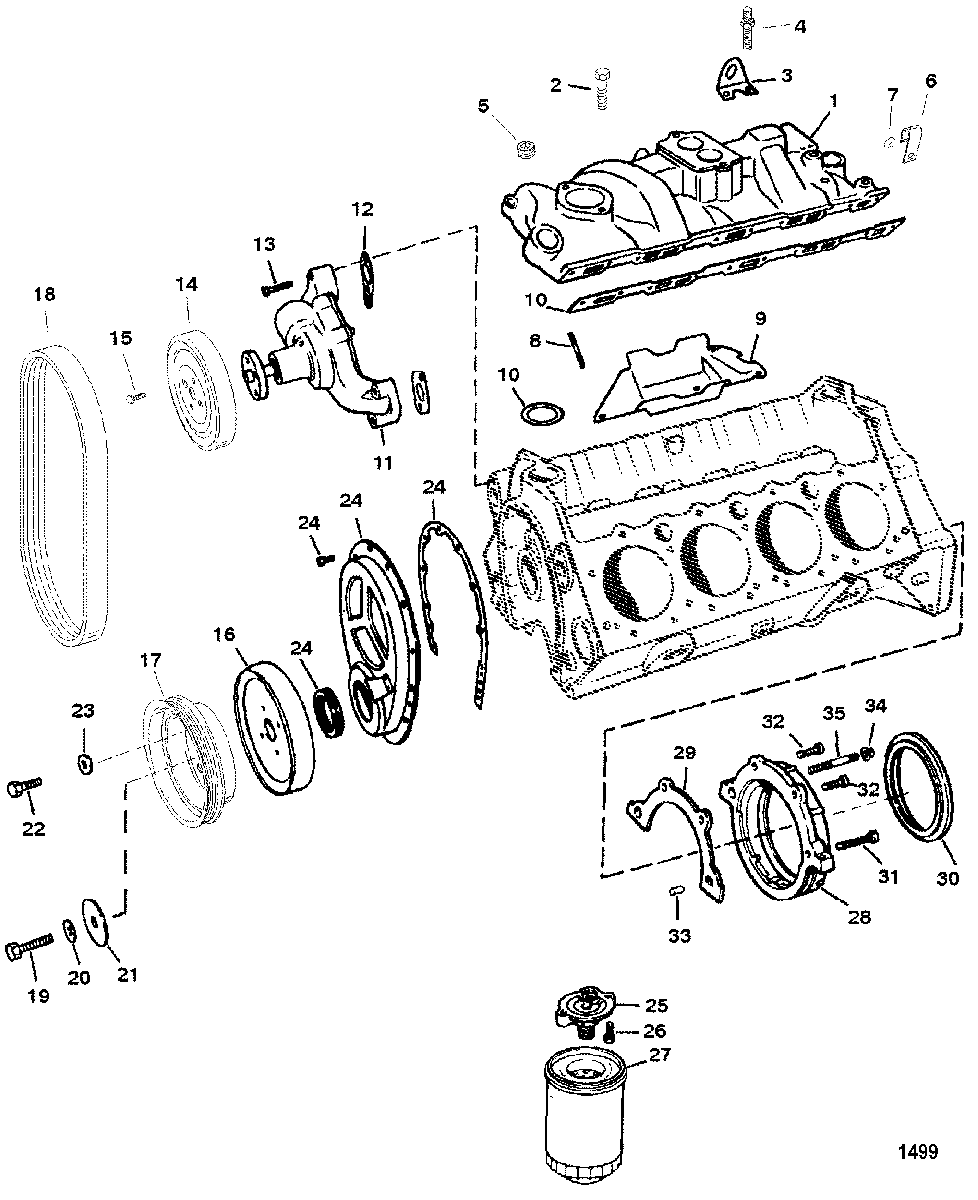

INTAKE MANIFOLD AND FRONT COVER для Mercruiser - 350 MAG. ALPHA (4 BBL.) GM 350 V-8 1997 0K001527 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    17619 MANIFOLD, Intake
    (2 BBL.)
    MANIFOLD, Intake
    (2 BBL.)
  • 1
    17620 MANIFOLD, Intake
    (4 BBL. - HI-RISE)
    MANIFOLD, Intake
    (4 BBL. - HI-RISE)
  • 2
    10-11976 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 2
    10-852939 BOLT (3/8-16 X 1-1/2 IN.)
    BOLT (3/8-16 X 1-1/2 IN.)
  • 3
    54-47512 LIFTING EYE
    LIFTING EYE
  • 4
    16-806250 STUD
    STUD
  • 5
    22-12524 PLUG, (.375)
    PLUG, (.375)
  • 6
    54-73668 J-CLIP
    J-CLIP
  • 7
    12-46132 WASHER
    WASHER
  • 8
    NSS NOT SOLD SEPARATE, STUD (GM#10229247)
    NOT SOLD SEPARATE, STUD (GM#10229247)
  • 9
    72647 GUARD
    GUARD
  • 10
    27-17145 GASKET SET
    (Use RTV Silicone Sealant for end gasket - See Service Manual)
    GASKET SET
    (Use RTV Silicone Sealant for end gasket - See Service Manual)
  • 11
    46-8M0113734 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 12
    27-34897 GASKET
    GASKET
  • 13
    10-32132 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 13
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 13
    16-8M0076418 STUD, (.312-24/.375-16 x 2.5625)
    STUD, (.312-24/.375-16 x 2.5625)
  • 14
    807729T PULLEY
    PULLEY
  • 15
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 16
    809892T BALANCER, Harmonic
    BALANCER, Harmonic
  • 17
    807730T PULLEY
    PULLEY
  • 18
    57-861758A1 BELT, Serpentine
    ALPHA
    BELT, Serpentine
    ALPHA
  • 18
    57-861757A1 BELT, Serpentine
    BRAVO
    BELT, Serpentine
    BRAVO
  • 19
    10-8M2021674 SCREW, (.437-20 x 2.50)
    SCREW, (.437-20 x 2.50)
  • 20
    13-39131 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 21
    12-35332001 WASHER
    WASHER
  • 22
    10-34352 SCREW, (.375-24 x .875)
    SCREW, (.375-24 x .875)
  • 23
    12-34714 WASHER
    WASHER
  • 24
    835005 COVER ASSEMBLY, Timing
    SCREWS,GROMMETS,OIL SEAL, AND GASKET ARE NOT SOLD SEPARATELY.
    COVER ASSEMBLY, Timing
    SCREWS,GROMMETS,OIL SEAL, AND GASKET ARE NOT SOLD SEPARATELY.
  • 25
    71920 VALVE ASSEMBLY, Filter
    W/O REMOTE OIL FILTER
    VALVE ASSEMBLY, Filter
    W/O REMOTE OIL FILTER
  • 26
    10-54786 SCREW, (.312-18 x 1.250)
    W/O REMOTE OIL FILTER
    SCREW, (.312-18 x 1.250)
    W/O REMOTE OIL FILTER
  • 27
    35-866340Q03 FILTER, Oil
    W/O REMOTE OIL FILTER
    FILTER, Oil
    W/O REMOTE OIL FILTER
  • 28
    852940 HOUSING ASSEMBLY, With Studs, Oil Seal (REAR)
    HOUSING ASSEMBLY, With Studs, Oil Seal (REAR)
  • 29
    27-881715 GASKET
    GASKET
  • 30
    26-852941 SEAL, Oil (REAR)
    SEAL, Oil (REAR)
  • 31
    10-8M0064241 BOLT, (.250-20 x 1.750)
    BOLT, (.250-20 x 1.750)
  • 32
    10-14242 BOLT, (.250-20 x .875)
    BOLT, (.250-20 x .875)
  • 33
    17-14263 PIN, Dowel
    PIN, Dowel
  • 34
    11-8M0098315 NUT, (.250-20)
    NUT, (.250-20)
  • 35
    16-14827 STUD, (.250-20 x 2.180)
    STUD, (.250-20 x 2.180)
  • -
    27-806871A96 GASKET SET, Overhaul
    GASKET SET, Overhaul
