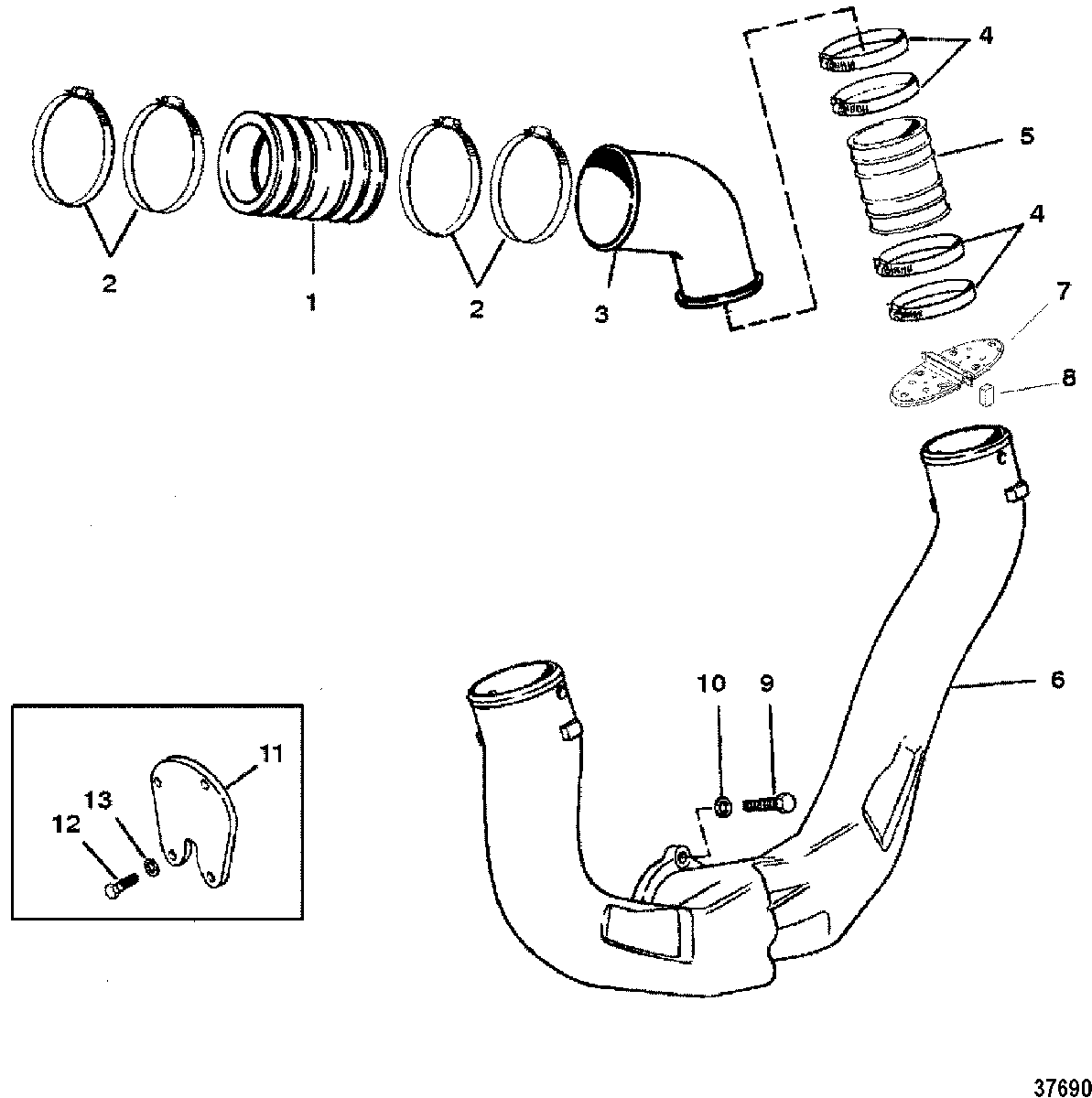

EXHAUST SYSTEM для Mercruiser - 350 MAG. ALPHA (4 BBL.) GM 350 V-8 1997 0K001527 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    32-44348001 TUBE
    THRU PROP EXHAUST
    TUBE
    THRU PROP EXHAUST
  • 2
    54-815504372 CLAMP, Worm Gear
    THRU PROP EXHAUST
    CLAMP, Worm Gear
    THRU PROP EXHAUST
  • 3
    11086T ELBOW
    (PORT) THRU PROP EXHAUST
    ELBOW
    (PORT) THRU PROP EXHAUST
  • 3
    14343T ELBOW
    (STARBOARD) THRU PROP EXHAUST
    ELBOW
    (STARBOARD) THRU PROP EXHAUST
  • 4
    54-815504372 CLAMP, Worm Gear
    THRU PROP EXHAUST
    CLAMP, Worm Gear
    THRU PROP EXHAUST
  • 5
    32-14358001 TUBE
    THRU PROP EXHAUST
    TUBE
    THRU PROP EXHAUST
  • 6
    8M0115149 PIPE
    THRU PROP EXHAUST
    PIPE
    THRU PROP EXHAUST
  • 7
    807166A1 SHUTTER ASSEMBLY, Water
    THRU PROP EXHAUST
    SHUTTER ASSEMBLY, Water
    THRU PROP EXHAUST
  • 8
    25-807167 GROMMET
    THRU PROP EXHAUST
    GROMMET
    THRU PROP EXHAUST
  • 9
    10-8M0113174 SCREW, (.375-16 x 1.25)
    THRU PROP EXHAUST
    SCREW, (.375-16 x 1.25)
    THRU PROP EXHAUST
  • 10
    13-41471 LOCKWASHER, (.375)
    THRU PROP EXHAUST
    LOCKWASHER, (.375)
    THRU PROP EXHAUST
  • 11
    861776A2 PLATE
    THRU TRANSOM EXHAUST
    PLATE
    THRU TRANSOM EXHAUST
  • 12
    10-8M0113180 SCREW, (.375-16 x 1.00)
    THRU TRANSOM EXHAUST
    SCREW, (.375-16 x 1.00)
    THRU TRANSOM EXHAUST
  • 13
    13-41471 LOCKWASHER, (.375)
    THRU TRANSOM EXHAUST
    LOCKWASHER, (.375)
    THRU TRANSOM EXHAUST
