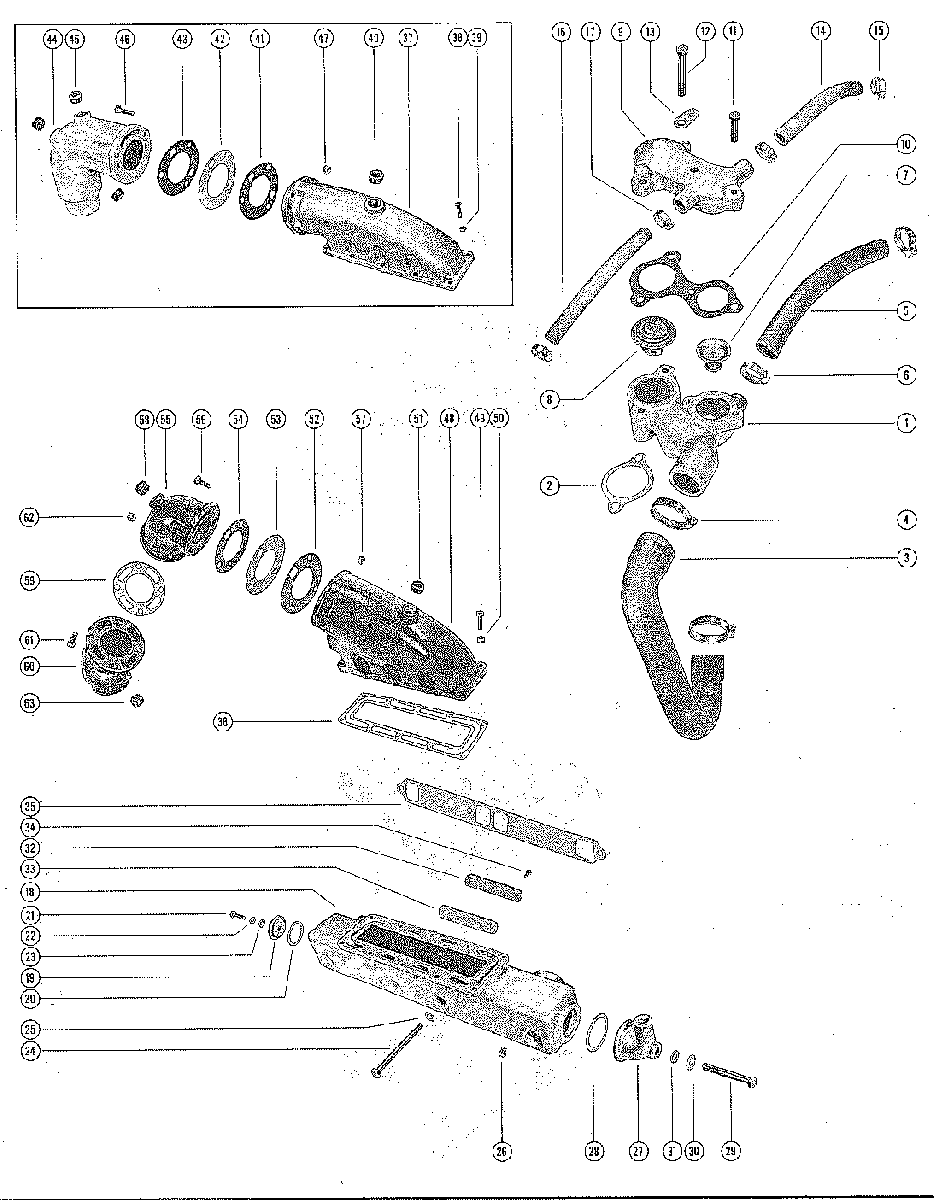

WATER METERING HOUSINGS AND EXHAUST MANIFOLD для Mercruiser - 190 GM 283 V-8 1963-1964 1564539 THRU 1730903

  • №
    Артикул
    Название
  • 1
    32904 HOUSING, WATER METERING (LOWER)
    HOUSING, WATER METERING (LOWER)
  • 2
    27-530451 GASKET, LOWER WATER METERING HOUSING
    GASKET, LOWER WATER METERING HOUSING
  • 3
    32-33189 HOSE, LOWER WATER METERING HOUSING TO WATER PUMP
    HOSE, LOWER WATER METERING HOUSING TO WATER PUMP
  • 4
    54-815504228 CLAMP, HOSE TO LOWER WATER METERING HOUSING AND WATER PUMP
    CLAMP, HOSE TO LOWER WATER METERING HOUSING AND WATER PUMP
  • 5
    32-8M0062614 HOSE, METERING HOUSING TO BEARING HOUSING (15 3/16")
    SERIAL 00000000-01666599
    HOSE, METERING HOUSING TO BEARING HOUSING (15 3/16")
    SERIAL 00000000-01666599
  • 5
    32-8M0062614 HOSE, METERING HOUSING TO BEARING HOUSING HOUSING (16")
    SERIAL 01666600-09999999
    HOSE, METERING HOUSING TO BEARING HOUSING HOUSING (16")
    SERIAL 01666600-09999999
  • 6
    54-815504220 CLAMP, HOSE TO LOWER METERING HOUSING AND BEARING HOUSING
    CLAMP, HOSE TO LOWER METERING HOUSING AND BEARING HOUSING
  • 7
    33196 PRESSURE VALVE ASSEMBLY, LOWER WATER METERING HOUSING
    PRESSURE VALVE ASSEMBLY, LOWER WATER METERING HOUSING
  • 8
    8M0089715 THERMOSTAT
    THERMOSTAT
  • 8
    8M0089715 THERMOSTAT
    THERMOSTAT
  • 9
    32905 HOUSING, WATER METERING (UPPER)
    HOUSING, WATER METERING (UPPER)
  • 10
    27-33188 GASKET, UPPER WATER METERING HOUSING
    GASKET, UPPER WATER METERING HOUSING
  • 11
    10-22698 SCREW, WATER METERING HOUSINGS TO INTAKE MANIFOLD (1 3/4")
    SCREW, WATER METERING HOUSINGS TO INTAKE MANIFOLD (1 3/4")
  • 12
    10-68299 SCREW METERING HOUSINGS TO INTAKE MANIFOLD (3")
    SCREW METERING HOUSINGS TO INTAKE MANIFOLD (3")
  • 13
    32786 TAB, WATER METERING HOUSING SCREW - THROTTLE RETURN SPRING
    TAB, WATER METERING HOUSING SCREW - THROTTLE RETURN SPRING
  • 14
    32-39252 HOSE, UPPER WATER METERING HOUSING TO INLET HOUSING (12 5/8")
    HOSE, UPPER WATER METERING HOUSING TO INLET HOUSING (12 5/8")
  • 15
    54-815504220 CLAMP,HOSE TO UPPER WATER METERING HOUSING AND INLET HOUSING
    CLAMP,HOSE TO UPPER WATER METERING HOUSING AND INLET HOUSING
  • 16
    32-39252 HOSE, UPPER WATER METERING HOUSING TO INLET HOUSING (13 1/4")
    HOSE, UPPER WATER METERING HOUSING TO INLET HOUSING (13 1/4")
  • 17
    54-815504220 CLAMP,HOSE TO UPPER WATER METERING HOUSING AND INLET HOUSING
    CLAMP,HOSE TO UPPER WATER METERING HOUSING AND INLET HOUSING
  • 18
    37297 BODY, EXHAUST MANIFOLD (PORT AND STARBOARD)
    BODY, EXHAUST MANIFOLD (PORT AND STARBOARD)
  • 19
    35298A1 END CAP ASSEMBLY, EXHAUST MANIFOLD BODY
    END CAP ASSEMBLY, EXHAUST MANIFOLD BODY
  • 20
    27-33180 GASKET, END CAP
    GASKET, END CAP
  • 21
    10-34354 SCREW, END CAP TO EXHAUST MANIFOLD BODY (1 1/2")
    SCREW, END CAP TO EXHAUST MANIFOLD BODY (1 1/2")
  • 22
    12-20553 WASHER, END CAP SCREW
    WASHER, END CAP SCREW
  • 23
    12-33181 WASHER, COPPER - END CAP SCREEW
    WASHER, COPPER - END CAP SCREEW
  • 24
    10-60410 SCREW, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (4 1/4")
    SCREW, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (4 1/4")
  • 25
    12-20553 WASHER, EXHAUST MAINFOLD BODY SCREW
    WASHER, EXHAUST MAINFOLD BODY SCREW
  • 26
    22-328022 PLUG, PIPE - EXHAUST MANIFOLD BODY
    PLUG, PIPE - EXHAUST MANIFOLD BODY
  • 27
    32891 HOUSING WATER INLET - EXHAUST MANIFOLD BODY 2
    HOUSING WATER INLET - EXHAUST MANIFOLD BODY 2
  • 28
    27-33180 GASKET, WATER INLET HOUSING
    GASKET, WATER INLET HOUSING
  • 29
    10-68299 SCREW, WATER INLET HOUSING TO EXHAUST MANIFOLD BODY (3")
    SCREW, WATER INLET HOUSING TO EXHAUST MANIFOLD BODY (3")
  • 30
    12-20553 WASHER, WATER INLET HOUSING SCREW
    WASHER, WATER INLET HOUSING SCREW
  • 31
    12-33181 WASHER, COPPER - WATER INLET HOUSING SCREW
    WASHER, COPPER - WATER INLET HOUSING SCREW
  • 32
    33183 COVER, CHOKE OVEN - STARBOARD EXHAUST MANIFOLD BODY
    COVER, CHOKE OVEN - STARBOARD EXHAUST MANIFOLD BODY
  • 33
    27-33184 GASKET, CHOKE OVEN COVER
    GASKET, CHOKE OVEN COVER
  • 34
    10-22022 SCREW, CHOKE OVEN COVER TO STARBOARD EXHAUST MANIFOLD BODY
    SCREW, CHOKE OVEN COVER TO STARBOARD EXHAUST MANIFOLD BODY
  • 35
    27-33395 GASKET, EXHAUST MANIFOLD BODY TO CYLINDER HEAD
    GASKET, EXHAUST MANIFOLD BODY TO CYLINDER HEAD
  • 36
    27-37296 GASKET, EXHAUST MANIFOLD ELBOW
    GASKET, EXHAUST MANIFOLD ELBOW
  • 37
    37298A2 ELBOW, EXHAUST MANIFOLD
    ELBOW, EXHAUST MANIFOLD
  • 38
    10-35156 SCREW, EXHAUST ELBOW TO EXHAUST MANIFOLD BODY (1 1/4")
    SCREW, EXHAUST ELBOW TO EXHAUST MANIFOLD BODY (1 1/4")
  • 39
    11-24652 NUT, EXHAUST ELBOW SCREW
    NUT, EXHAUST ELBOW SCREW
  • 40
    22-416223 PLUG, PIPE - EXHAUST MANIFOLD ELBOW
    PLUG, PIPE - EXHAUST MANIFOLD ELBOW
  • 41
    27-33173 GASKET, EXHAUST MANIFOLD ELBOW TO FACE PLATE
    GASKET, EXHAUST MANIFOLD ELBOW TO FACE PLATE
  • 42
    32896 PLATE, FACE - EXHAUST MANIFOLD TO EXHAUST PIPE ELBOW
    PLATE, FACE - EXHAUST MANIFOLD TO EXHAUST PIPE ELBOW
  • 43
    27-33173 GASKET, EXHAUST PIPE ELBOW TO FACE PLATE
    GASKET, EXHAUST PIPE ELBOW TO FACE PLATE
  • 44
    37298A2 ELBOW, EXHAUST PIPE
    ELBOW, EXHAUST PIPE
  • 45
    22-416223 PLUG, PIPE - EXHAUST PIPE ELBOW
    PLUG, PIPE - EXHAUST PIPE ELBOW
  • 52
    27-35671 GASKET, EXHAUST MANIFOLD ELBOW TO FACE PLATE
    GASKET, EXHAUST MANIFOLD ELBOW TO FACE PLATE
  • 53
    35672 PLATE, FACE - EXHAUST MANIFOLD ELBOW TO UPPER EXHAUST ELBOW
    PLATE, FACE - EXHAUST MANIFOLD ELBOW TO UPPER EXHAUST ELBOW
  • 54
    27-35671 GASKET, UPPER EXHAUST ELBOW TO FACE PLATE
    GASKET, UPPER EXHAUST ELBOW TO FACE PLATE
  • 55
    35674 ELBOW, EXHAUST - UPPER
    ELBOW, EXHAUST - UPPER
  • 56
    10-21951 SCREW, UPPER EXHAUST ELBOW TO EXHAUST MANIFOLD ELBOW
    SCREW, UPPER EXHAUST ELBOW TO EXHAUST MANIFOLD ELBOW
  • 57
    11-25269 NUT, UPPER EXHAUST ELBOW SCREW
    NUT, UPPER EXHAUST ELBOW SCREW
  • 58
    22-416223 PLUG, PIPE - UPPER EXHAUST ELBOW
    PLUG, PIPE - UPPER EXHAUST ELBOW
  • 59
    27-35673 GASKET, UPPER EXHAUST ELBOW TO LOWER EXHAUST ELBOW
    GASKET, UPPER EXHAUST ELBOW TO LOWER EXHAUST ELBOW
  • 60
    35675 ELBOW, EXHAUST - LOWER
    ELBOW, EXHAUST - LOWER
  • 61
    10-21951 SCREW, UPPER EXHAUST ELBOW TO LOWER EXHAUST ELBOW (1 1/4")
    SCREW, UPPER EXHAUST ELBOW TO LOWER EXHAUST ELBOW (1 1/4")
  • 62
    11-25269 NUT, LOWER EXHAUST ELBOW SCREW
    NUT, LOWER EXHAUST ELBOW SCREW
  • 63
    22-416223 PLUG, PIPE - LOWER EXHAUST ELBOW
    PLUG, PIPE - LOWER EXHAUST ELBOW
