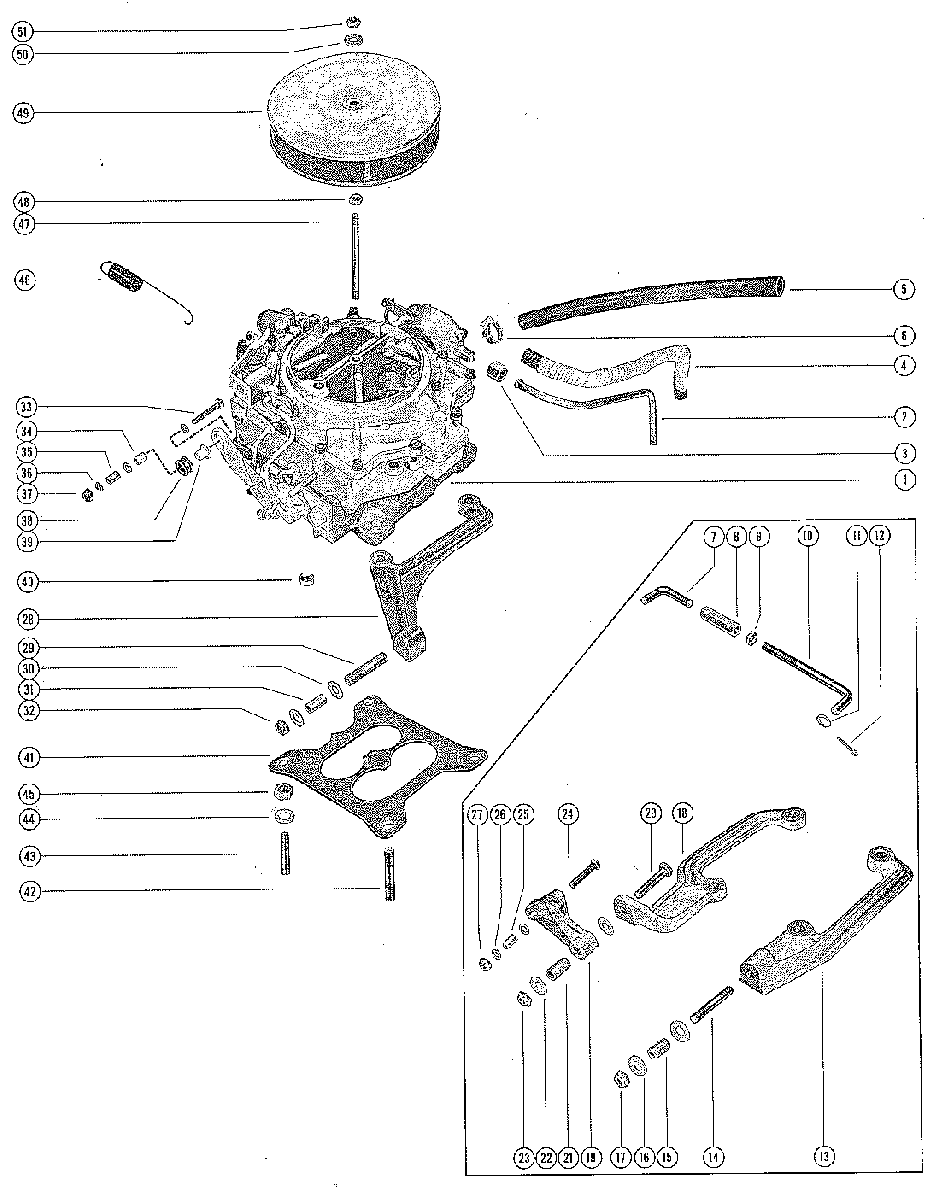

CARBURETOR LINKAGE для Mercruiser - 190 GM 283 V-8 1963-1964 1564539 THRU 1730903

  • №
    Артикул
    Название
  • 1
    1339-2249 CARBURETOR ASSEMBLY(SEE F8 & F10 BREAKDOWN)
    CARBURETOR ASSEMBLY(SEE F8 & F10 BREAKDOWN)
  • 2
    32-33235 PIPE, CHOKE - CARBURETOR
    PIPE, CHOKE - CARBURETOR
  • 3
    11-21310 NUT, CHOKE PIPE TO CARBURETOR
    NUT, CHOKE PIPE TO CARBURETOR
  • 4
    33229 COVERING, CHOKE PIPE
    COVERING, CHOKE PIPE
  • 5
    32-34423 HOSE, VENT - CARBURETOR TO HOSE CONNECTOR
    HOSE, VENT - CARBURETOR TO HOSE CONNECTOR
  • 6
    54-815504206 CLAMP, VENT HOSE TO CARBURETOR AND CONNECTOR
    CLAMP, VENT HOSE TO CARBURETOR AND CONNECTOR
  • 7
    33394 LINK ROD, THROTTLE LEVER
    LINK ROD, THROTTLE LEVER
  • 8
    33393 SLEEVE, ADJUSTING - LINK ROD
    SLEEVE, ADJUSTING - LINK ROD
  • 9
    11-25168 NUT, JAM - LINK ROD ADJUSTING
    NUT, JAM - LINK ROD ADJUSTING
  • 10
    33225 KINK ROD, CARBURETOR
    KINK ROD, CARBURETOR
  • 11
    12-20583 WASHER, CARBURETOR LINK ROD
    WASHER, CARBURETOR LINK ROD
  • 12
    27908 COTTER PIN, CARBURETOR LINK ROD TO CARBURETOR
    COTTER PIN, CARBURETOR LINK ROD TO CARBURETOR
  • 13
    35517A1 BRACKET, CARBURETOR MOUNTING (REAR)
    BRACKET, CARBURETOR MOUNTING (REAR)
  • 14
    16-728091 STUD, THROTTLE CABLE TO REAR CARBURETOR BRACKET
    STUD, THROTTLE CABLE TO REAR CARBURETOR BRACKET
  • 15
    23-31866 SPACER, THROTTLE CABLE STUD
    SPACER, THROTTLE CABLE STUD
  • 16
    12-69056 WASHER, THROTTLE CABLE STUD
    WASHER, THROTTLE CABLE STUD
  • 17
    11-826709109 NUT, THROTTLE CABLE TO REAR CARBURETOR BRACKET
    NUT, THROTTLE CABLE TO REAR CARBURETOR BRACKET
  • 18
    35517A1 BRACKET, CARBURETOR MOUNTING (FRONT)
    BRACKET, CARBURETOR MOUNTING (FRONT)
  • 19
    35517A1 LEVER, THROTTLE - FRONT CARBURETOR MOUNTING BRACKET
    LEVER, THROTTLE - FRONT CARBURETOR MOUNTING BRACKET
  • 20
    10-56500 SCREW, THROTTLE LEVER TO FRONT CARBURETOR BRACKET
    SCREW, THROTTLE LEVER TO FRONT CARBURETOR BRACKET
  • 21
    23-32796 BUSHING, THROTTLE SCREW
    BUSHING, THROTTLE SCREW
  • 22
    12-69056 WASHER, THROTTLE LEVER SCREW
    WASHER, THROTTLE LEVER SCREW
  • 23
    11-826709109 NUT, THROTTLE LEVER TO FRONT CARBURETOR BRACKET
    NUT, THROTTLE LEVER TO FRONT CARBURETOR BRACKET
  • 24
    10-34994 SCREW, THROTTLE CABLE TO THROTTLE LEVER (1")
    SCREW, THROTTLE CABLE TO THROTTLE LEVER (1")
  • 25
    23-32818 BUSHING, THROTTLE CABLE SCREW
    BUSHING, THROTTLE CABLE SCREW
  • 26
    12-847883 WASHER, THROTTLE CABLE SCREW
    WASHER, THROTTLE CABLE SCREW
  • 27
    11-8267086 NUT, THROTTLE CABLE TO THROTTLE LEVER SCREW
    NUT, THROTTLE CABLE TO THROTTLE LEVER SCREW
  • 28
    35517A1 BRACKET, CARBURETOR MOUNTING (REAR)
    BRACKET, CARBURETOR MOUNTING (REAR)
  • 30
    12-69056 WASHER, THROTTLE CABLE STUD
    WASHER, THROTTLE CABLE STUD
  • 31
    23-31866 SPACER, THROTTLE CABLE STUD
    SPACER, THROTTLE CABLE STUD
  • 32
    10-30586 NUT, THROTTLE CABLE TO CARBURETOR BRACKET STUD
    NUT, THROTTLE CABLE TO CARBURETOR BRACKET STUD
  • 33
    10-98509 SCREW, THROTTLE CABLE TO CARBURETOR (1 1/8")
    SCREW, THROTTLE CABLE TO CARBURETOR (1 1/8")
  • 34
    23-32818 BUSHING, THROTTLE LEVER - THROTTLE CABLE SCREW
    BUSHING, THROTTLE LEVER - THROTTLE CABLE SCREW
  • 35
    23-32818 BUSHING, THROTTLE CABLE SCREW
    BUSHING, THROTTLE CABLE SCREW
  • 36
    12-847883 WASHER, THROTTLE CABLE SCREW
    WASHER, THROTTLE CABLE SCREW
  • 37
    11-8267086 NUT, THROTTLE CABLE TO CARBURETOR SCREW
    NUT, THROTTLE CABLE TO CARBURETOR SCREW
  • 38
    25-35039 GROMMET, CARBURETOR LEVER
    GROMMET, CARBURETOR LEVER
  • 39
    23-35040 SLEEVE, CARBURETOR LEVER
    SLEEVE, CARBURETOR LEVER
  • 40
    19-33674 PLUG, EXPANSION - INTAKE MANIFOLD
    PLUG, EXPANSION - INTAKE MANIFOLD
  • 41
    27-34172 GASKET, CARBURETOR
    GASKET, CARBURETOR
  • 42
    16-23166 STUD, CARBURETOR - INTAKE MANIFOLD (1 7/8")
    STUD, CARBURETOR - INTAKE MANIFOLD (1 7/8")
  • 42
    16-23166 STUD, CARBURETOR - INTAKE MANIFOLD (1 7/8")
    STUD, CARBURETOR - INTAKE MANIFOLD (1 7/8")
  • 43
    16-33111 STUD, CARBURETOR - INTAKE MANIFOLD (1 9/16")
    STUD, CARBURETOR - INTAKE MANIFOLD (1 9/16")
  • 44
    12-20084 WASHER, CARBURETOR MOUNTING STUD
    WASHER, CARBURETOR MOUNTING STUD
  • 45
    11-29250 NUT, CARBURETOR MOUNTING STUD
    NUT, CARBURETOR MOUNTING STUD
  • 46
    24-897454 SPRING, THROTTLE RETURN - CARBURETOR
    SPRING, THROTTLE RETURN - CARBURETOR
  • 47
    16-91842 STUD, FLAME ARRESTOR MOUNTING - CARBURETOR
    STUD, FLAME ARRESTOR MOUNTING - CARBURETOR
  • 48
    11-8267139 NUT, FLAME ARRESTOR MOUNTING STUD (BOTTOM)
    NUT, FLAME ARRESTOR MOUNTING STUD (BOTTOM)
  • 49
    33190 FLAME ARRESTOR, CARBURETOR
    FLAME ARRESTOR, CARBURETOR
  • 50
    12-22937 WASHER, FLAME ARRESTOR MOUNTING STUD
    WASHER, FLAME ARRESTOR MOUNTING STUD
  • 51
    11-826709109 NUT, FLAMES ARRESTOR MOUNTING STUD (TOP)
    NUT, FLAMES ARRESTOR MOUNTING STUD (TOP)
