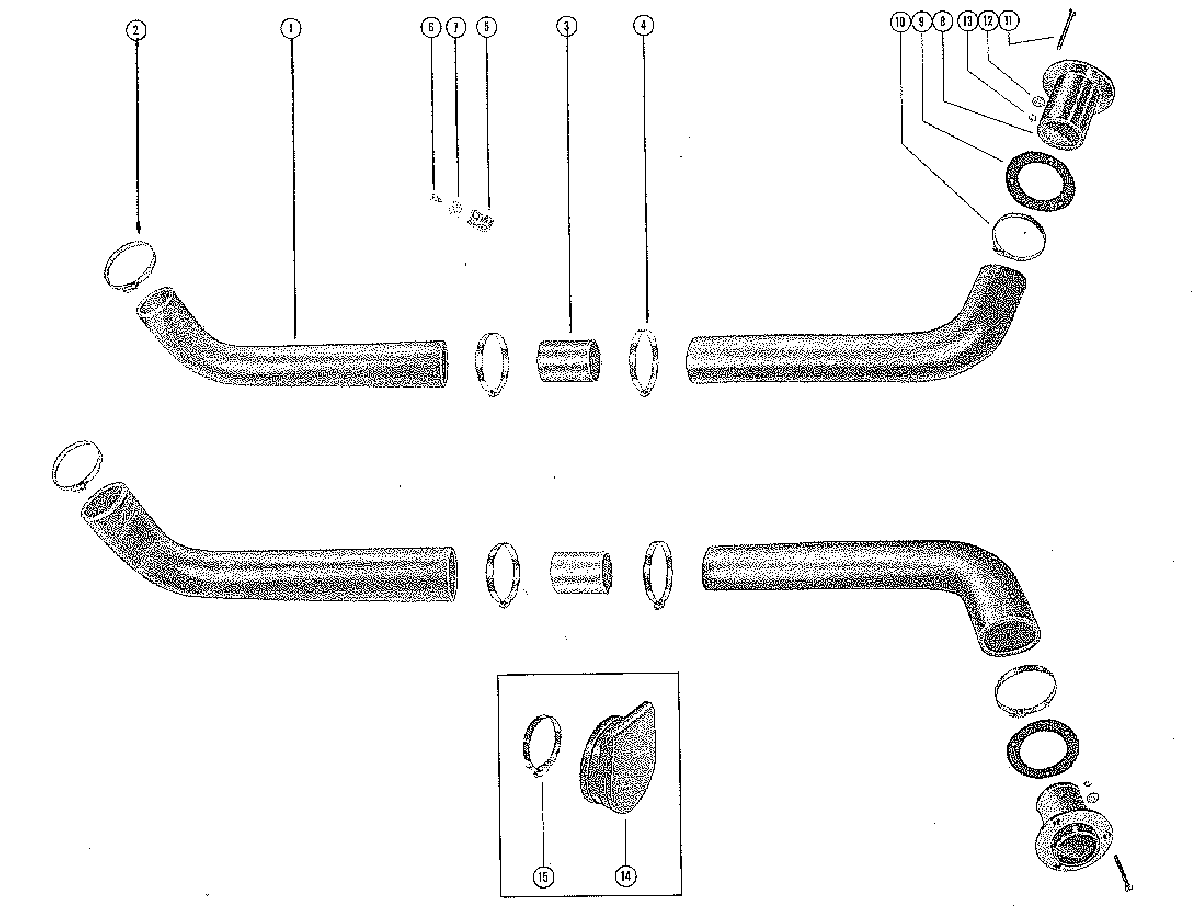

EXHAUST KIT для Mercruiser - 190 GM 283 V-8 1963-1964 1564539 THRU 1730903

  • №
    Артикул
    Название
  • -
    33681A1 EXHAUST KIT
    EXHAUST KIT
  • 1
    32-33645 HOSE EXHAUST-ENGINE EXHAUST PIPE ELBOW TO BOAT
    HOSE EXHAUST-ENGINE EXHAUST PIPE ELBOW TO BOAT
  • 2
    54-815504456 CLAMP, HOSE TO EXHAUST PIPE ELBOW
    CLAMP, HOSE TO EXHAUST PIPE ELBOW
  • 3
    32-33685 TUBE, CONNECTOR-EXHAUST HOSE
    TUBE, CONNECTOR-EXHAUST HOSE
  • 4
    54-815504456 CLAMP, HOSE TO CONNECTOR TUBE
    CLAMP, HOSE TO CONNECTOR TUBE
  • 5
    54-22875 CLIP, WIRING HARNESS TO BOAT
    CLIP, WIRING HARNESS TO BOAT
  • 6
    10-22793 SCREW, WOOD-WIRING HARNESS TO BOAT CLIP
    SCREW, WOOD-WIRING HARNESS TO BOAT CLIP
  • 7
    8M0084613 "D" WASHER, WIRING HARNESS TO BOAT CLIP SCREW
    "D" WASHER, WIRING HARNESS TO BOAT CLIP SCREW
  • 8
    57885A1 FLANGE, EXHAUST HOSE
    FLANGE, EXHAUST HOSE
  • 9
    27-33600 GASKET, EXHAUST HOSE FLANGE
    GASKET, EXHAUST HOSE FLANGE
  • 10
    54-815504456 CLAMP, HOSE TO EXHAUST FLANGE
    CLAMP, HOSE TO EXHAUST FLANGE
  • 11
    10-33684 SCREW, EXHAUST HOSE FLANGE TO BOAT
    SCREW, EXHAUST HOSE FLANGE TO BOAT
  • 12
    12-25908 WASHER, EXHAUST HOSE FLANGE TO BOAT SCREW
    WASHER, EXHAUST HOSE FLANGE TO BOAT SCREW
  • 13
    11-8267089 NUT, EXHAUST HOSE FLANGE TO BOAT SCREW
    NUT, EXHAUST HOSE FLANGE TO BOAT SCREW
  • 14
    34765A2 COVER KIT, EXHAUST FLANGE
    COVER KIT, EXHAUST FLANGE
  • 15
    54-815504456 CLAMP, COVER TO FLANGE
    CLAMP, COVER TO FLANGE
