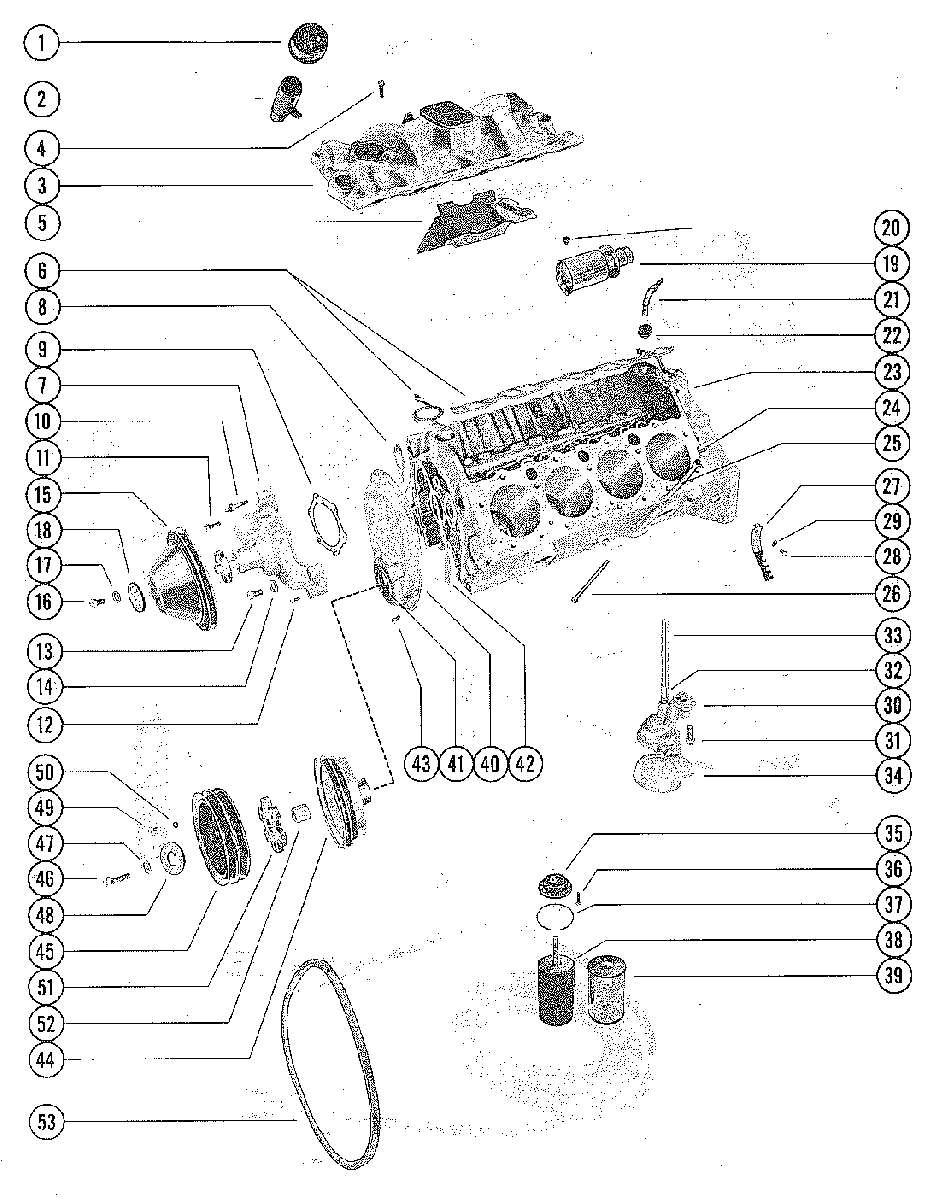

INTAKE MANIFOLD AND OIL PUMP для Mercruiser - 190 GM 283 V-8 1963-1964 1564539 THRU 1730903

  • №
    Артикул
    Название
  • 1
    33224 OIL FILLER CAP ASSEMBLY
    OIL FILLER CAP ASSEMBLY
  • 2
    32-35361 TUBE ASSEMBLY OIL FILLER CAP
    TUBE ASSEMBLY OIL FILLER CAP
  • 3
    35370 INTAKE MANIFOLD
    INTAKE MANIFOLD
  • 4
    10-26487 BOLT,INTAKEMANIFOLD TO CYLINDER BLOCK (1 1/8')
    BOLT,INTAKEMANIFOLD TO CYLINDER BLOCK (1 1/8')
  • 5
    35422 GUARD,INTAKE MANIFOLD
    GUARD,INTAKE MANIFOLD
  • 6
    27-52201 GASKET SET, INTAKE MANIFOLD
    PART OF 27-35754A1 GASKET SET.
    GASKET SET, INTAKE MANIFOLD
    PART OF 27-35754A1 GASKET SET.
  • 7
    46-8M0113734 WATER PUMP ASSEMBLY
    WATER PUMP ASSEMBLY
  • 8
    27-34897 GASKET,WATER PUMP MOUNTING
    GASKET,WATER PUMP MOUNTING
  • -
    10-8M0040582 SCREW,WATER PUMP BACKING PLATE (7/16")
    SCREW,WATER PUMP BACKING PLATE (7/16")
  • 9
    27-35380 GASKET,WATER PUMP BACKING PLATE
    GASKET,WATER PUMP BACKING PLATE
  • 10
    16-8M0076418 STUD,WATER PUMP TO CYLINDER BLOCK
    SERIAL 00000000-01666599
    STUD,WATER PUMP TO CYLINDER BLOCK
    SERIAL 00000000-01666599
  • 11
    10-47688 BOLT,WATER PUMP TO CYLINDER BLOCK (2 3/4")
    SERIAL 00000000-01666599
    BOLT,WATER PUMP TO CYLINDER BLOCK (2 3/4")
    SERIAL 00000000-01666599
  • 12
    10-32132 BOLT,WATER PUMP TO CYLINDER BLOCK (13/4")
    SERIAL 00000000-01666599
    BOLT,WATER PUMP TO CYLINDER BLOCK (13/4")
    SERIAL 00000000-01666599
  • 13
    10-35344 BOLT,WATER PUMP TO CYLINDER BLOCK (1 5/8")
    SERIAL 00000000-01666599
    BOLT,WATER PUMP TO CYLINDER BLOCK (1 5/8")
    SERIAL 00000000-01666599
  • 14
    13-39107 LOCKWASHER, WATER PUMP BOLT
    SERIAL 00000000-01666599
    LOCKWASHER, WATER PUMP BOLT
    SERIAL 00000000-01666599
  • 11
    10-35785 SCREW,WATER PUMP TO FRONT MOUNTING BRACKET ( 31/4")
    SERIAL 01666600-09999999
    SCREW,WATER PUMP TO FRONT MOUNTING BRACKET ( 31/4")
    SERIAL 01666600-09999999
  • 13
    10-35787 SCREW,WATER PUMP TO FRONT MOUNTING BRACKET (21/4")
    SERIAL 01666600-09999999
    SCREW,WATER PUMP TO FRONT MOUNTING BRACKET (21/4")
    SERIAL 01666600-09999999
  • 14
    12-20553 WASHER,WATER PUMPSCREW
    SERIAL 01666600-09999999
    WASHER,WATER PUMPSCREW
    SERIAL 01666600-09999999
  • 15
    33864 aPULLEY, WATER PUMP
    aPULLEY, WATER PUMP
  • 16
    10-35340 SCREW,PULLEY TO WATER PUMP (5/8")
    SCREW,PULLEY TO WATER PUMP (5/8")
  • 16
    10-47277 SCREW, PULLEY AND SUPPORT TO WATER PUMP (3/4")
    SCREW, PULLEY AND SUPPORT TO WATER PUMP (3/4")
  • 17
    13-39107 LOCKWASHER, WATER PUMP PULLEY SCREW
    LOCKWASHER, WATER PUMP PULLEY SCREW
  • 18
    47282 SUPPORT, WATER PUMP PULLEY
    SUPPORT, WATER PUMP PULLEY
  • 19
    35357 VENTILATOR ASEMBLY, CYLINDER BLOCK
    VENTILATOR ASEMBLY, CYLINDER BLOCK
  • 20
    10-8M0040582 SCREW,VENTILATOR TO CYLINDER BLOCK (7/16")
    SCREW,VENTILATOR TO CYLINDER BLOCK (7/16")
  • 21
    37645A2 CONNECTOR, CYLINDER CLOCK VENT HOSE
    CONNECTOR, CYLINDER CLOCK VENT HOSE
  • 22
    37645A2 GROMMET, CYLINDER BLOCK VENTILATOR CONNECTOR
    GROMMET, CYLINDER BLOCK VENTILATOR CONNECTOR
  • 23
    841-2349 CYLINDER BLOCK ASSEMBLY
    SEE PAGE 26 FOR PARTS BREAKDOWN
    CYLINDER BLOCK ASSEMBLY
    SEE PAGE 26 FOR PARTS BREAKDOWN
  • 24
    35350 GAUGE ASSEMBLY, OIL LEVEL (DIP STICK)
    GAUGE ASSEMBLY, OIL LEVEL (DIP STICK)
  • 25
    32-33204 TUBE, OIL LEVEL-UPPER (8 21/32')
    TUBE, OIL LEVEL-UPPER (8 21/32')
  • 26
    32-35351 TUBE,OIL LEVEL -LOWER (8 1/4')
    TUBE,OIL LEVEL -LOWER (8 1/4')
  • 27
    35365 SUPPORT, SPARK PUG LEAD WIRE
    SUPPORT, SPARK PUG LEAD WIRE
  • 28
    10-8M0040582 SCREW, LEAD WIRE SUPPORT TO CYLINDER BLOCK (1/2")
    SCREW, LEAD WIRE SUPPORT TO CYLINDER BLOCK (1/2")
  • 29
    13-35367 LOCKWASHER, LEAD WIRE SUPPORT SCREW
    LOCKWASHER, LEAD WIRE SUPPORT SCREW
  • 30
    17617 OIL PUMP ASSEMBLY
    OIL PUMP ASSEMBLY
  • --
    27-35664 GASKET, OIL PUMP CIVER
    GASKET, OIL PUMP CIVER
  • 31
    10-35353 BOLT, OIL PUMP TO CYLINDER BLOCK 9 2 3/16')
    BOLT, OIL PUMP TO CYLINDER BLOCK 9 2 3/16')
  • 32
    23-36183 RETAINER, OIL PUMP SHAFT
    RETAINER, OIL PUMP SHAFT
  • 33
    36184 SHAFT, OIL PUMP TO DISTRIBUTOR
    SHAFT, OIL PUMP TO DISTRIBUTOR
  • 34
    35354 SCREEN ASSEMBLY, OIL PUMP SUCTION
    SCREEN ASSEMBLY, OIL PUMP SUCTION
  • 35
    33169 FILTER VALVE ASSEMBLY
    FILTER VALVE ASSEMBLY
  • 36
    10-24878 SCREW, FILTER VALVE TOCYLINDER BLOCK (1 1/4")
    SCREW, FILTER VALVE TOCYLINDER BLOCK (1 1/4")
  • 37
    25-33756 RING,SEAL- OIL FILTER TO FILTER VALVE
    RING,SEAL- OIL FILTER TO FILTER VALVE
  • 38
    33168 OIL FILTER ASSEMBLY
    OIL FILTER ASSEMBLY
  • 39
    33987 ELEMENT, OIL FILTER
    ELEMENT, OIL FILTER
  • 40
    35315 COVER ASSEMBLY, CRANKCASE FRONT END
    COVER ASSEMBLY, CRANKCASE FRONT END
  • 41
    26-97335 OIL SEAL, CRANKCASE FRONT END COVER
    OIL SEAL, CRANKCASE FRONT END COVER
  • 42
    27-14250 GASKET,CRANKCASE FRONT END COVER
    GASKET,CRANKCASE FRONT END COVER
  • 43
    10-8M0040582 SCREW, CRANKCASE FRONT END COVER TO CYLINDER (7/16")
    SCREW, CRANKCASE FRONT END COVER TO CYLINDER (7/16")
  • 44
    35333 aBALANCER, HARMONIC -CRANKSHAFT
    aBALANCER, HARMONIC -CRANKSHAFT
  • 45
    33863T PULLEY, CRANKSGAFT BALANCER
    PULLEY, CRANKSGAFT BALANCER
  • 46
    10-34281 BOLT, PULLEY AND HARMONIC BALANCER TO CRANKSHAFT (2")
    SERIAL 00000000-01666599
    BOLT, PULLEY AND HARMONIC BALANCER TO CRANKSHAFT (2")
    SERIAL 00000000-01666599
  • 47
    13-35335 LOCKWASHER, PULLEY AND HARMONIC BALANCER BOLT 1
    LOCKWASHER, PULLEY AND HARMONIC BALANCER BOLT 1
  • 48
    12-35332001 WASHER, PULLEY AND HARMONIC BALANCER BOLT
    WASHER, PULLEY AND HARMONIC BALANCER BOLT
  • 49
    10-35336 BOLT,CRANKSHAFT PULLEY TO HARMONIC BALANCER (5/8")
    SERIAL 00000000-01666599
    BOLT,CRANKSHAFT PULLEY TO HARMONIC BALANCER (5/8")
    SERIAL 00000000-01666599
  • 50
    13-35364 LOCKWASHER, CRANKSHAFT PULLEY BOLT 3
    SERIAL 00000000-01666599
    LOCKWASHER, CRANKSHAFT PULLEY BOLT 3
    SERIAL 00000000-01666599
  • 46
    10-8M2021674 BOLT, PULLEY AND HARMONIC BALANCER TO CRANKSHAFT ( 2 1/2")
    SERIAL 01666600-09999999
    BOLT, PULLEY AND HARMONIC BALANCER TO CRANKSHAFT ( 2 1/2")
    SERIAL 01666600-09999999
  • 49
    10-35786 BOLT, PULLEY AND PILOT EXTENSION TO HARMONIC BALANCER (1")
    SERIAL 01666600-09999999
    BOLT, PULLEY AND PILOT EXTENSION TO HARMONIC BALANCER (1")
    SERIAL 01666600-09999999
  • 50
    13-35048 LOCKWASHER,CRANKSHAFT PULLEY AND PILOT EXTENSION BOLT
    SERIAL 01666600-09999999
    LOCKWASHER,CRANKSHAFT PULLEY AND PILOT EXTENSION BOLT
    SERIAL 01666600-09999999
  • 51
    23-35839 SPACER,CRANKSHAFT PULLEY
    SERIAL 01666600-09999999
    SPACER,CRANKSHAFT PULLEY
    SERIAL 01666600-09999999
  • 52
    35838 PILOT EXTENSION, CRANKSHAFT PULLEY
    SERIAL 01666600-09999999
    PILOT EXTENSION, CRANKSHAFT PULLEY
    SERIAL 01666600-09999999
  • 53
    57-34358 BELT, WATER PUMP DRIVE ( 44")
    BELT, WATER PUMP DRIVE ( 44")
  • 53
    57-34358 BELT, WATER PUMP DRIVE (43")
    BELT, WATER PUMP DRIVE (43")
  • 53
    57-34359 BELT, ALTERNATOR DRIVE (52")
    BELT, ALTERNATOR DRIVE (52")
  • 53
    57-34359 BELT, ALTERNATOR DRIVE (51")
    BELT, ALTERNATOR DRIVE (51")
