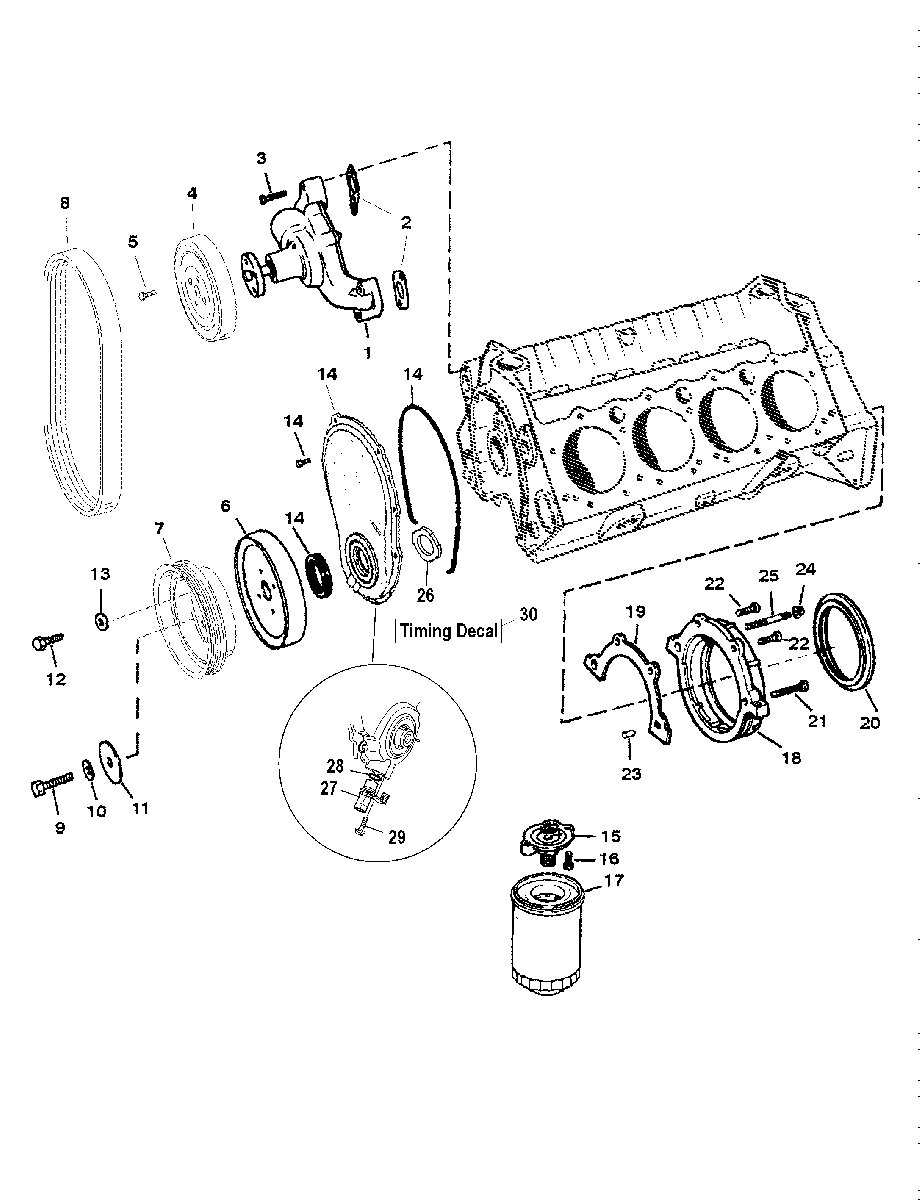

WATER PUMP AND FRONT COVER для Mercruiser - BLACK SCORPION 350 MAG SKI (GEN+) V-8 1997-2001 0K040001 THRU 0M391599

  • №
    Артикул
    Название
  • 1
    46-8M0113734 PUMP ASSEMBLY-WATER
    PUMP ASSEMBLY-WATER
  • 2
    27-34897 GASKET-WATER PUMP
    GASKET-WATER PUMP
  • 3
    10-32132 SCREW
    (3/8-16 X 1-3/4 IN.)
    SCREW
    (3/8-16 X 1-3/4 IN.)
  • 3
    10-47688 SCREW
    (3/8-16 X 2-3/4 IN.)
    SCREW
    (3/8-16 X 2-3/4 IN.)
  • 3
    16-8M0076418 STUD
    STUD
  • 4
    807729T PULLEY-WATER PUMP
    PULLEY-WATER PUMP
  • 5
    10-47277 SCREW (5/16-24 X 3/4 IN.)
    SCREW (5/16-24 X 3/4 IN.)
  • 6
    852946001 HARMONIC BALANCER
    (350)
    HARMONIC BALANCER
    (350)
  • 6
    863397 HARMONIC BALANCER
    (6.2L)
    HARMONIC BALANCER
    (6.2L)
  • 7
    807730T PULLEY-CRANKSHAFT
    PULLEY-CRANKSHAFT
  • 8
    57-807755Q04 BELT-SERPENTINE
    (USE WITH 62MM ALTERNATOR PULLEY)(S/N 0L678036 and Below)
    BELT-SERPENTINE
    (USE WITH 62MM ALTERNATOR PULLEY)(S/N 0L678036 and Below)
  • 8
    57-865615Q05 BELT-SERPENTINE
    (USE WITH 50MM ALTERNATOR PULLEY)(S/N 0L678037 and Up)
    BELT-SERPENTINE
    (USE WITH 50MM ALTERNATOR PULLEY)(S/N 0L678037 and Up)
  • 9
    10-8M2021674 BOLT (7/16-20 X 2-1/2 IN.)
    BOLT (7/16-20 X 2-1/2 IN.)
  • 10
    13-39131 LOCKWASHER
    LOCKWASHER
  • 11
    12-71458 WASHER
    WASHER
  • 12
    10-34352 BOLT (3/8-24 X 7/8 IN.)
    BOLT (3/8-24 X 7/8 IN.)
  • 13
    12-34714 WASHER
    WASHER
  • 14
    835005 TIMING COVER (includes screws, seal and gasket)
    (Without Crankshaft Position Sensor)
    TIMING COVER (includes screws, seal and gasket)
    (Without Crankshaft Position Sensor)
  • 14
    863396001 TIMING COVER (includes screws, seal and gasket)
    (With Crankshaft Position Sensor)
    TIMING COVER (includes screws, seal and gasket)
    (With Crankshaft Position Sensor)
  • 15
    71920 VALVE-FILTER
    VALVE-FILTER
  • 16
    10-54786 SCREW (5/16-18 X 1-1/4 IN.)
    SCREW (5/16-18 X 1-1/4 IN.)
  • 17
    35-866340Q03 FILTER-OIL
    FILTER-OIL
  • 18
    852940 RETAINER-OIL SEAL (REAR)
    RETAINER-OIL SEAL (REAR)
  • 19
    27-881715 GASKET
    GASKET
  • 20
    26-852941 SEAL-OIL (REAR)
    SEAL-OIL (REAR)
  • 21
    10-8M0064241 BOLT (1/4-20 X 1-3/4 IN.)
    BOLT (1/4-20 X 1-3/4 IN.)
  • 22
    10-14242 BOLT (1/4-20 X 7/8 IN.)
    BOLT (1/4-20 X 7/8 IN.)
  • 23
    17-14263 PIN-DOWEL
    PIN-DOWEL
  • 24
    11-8M0098315 NUT (1/4-20)
    NUT (1/4-20)
  • 25
    16-14827 STUD
    STUD
  • 26
    863398 RELUCTOR WHEEL
    RELUCTOR WHEEL
  • 27
    864297T01 SENSOR - CRANKSHAFT POSITION
    SENSOR - CRANKSHAFT POSITION
  • 28
    25-885192 O RING
    O RING
  • 29
    10-884018001 SCREW
    SCREW
  • -
    27-807670A96 GASKET SET-ENGINE OVERHAUL
    GASKET SET-ENGINE OVERHAUL
  • -
    8M0088397 MARINE LONG BLOCK ENGINE
    (350)
    MARINE LONG BLOCK ENGINE
    (350)
  • 862760R01 MARINE LONGBLOCK ENGINE
    (6.2L)(S/N-0L679130 and Below)
    MARINE LONGBLOCK ENGINE
    (6.2L)(S/N-0L679130 and Below)
  • -
    8M0061211 MARINE LONG BLOCK ENGINE
    (6.2L)(S/N-0L679131 and Up)
    MARINE LONG BLOCK ENGINE
    (6.2L)(S/N-0L679131 and Up)
