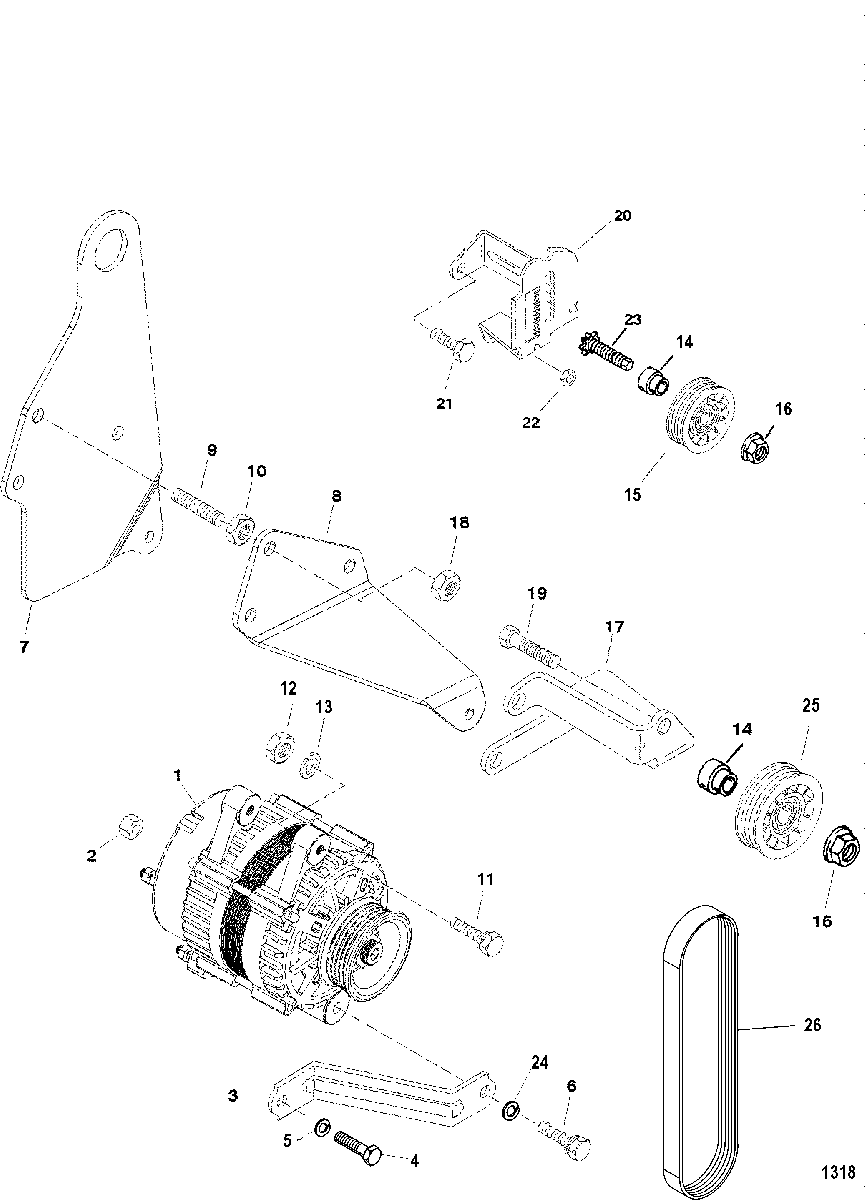

ALTERNATOR AND BRACKETS (DELCO) для Mercruiser - BLACK SCORPION 350 MAG SKI (GEN+) V-8 1997-2001 0K040001 THRU 0M391599

№

Артикул

Название
1

862031T1 ALTERNATOR ASSEMBLY (65 Amp)
(Use W/ 62 MM Pulley)

ALTERNATOR ASSEMBLY (65 Amp)
(Use W/ 62 MM Pulley)
1

863077T ALTERNATOR ASSEMBLY (65 AMP)
(Use W/ 50MM Pulley)(SN-0L678037 and Up)

ALTERNATOR ASSEMBLY (65 AMP)
(Use W/ 50MM Pulley)(SN-0L678037 and Up)
2

11-400212 NUT

NUT
3

807750T BRACE

BRACE
4

10-98261 SCREW (3/8-16 X 3/4 IN.)

SCREW (3/8-16 X 3/4 IN.)
5

13-35048 LOCKWASHER (3/8 IN.)

LOCKWASHER (3/8 IN.)
6

10-40001134 SCREW

SCREW
7

862051T BRACKET-Alternator/Power Steering

BRACKET-Alternator/Power Steering
8

862058T BRACE-Alternator

BRACE-Alternator
9

16-862615 STUD (3/8-16 X 2-1/4 IN.)

STUD (3/8-16 X 2-1/4 IN.)
10

11-32219 NUT (3/8-16)

NUT (3/8-16)
11

10-828213 SCREW (5/16-18 X 1-1/2 IN.)

SCREW (5/16-18 X 1-1/2 IN.)
13

12-57792 WASHER

WASHER
14

865193 BUSHING

BUSHING
15

807757T PULLEY (3 IN. Dia.)

PULLEY (3 IN. Dia.)
16

11-859135 NUT (7/16-20)

NUT (7/16-20)
17

807753T1 BRACKET - Idler

BRACKET - Idler
18

11-32219 NUT (3/8-16)

NUT (3/8-16)
19

10-816601 SCREW (7/16-20 X 1-1/2 IN.)

SCREW (7/16-20 X 1-1/2 IN.)
20

807767T IDLER BRACKET

IDLER BRACKET
21

10-98261 SCREW (3/8-16 x 3/4 IN.)

SCREW (3/8-16 x 3/4 IN.)
22

11-29250 NUT (5/16-24)

NUT (5/16-24)
23

43-8M0113182 PINION STUD

PINION STUD
24

12-20084 WASHER

WASHER
25

807757T PULLEY
(3 IN. DIA.)

PULLEY
(3 IN. DIA.)
25

864625T PULLEY
(4-1/4 IN. DIA.)

PULLEY
(4-1/4 IN. DIA.)
26

57-807755Q04 BELT-Serpentine
(Use W/62 MM Pulley)

BELT-Serpentine
(Use W/62 MM Pulley)
26

57-865615Q05 BELT-Serpentine
(Use W/50 MM Pulley)

BELT-Serpentine
(Use W/50 MM Pulley)
