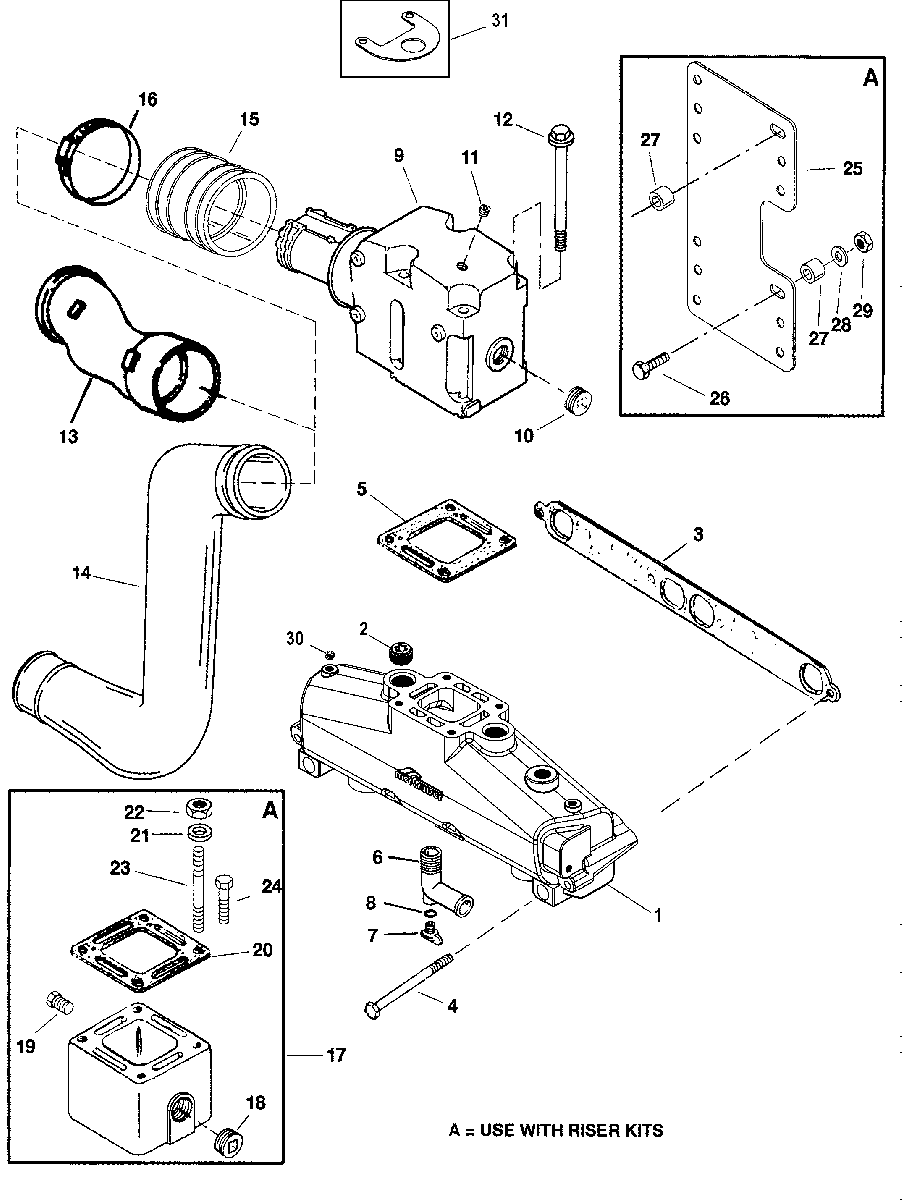

EXHAUST MANIFOLD & EXHAUST ELBOW для Mercruiser - BLACK SCORPION 350 MAG SKI (GEN+) V-8 1997-2001 0K040001 THRU 0M391599

  • №
    Артикул
    Название
  • 1
    860246A15 MANIFOLD ASSEMBLY-EXHAUST
    MANIFOLD ASSEMBLY-EXHAUST
  • 2
    22-428611 PLUG-PIPE (3/4-14)
    PLUG-PIPE (3/4-14)
  • 3
    27-33395 GASKET
    GASKET
  • 4
    10-53728 SCREW (3/8-16 X 4-5/8 IN.)
    SCREW (3/8-16 X 4-5/8 IN.)
  • 5
    27-863724 GASKET
    GASKET
  • 6
    22-862210A01 ELBOW-DRAIN
    ELBOW-DRAIN
  • 7
    22-8M0119211 PLUG-DRAIN
    PLUG-DRAIN
  • 8
    25-62706 QUAD RING
    QUAD RING
  • 9
    807988A03 ELBOW ASSEMBLY-EXHAUST
    ELBOW ASSEMBLY-EXHAUST
  • 10
    22-428611 PLUG-PIPE (3/4-14)
    PLUG-PIPE (3/4-14)
  • 11
    22-73379 PLUG-PIPE (1/4-18)
    (COMPONENT OF 807988A2 ELBOW)
    PLUG-PIPE (1/4-18)
    (COMPONENT OF 807988A2 ELBOW)
  • 12
    10-43749 SCREW (3/8-16 X 5-3/4 IN.)
    (350)
    SCREW (3/8-16 X 5-3/4 IN.)
    (350)
  • 12
    10-43749 SCREW (3/8-16 X 5-3/4 IN.)
    (6.2L)
    SCREW (3/8-16 X 5-3/4 IN.)
    (6.2L)
  • 12
    10-44387 SCREW (3/8-16 X 6-3/4)
    (6.2L)
    SCREW (3/8-16 X 6-3/4)
    (6.2L)
  • 13
    807153T PIPE-EXHAUST
    (STANDARD)
    PIPE-EXHAUST
    (STANDARD)
  • 14
    807611T PIPE-EXHAUST
    (OPTIONAL)
    PIPE-EXHAUST
    (OPTIONAL)
  • 15
    32-44348001 TUBE-EXHAUST
    TUBE-EXHAUST
  • 16
    54-815504272 CLAMP
    CLAMP
  • 17
    93320A13 RISER EXTENSION KIT (3,)
    (EACH KIT CONTAINS 2 RISERS)
    RISER EXTENSION KIT (3,)
    (EACH KIT CONTAINS 2 RISERS)
  • 17
    93322A12 RISER EXTENSION KIT (6,)
    (EACH KIT CONTAINS 2 RISERS)
    RISER EXTENSION KIT (6,)
    (EACH KIT CONTAINS 2 RISERS)
  • 18
    22-416223 PLUG-PIPE (3/4-14)
    PLUG-PIPE (3/4-14)
  • 19
    22-328022 PLUG-PIPE (1/8-27)
    PLUG-PIPE (1/8-27)
  • 20
    27-863726 GASKET
    GASKET
  • 21
    12-46132 WASHER
    (USE WITH 3 IN. RISER)
    WASHER
    (USE WITH 3 IN. RISER)
  • 22
    11-46335 NUT (3/8-24)
    (USE WITH 3 IN. RISER)
    NUT (3/8-24)
    (USE WITH 3 IN. RISER)
  • 23
    16-8M0022137 STUD (3/8 X 9-3/8 IN.)
    (USE WITH 3 IN. RISER)
    STUD (3/8 X 9-3/8 IN.)
    (USE WITH 3 IN. RISER)
  • 24
    10-865982005 SCREW (3/8-16 X 1 IN.)
    (USE WITH 6 IN. RISER)
    SCREW (3/8-16 X 1 IN.)
    (USE WITH 6 IN. RISER)
  • 25
    818598T BRACKET-RISER
    (USE WITH 6 IN. RISER)
    BRACKET-RISER
    (USE WITH 6 IN. RISER)
  • 26
    10-76596 SCREW (1/4-20 X 1-1/4 IN.)
    (USE WITH 6 IN. RISER)
    SCREW (1/4-20 X 1-1/4 IN.)
    (USE WITH 6 IN. RISER)
  • 27
    23-806981 SPACER
    (USE WITH 6 IN. RISER)
    SPACER
    (USE WITH 6 IN. RISER)
  • 28
    12-35462 WASHER
    (USE WITH 6 IN. RISER)
    WASHER
    (USE WITH 6 IN. RISER)
  • 29
    11-64015 NUT (1/4-20)
    (USE WITH 6 IN. RISER)
    NUT (1/4-20)
    (USE WITH 6 IN. RISER)
  • 30
    22-384071 PIPE PLUG (1/2-14)
    PIPE PLUG (1/2-14)
  • 31
    861242 BRACKET
    (6.2L)
    BRACKET
    (6.2L)
  • -
    27-807670A96 GASKET SET-ENGINE OVERHAUL
    GASKET SET-ENGINE OVERHAUL
