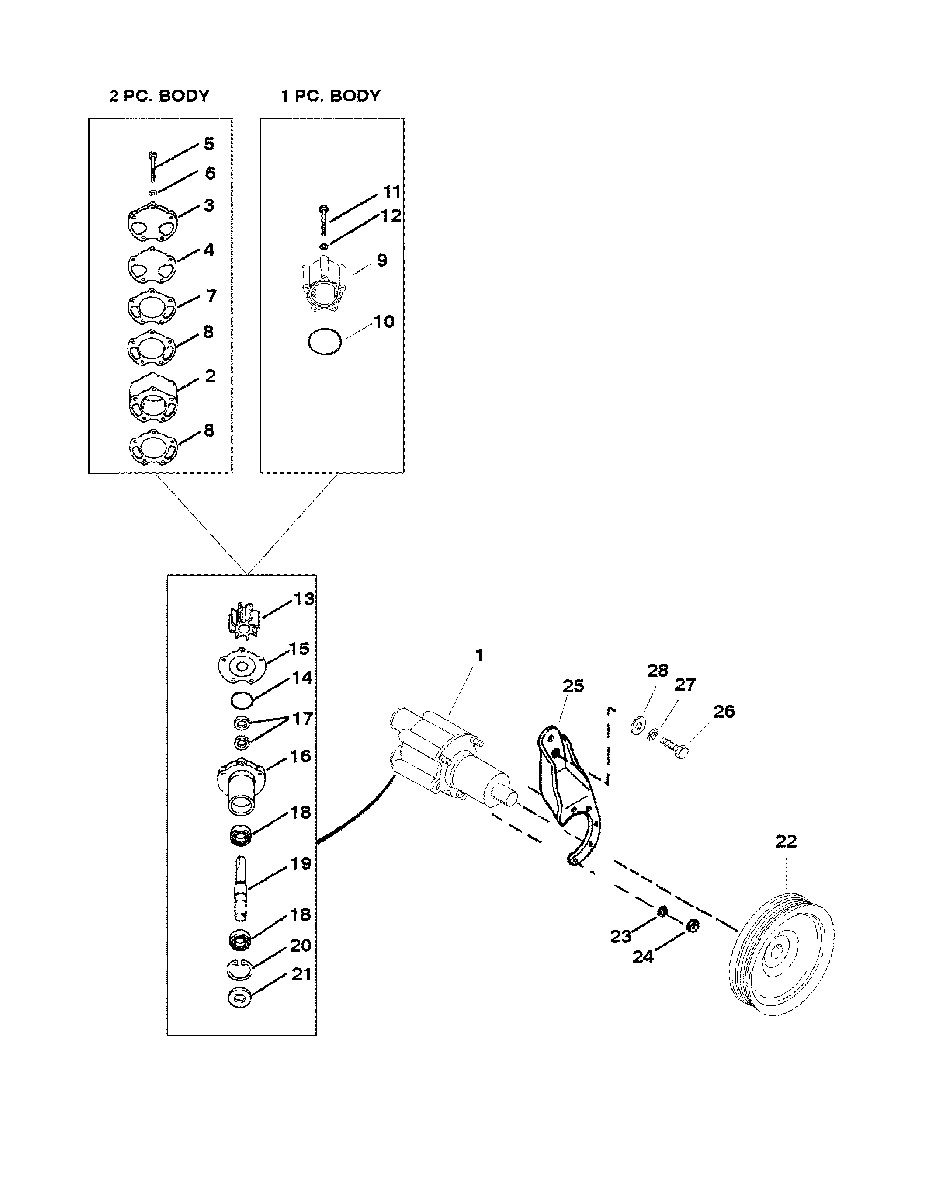

SEA WATER PUMP ASSEMBLY для Mercruiser - BLACK SCORPION 350 MAG SKI (GEN+) V-8 1997-2001 0K040001 THRU 0M391599

  • №
    Артикул
    Название
  • 1
    46-807151A9 PUMP ASSEMBLY-SEAWATER
    (ONE PIECE BODY)
    PUMP ASSEMBLY-SEAWATER
    (ONE PIECE BODY)
  • 2
    46-72774A40 BODY
    (SEE MCM PARTS BULLETIN #96-8) (TWO PIECE BODY)
    BODY
    (SEE MCM PARTS BULLETIN #96-8) (TWO PIECE BODY)
  • 3
    87631A4 COVER
    (TWO PIECE BODY)
    COVER
    (TWO PIECE BODY)
  • 4
    27-8052151 GASKET
    (TWO PIECE BODY)
    GASKET
    (TWO PIECE BODY)
  • 5
    10-73275 SCREW (5/16-18 X 2-7/8 IN.)
    (TWO PIECE BODY)
    SCREW (5/16-18 X 2-7/8 IN.)
    (TWO PIECE BODY)
  • 5
    10-99347 SCREW (5/16-18 X 3-3/4 IN.)
    (TWO PIECE BODY)
    SCREW (5/16-18 X 3-3/4 IN.)
    (TWO PIECE BODY)
  • 6
    12-20084 WASHER
    (TWO PIECE BODY)
    WASHER
    (TWO PIECE BODY)
  • 7
    94916 PLATE-WEAR (OUTER)
    (TWO PIECE BODY)
    PLATE-WEAR (OUTER)
    (TWO PIECE BODY)
  • 8
    27-94914 GASKET
    (TWO PIECE BODY)
    GASKET
    (TWO PIECE BODY)
  • 9
    46-807151A14 BODY & IMPELLER KIT-WATER PUMP
    (ONE PIECE BODY)
    BODY & IMPELLER KIT-WATER PUMP
    (ONE PIECE BODY)
  • 10
    25-33465 QUAD RING
    (ONE PIECE BODY)
    QUAD RING
    (ONE PIECE BODY)
  • 11
    10-807356 SCREW (5/16-18 X 2-5/8 IN.)
    (ONE PIECE BODY)
    SCREW (5/16-18 X 2-5/8 IN.)
    (ONE PIECE BODY)
  • 11
    10-74822 SCREW (5/16-18 X 3-1/2 IN.)
    (ONE PIECE BODY)
    SCREW (5/16-18 X 3-1/2 IN.)
    (ONE PIECE BODY)
  • 12
    12-814806 WASHER
    (ONE PIECE BODY)
    WASHER
    (ONE PIECE BODY)
  • 13
    47-59362T1 IMPELLER
    IMPELLER
  • 14
    25-94288 QUAD RING
    QUAD RING
  • 15
    94576 PLATE-WEAR (INNER)
    PLATE-WEAR (INNER)
  • 16
    46-94913A5 HOUSING ASSEMBLY-PUMP
    HOUSING ASSEMBLY-PUMP
  • 17
    26-90562 SEAL-OIL
    SEAL-OIL
  • 18
    30-72961 BEARING-BALL
    BEARING-BALL
  • 19
    59501A1 SHAFT
    SHAFT
  • 20
    53-23720 RING-RETAINER
    RING-RETAINER
  • 21
    26-72785 SEAL-OIL
    SEAL-OIL
  • 22
    861579 PULLEY
    PULLEY
  • 23
    13-39107 LOCKWASHER
    (5/16 IN.)
    LOCKWASHER
    (5/16 IN.)
  • 23
    13-400247 LOCKWASHER
    (8MM)
    LOCKWASHER
    (8MM)
  • 24
    11-21908 NUT (5/16-18)
    NUT (5/16-18)
  • 25
    8077491 BRACKET
    BRACKET
  • 26
    10-34353 SCREW (3/8-16 X 1 IN.)
    SCREW (3/8-16 X 1 IN.)
  • 27
    13-35048 LOCKWASHER (3/8 IN.)
    LOCKWASHER (3/8 IN.)
  • 28
    12-34714 WASHER
    WASHER
